SEAT BELT

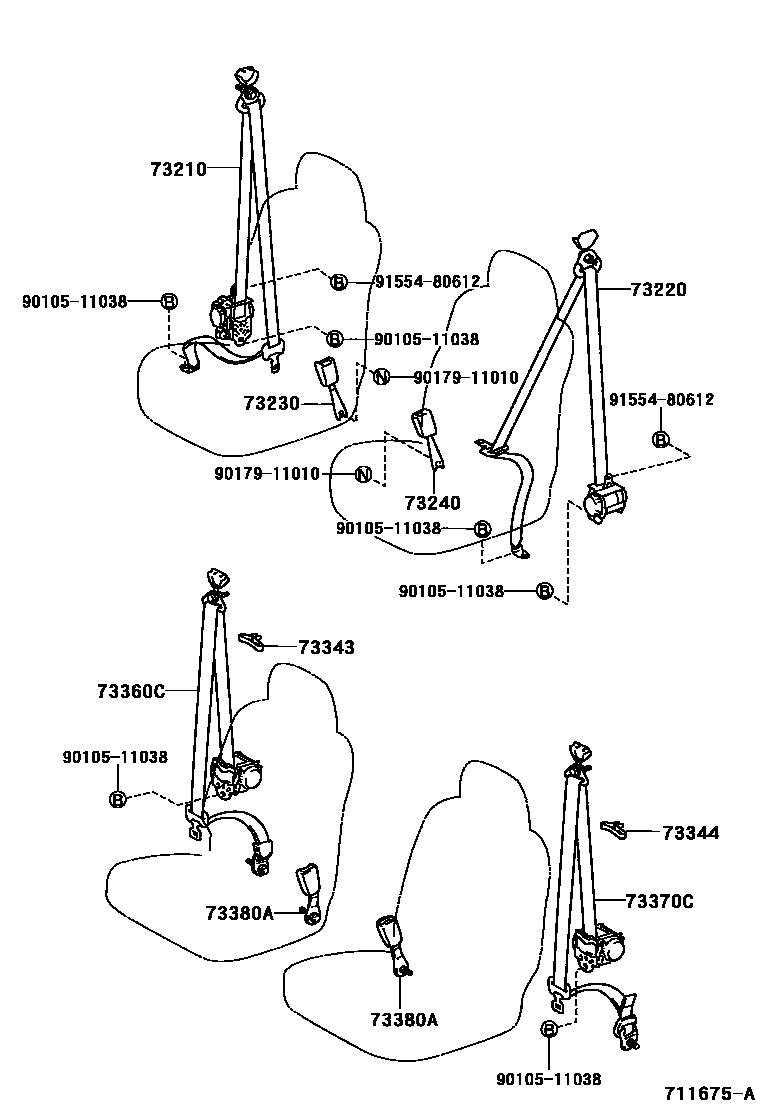

Parts diagram
73210BELT ASSY, FRONT SEAT OUTER, RH
main73210-42220-B0i200005-200104
BLUISH GRAY,TRIM1#
sub73210-42221
main73210-42220-E0i200005-200104
FAWN,TRIM4#
sub73210-42221
main73210-42221-B0i200104-200108
BLUISH GRAY,TRIM1#
sub73210-42221
main73210-42221-E0i200104-200108
FAWN,TRIM4#
sub73210-42221
main73210-42260-B0i200005-200104
BLUISH GRAY,TRIM1#
sub73210-42261
main73210-42260-B0i200005-200104
BLUISH GRAY,TRIM14,15
sub73210-42261
main73210-42261-B0i200104-200108
BLUISH GRAY,TRIM14,15
main73210-42261-B0i200104-200108
BLUISH GRAY,TRIM1#
main73210-42280-B0i200108-200307
BLUISH GRAY,TRIM1#
sub73210-42280
main73210-42280-E0i200108-200307
FAWN,TRIM4#
sub73210-42280
main73210-42281-C1i200307-200511
BLACK,TRIM1#
main73210-42290-B0i200108-200307
BLUISH GRAY,TRIM1#
main73210-42290-B0i200108-200307
BLUISH GRAY,TRIM14,15
main73210-42291-C1i200307-200511
BLACK,TRIM1#
73220BELT ASSY, FRONT SEAT OUTER, LH
main73220-42220-B0i200005-200104
BLUISH GRAY,TRIM1#
sub73220-42221
main73220-42220-E0i200005-200104
FAWN,TRIM4#
sub73220-42221
main73220-42221-B0i200104-200108
BLUISH GRAY,TRIM1#
sub73220-42221
main73220-42221-E0i200104-200108
FAWN,TRIM4#
sub73220-42221
main73220-42260-B0i200005-200104
BLUISH GRAY,TRIM1#
sub73220-42261
main73220-42260-B0i200005-200104
BLUISH GRAY,TRIM14,15
sub73220-42261
main73220-42261-B0i200104-200108
BLUISH GRAY,TRIM14,15
main73220-42261-B0i200104-200108
BLUISH GRAY,TRIM1#
main73220-42280-B0i200108-200307
BLUISH GRAY,TRIM1#
sub73220-42280
main73220-42280-E0i200108-200307
FAWN,TRIM4#
sub73220-42280
main73220-42281-C1i200307-200511
BLACK,TRIM1#
main73220-42290-B0i200108-200307
BLUISH GRAY,TRIM1#
main73220-42290-B0i200108-200307
BLUISH GRAY,TRIM14,15
main73220-42291-C1i200307-200511
BLACK,TRIM1#
73230BELT ASSY, FRONT SEAT INNER, RH
main73230-42070-B0i200005-200307
BLUE GRAY,TRIM1#
sub73230-42070
main73230-42070-B0i200005-200307
BLUE GRAY,TRIM14,15
sub73230-42070
main73230-42070-E0i200005-200307
FAWN,TRIM4#
sub73230-42070
main73230-42071-B1i200307-200511
DK.GRAY,TRIM1#
73240BELT ASSY, FRONT SEAT INNER, LH
main73230-42080-B0i200005-200307
BLUE GRAY,TRIM1#
sub73230-42080
main73230-42080-B0i200005-200307
BLUE GRAY,TRIM14,15
sub73230-42080
main73230-42080-E0i200005-200307
FAWN,TRIM4#
sub73230-42080
main73230-42081-B1i200307-200511
DK.GRAY,TRIM1#
73343GUIDE, REAR SEAT SHOULDER BELT, RH
main73343-42010i200005-200511
73344GUIDE, REAR SEAT SHOULDER BELT, LH
main73343-42010i200005-200511
73360CBELT ASSY, REAR NO.1 SEAT, OUTER RH
main73360-42140-B0i200005-200307
BLUISH GRAY,TRIM1#
sub73360-42140
main73360-42140-E0i200005-200307
FAWN,TRIM4#
sub73360-42140
main73360-42141-C2i200307-200511
BLACK,TRIM1#
main73360-42160-B0i200005-200307
BLUISH GRAY,TRIM14,15
main73360-42160-B0i200005-200307
BLUISH GRAY,TRIM1#
main73360-42161-C1i200307-200511
BLACK,TRIM1#
73370CBELT ASSY, REAR NO.1 SEAT, OUTER LH
main73360-42160-B0i200005-200307
BLUISH GRAY,TRIM1#
main73360-42160-B0i200005-200307
BLUISH GRAY,TRIM14,15
main73360-42161-C1i200307-200511
BLACK,TRIM1#
main73370-42140-B0i200005-200307
BLUISH GRAY,TRIM1#
sub73370-42140
main73370-42140-E0i200005-200307
FAWN,TRIM4#
sub73370-42140
main73370-42141-C2i200307-200511
BLACK,TRIM1#
73380ABELT ASSY, REAR SEAT, INNER
main73380-42050-B0i200005-200307
BLUISH GRAY,TRIM1#
sub73380-42050
main73380-42050-E0i200005-200307
FAWN,TRIM4#
sub73380-42050
main73380-42051-C1i200307-200511
BLACK,TRIM1#
main73380-42060-B0i200005-200307
BLUE GRAY,TRIM1#
main73380-42060-B0i200005-200307
BLUE GRAY,TRIM14,15
main73380-42061-B1i200307-200511
DK.GRAY,TRIM1#
9010511038
main90105-11038
9017911010
main90179-11010
9155480612
main91554-80612

12 parts on this diagram · 4 diagrams in section
