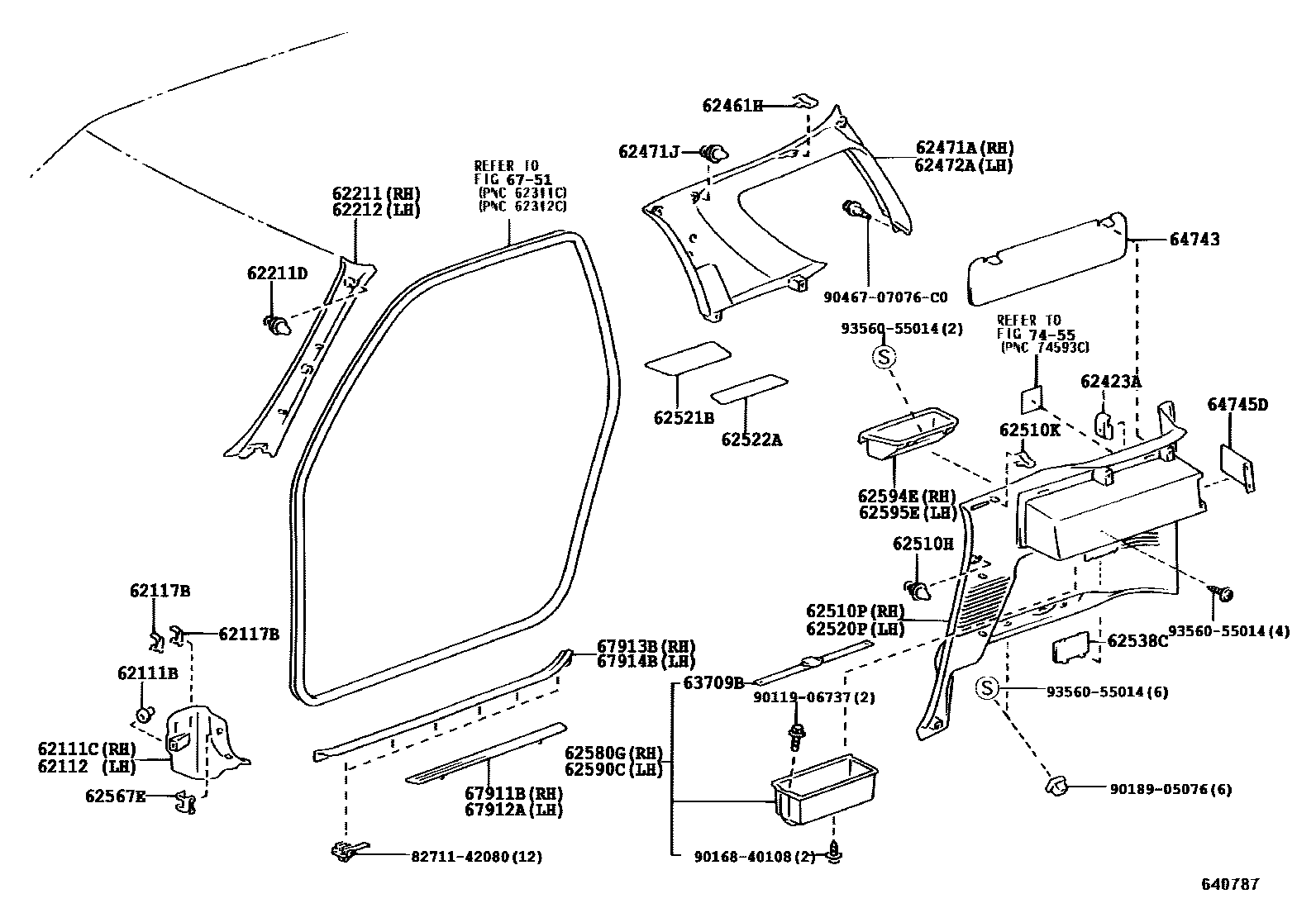

INSIDE TRIM BOARD

0001 1 0002 1 0003 1 0004 1

62111BCLIP(FOR COWL SIDE TRIM)

main90467-06094×2iACA2#,ZCA2#200005-200307

62111CBOARD, COWL SIDE TRIM, RH

main62111-42030-B0iACA21,ZCA26;ACA20,ZCA25..AERO200005-200208

BLUE GRAY,TRIM1#

main62111-42030-E0iACA21,ZCA26..WIDE,X200005-200208

FAWN,TRIM4#

main62111-42031-B0iACA21,ZCA26;ACA20,ZCA25..AERO200208-200307

BLUE GRAY,TRIM1#

main62111-42031-B1iACA2#,ZCA2#200307-200511

DK.GRAY,TRIM1#

main62111-42031-E0iACA21,ZCA26..WIDE,X200208-200307

FAWN,TRIM4#

62112BOARD, COWL SIDE TRIM, LH

main62112-42030-B0iACA21,ZCA26;ACA20,ZCA25..AERO200005-200208

BLUE GRAY,TRIM1#

main62112-42030-E0iACA21,ZCA26..WIDE,X200005-200208

FAWN,TRIM4#

main62112-42031-B0iACA21,ZCA26;ACA20,ZCA25..AERO200208-200307

BLUE GRAY,TRIM1#

main62112-42031-B1iACA2#,ZCA2#200307-200511

DK.GRAY,TRIM1#

main62112-42031-E0iACA21,ZCA26..WIDE,X200208-200307

FAWN,TRIM4#

62117BCLIP, NO.1(FOR COWL SIDE TRIM)

main90468-25003×2iACA2#,ZCA2#200307

62211GARNISH, FRONT PILLAR, RH

main62210-42010-B0iACA2#,ZCA2#200307-200511

NEW GRAY,TRIM1#

main62210-42020-B0iACA2#,ZCA2#200307-200511

main62215-42030-B0iACA21,ZCA26;ACA20,ZCA25..AERO200005-200307

BLUE GRAY,TRIM1#

main62215-42030-E0iACA21,ZCA26..WIDE,X200005-200307

FAWN,TRIM4#

62211DCLIP(FOR FRONT BODY PILLAR GARNISH)

main90467-10161×4iACA2#,ZCA2#200005-200307

62212GARNISH, FRONT PILLAR, LH

main62216-42030-B0iACA21,ZCA26;ACA20,ZCA25..AERO200005-200307

BLUE GRAY,TRIM1#

main62216-42030-E0iACA21,ZCA26..WIDE,X200005-200307

FAWN,TRIM4#

main62220-42010-B0iACA2#,ZCA2#200307-200511

NEW GRAY,TRIM1#

main62220-42020-B0iACA2#,ZCA2#200307-200511

62423AHOOK, SIDE WINDOW GARNISH

main62423-42010-B0×2iACA21,ZCA26;ACA20,ZCA25..AERO200005-200307

BLUE GRAY,TRIM1#

main62423-42010-B1×2iACA21,ZCA26200405-200511

DK.GRAY,TRIM1#

main62423-42010-E0×2iACA21,ZCA26..WIDE,X200005-200307

FAWN,TRIM4#

62461HCLIP (FOR ROOF SIDE INNER GARNISH)

main90468-05077×2iACA2#,ZCA2#200005-200307

62471AGARNISH, ROOF SIDE, INNER RH

main62470-42080-B0iACA21,ZCA26200307-200511

NEW GRAY,TRIM1#

main62471-42010-B0iACA21,ZCA26200005-200307

BLUE GRAY,TRIM1#

main62471-42010-E0iACA21,ZCA26..WIDE,X200005-200307

FAWN,TRIM4#

main62471-42020-B0iACA20,ZCA25..WIDE,X200005-200307

BLUE GRAY,TRIM1#

main62550-42010-B0iACA20,ZCA25200307-200511

NEW GRAY,TRIM1#

62471JCLIP (FOR ROOF SIDE GARNISH)

main90467-10161×10iACA20,ZCA25200005-200307

62472AGARNISH, ROOF SIDE, INNER LH

main62472-42010-B0iACA21,ZCA26200005-200307

BLUE GRAY,TRIM1#

main62472-42010-E0iACA21,ZCA26..WIDE,X200005-200307

FAWN,TRIM4#

main62472-42020-B0iACA20,ZCA25..WIDE,X200005-200307

BLUE GRAY,TRIM1#

main62480-42080-B0iACA21,ZCA26200307-200511

NEW GRAY,TRIM1#

main62560-42010-B0iACA20,ZCA25200307-200511

NEW GRAY,TRIM1#

62510HCLIP(FOR QUARTER TRIM FRONT PANEL)

main90467-10161×14iACA20,ZCA25200005-200307

62510KCLIP(FOR QUARTER TRIM FRONT PANEL)

main90468-05077×4iACA2#,ZCA2#200005-200307

62510PPANEL ASSY, QUARTER TRIM, FRONT RH

main62511-42020-B0iACA20,ZCA25..WIDE,X200005-200307

BLUE GRAY,TRIM1#

main62511-42020-B1iACA20,ZCA25200307-200309

DK.GRAY,TRIM1#

main62511-42030-B0iACA20,ZCA25200309-200511

DK.GRAY,TRIM1#

62520PPANEL ASSY, QUARTER TRIM, FRONT LH

main62512-42020-B0iACA20,ZCA25..WIDE,X200005-200105

BLUE GRAY,TRIM1#

sub74593-42010

main62512-42030-B0iACA20,ZCA25..WIDE,X200105-200307

BLUE GRAY,TRIM1#

main62512-42030-B1iACA20,ZCA25200307-200309

DK.GRAY,TRIM1#

main62512-42040-B0iACA20,ZCA25200309-200511

DK.GRAY,TRIM1#

62521BCOVER, QUARTER TRIM, RH

main62521-42010iACA20,ZCA25200005-200307

62522ACOVER, QUARTER TRIM, LH

main62522-42010iACA20,ZCA25200005-200307

62538CCOVER, QUARTER TRIM, HOLE

main62538-42020-B0×2iACA20,ZCA25..WIDE,X200005-200307

BLUE GRAY,TRIM1#

main62538-42020-B1×2iACA20,ZCA25200307-200511

DK.GRAY,TRIM1#

62567ECLAMP, ROCKER PANEL INNER PROTECTOR, NO.2

main62567-21010×4iACA2#,ZCA2#200005-200307

62580GBOX ASSY, SIDE TRIM, RH

main62580-42030iACA20,ZCA25200005-200307

62590CBOX ASSY, SIDE TRIM, LH

main62590-42030iACA20,ZCA25200307

62594EPOCKET, QUARTER TRIM, RH

main62594-42030-B0iACA20,ZCA25..WIDE,X200005-200307

BLUE GRAY,TRIM1#

main62594-42030-B1iACA20,ZCA25200307-200511

DK.GRAY,TRIM1#

62595EPOCKET, QUARTER TRIM, LH

main62595-42030-B0iACA20,ZCA25..WIDE,X200005-200307

BLUE GRAY,TRIM1#

main62595-42030-B1iACA20,ZCA25200307-200511

DK.GRAY,TRIM1#

63709BBAND SUB-ASSY, ROOM RACK

main63709-42011×2iACA20,ZCA25200005-200307

main63709-42030×2iACA21,ZCA26200005-200307

64743COVER, SIDE TRIM TOOL BAG

main64743-42010-B0×2iACA21,ZCA26200005-200307

BLUE GRAY,TRIM1#

main64743-42010-B1×2iACA21,ZCA26200307-200408

DK.GRAY,TRIM1#

main64743-42010-E0×2iACA21,ZCA26..WIDE,X200005-200307

FAWN,TRIM4#

main64743-42011-B1×2iACA21,ZCA26200409-200511

DK.GRAY,TRIM1#

main64743-42020-B0×2iACA20,ZCA25..WIDE,X200005-200307

BLUE GRAY,TRIM1#

main64743-42020-B1×2iACA20,ZCA25200307-200511

DK.GRAY,TRIM1#

64745DCOVER, REAR COMBINATION LAMP SERVICE, RH

main64745-42010×2iACA21,ZCA26200005-200307

sub64745-42011

main64745-42020iACA20,ZCA25200005-200307

6751

67911BPLATE, FRONT DOOR SCUFF, OUTSIDE, RH

main67911-42010iACA21,ZCA26200307-200511

sub67911-42011

main67911-42020iACA20,ZCA25200307-200511

sub67911-42021

67912APLATE, FRONT DOOR SCUFF, OUTSIDE LH

main67911-42010iACA21,ZCA26200307

sub67911-42011

main67912-42010iACA20,ZCA25200005-200307

67913BPLATE, FRONT DOOR SCUFF, RH

main67913-42060-B0iACA21,ZCA26200005-200307

BLUE GRAY,TRIM1#

main67913-42060-E0iACA21,ZCA26..WIDE,X200005-200307

FAWN,TRIM4#

main67913-42070-B0iACA20,ZCA25..WIDE,X200005-200307

BLUE GRAY,TRIM1#

main67913-42070-B1iACA20,ZCA25200307-200511

DK.GRAY,TRIM1#

main67913-42080-B0iACA21,ZCA26200307-200511

DK.GRAY,TRIM1#

67914BPLATE, FRONT DOOR SCUFF, LH

main67914-42060-B0iACA21,ZCA26200005-200307

BLUE GRAY,TRIM1#

main67914-42060-E0iACA21,ZCA26..WIDE,X200005-200307

FAWN,TRIM4#

main67914-42070-B0iACA20,ZCA25..WIDE,X200005-200307

BLUE GRAY,TRIM1#

main67914-42070-B1iACA20,ZCA25200307-200511

DK.GRAY,TRIM1#

main67914-42080-B0iACA21,ZCA26200307-200511

DK.GRAY,TRIM1#

7455

8271142080WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-42080

9011906737

main90119-06737

9016840108

main90168-40108

9018905076

main90189-05076

9046707076C0

main90467-07076C0

9356055014

main93560-55014

39 parts on this diagram · 4 diagrams in section
