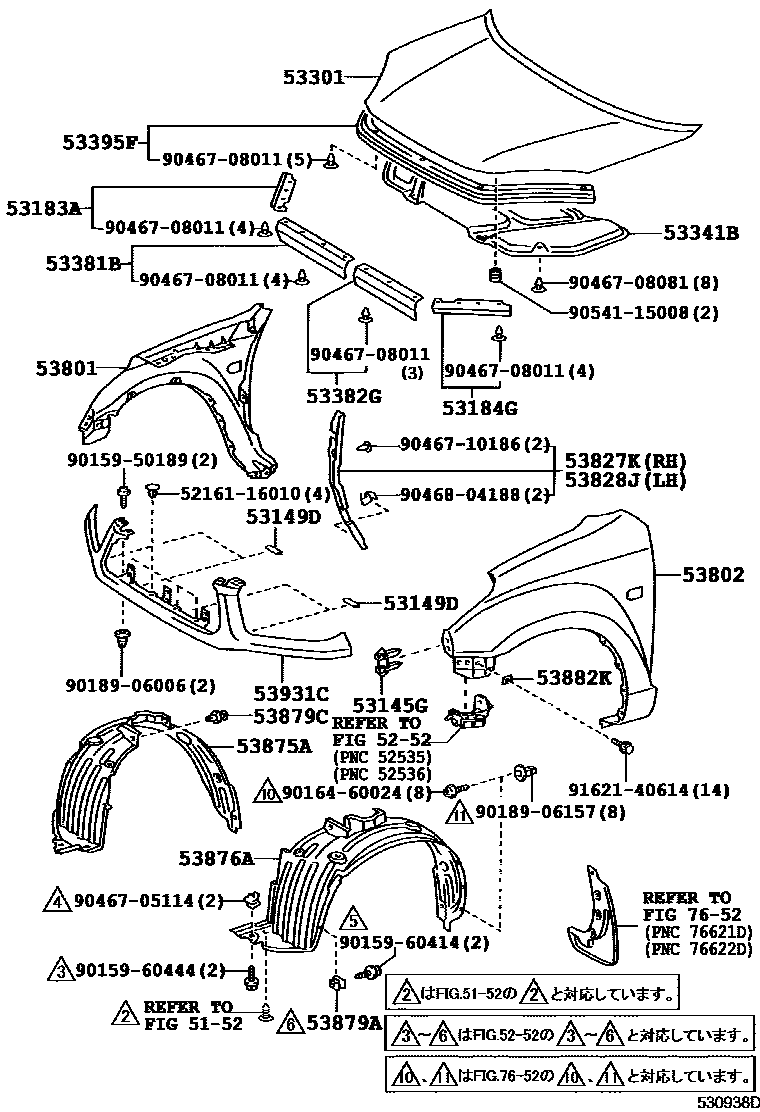

HOOD & FRONT FENDER

0001 1 0002 1

5152

5252

53145GCLIP, RADIATOR GRILLE

main53145-42010×2iACA2#,ZCA2#200005-200307

53149DPROTECTOR, RADIATOR GRILLE, NO.2

main53149-46010×4iACA2#,ZCA2#200005-200112

53183ASEAL, HEADLAMP COVER, RH

main53183-42010iACA2#,ZCA2#200005-200307

main53183-42020iACA2#,ZCA2#200307

53184GSEAL, HEADLAMP COVER, LH

main53184-42010iACA2#,ZCA2#200005-200307

main53184-42020iACA2#,ZCA2#200307

53301HOOD SUB-ASSY

main53301-42030iACA2#,ZCA2#200005-200307

53341BINSULATOR, HOOD

main53341-42020iACA2#200005-200301

main53341-42021iACA2#200301-200307

53381BSEAL, HOOD TO RADIATOR SUPPORT, RH

main53381-42020iACA2#,ZCA2#200005-200307

53382GSEAL, HOOD TO RADIATOR SUPPORT, LH

main53382-42010iACA2#,ZCA2#200005-200307

53395FSEAL, HOOD TO RADIATOR GRILLE

main53395-42010iACA2#,ZCA2#200005-200307

main53395-42011iACA2#,ZCA2#200307

53801FENDER SUB-ASSY, FRONT RH

main53811-42150iACA2#,ZCA2#..AERO,X200005-200307

main53811-42160iACA2#..WIDE200005-200307

main53811-42190iACA2#,ZCA2#..X200307-200511

main53811-42200iACA2#..WIDE200307-200511

53802FENDER SUB-ASSY, FRONT LH

main53802-42120iACA2#,ZCA2#..AERO,X200005-200307

main53802-42130iACA2#..WIDE200005-200307

main53802-42140iACA2#,ZCA2#..X200307-200511

main53802-42150iACA2#..WIDE200307-200511

53827KPROTECTOR, FRONT FENDER SIDE PANEL, RH

main53827-42030iACA2#,ZCA2#200005-200111

main53827-42031iACA2#,ZCA2#200111-200307

53828JPROTECTOR, FRONT FENDER SIDE PANEL, LH

main53828-42040iACA2#,ZCA2#200005-200111

main53828-42041iACA2#,ZCA2#200111-200307

53875ALINER, FRONT FENDER, RH

main53875-42050iACA2#,ZCA2#200005-200102

sub90467-10005

main53875-42051iACA2#,ZCA2#200102-200307

53876ALINER, FRONT FENDER, LH

main53876-42050iACA2#,ZCA2#200005-200102

sub90467-10005

main53876-42051iACA2#,ZCA2#200102-200307

53879ARETAINER, FRONT FENDER LINER

main53879-44010×2iACA2#,ZCA2#200005-200307

53879CRETAINER, FRONT FENDER LINER

main53879-60010×16iACA2#,ZCA2#200005-200307

53882KSEAL, FRONT FENDER

main53882-16030×6iACA2#,ZCA2#200005-200208

53931CPANEL, FRONT END

main53931-42020iACA2#,ZCA2#200005-200307

main53931-42030iACA2#,ZCA2#200307-200511

7652

5216116010CUSHION, REAR BUMPER GUARD, NO.1

main52161-16010

9015950189

main90159-50189

9015960414

main90159-60414

9015960444

main90159-60444

9016460024

main90164-60024

9018906006

main90189-06006

9018906157

main90189-06157

9046705114

main90467-05114

9046708011

main90467-08011

9046708081

main90467-08081

9046710186

main90467-10186

9046804188

main90468-04188

9054115008

main90541-15008

9162140614

main91621-40614

36 parts on this diagram · 2 diagrams in section
