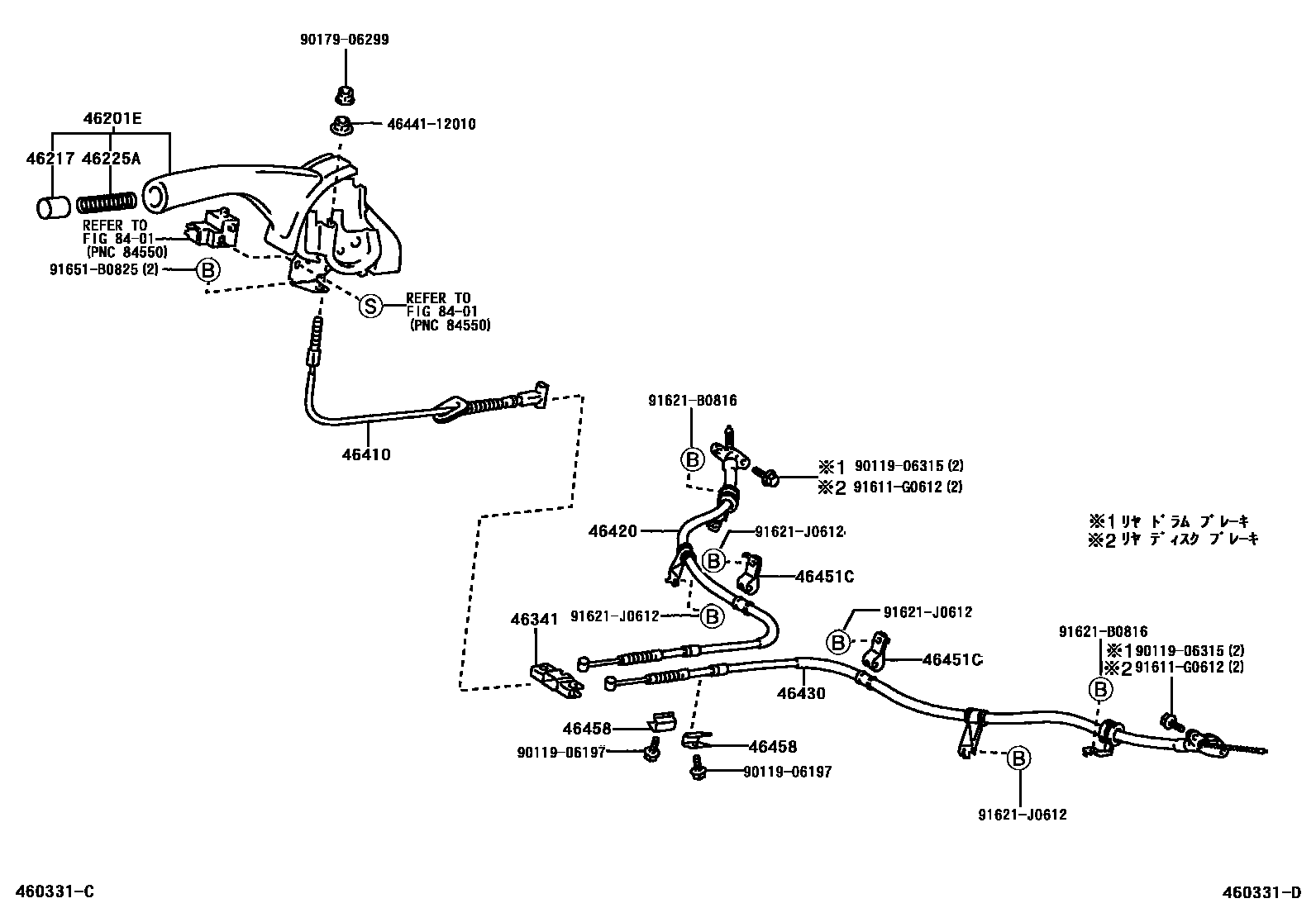

PARKING BRAKE & CABLE

0001 1 0002 1 0003 1��(�� ����� ���-�)

46201ELEVER SUB-ASSY, PARKING BRAKE

main46201-42060-C0iACA2#,ZCA2#..AERO200005-200511

BLACK,TRIM1#

main46201-42060-C0iACA2#,ZCA2#..AERO200005-200307

BLACK,TRIM1#,4#

main46201-42060-C0iACA2#,ZCA2#..AERO200005-200307

BLACK,TRIM14,15

46217KNOB, PARKING BRAKE RELEASE ROD

main46217-16030-C0iACA2#,ZCA2#..AERO200005-200511

BLACK,TRIM1#

sub46217-16030

main46217-16030-C0iACA2#,ZCA2#..AERO200005-200307

BLACK,TRIM1#,4#

sub46217-16030

main46217-16030-C0iACA2#,ZCA2#..AERO200005-200307

BLACK,TRIM14,15

sub46217-16030

46225ASPRING, COMPRESSION(FOR PARKING BRAKE PAWL ROD)

main90501-10132iACA2#,ZCA2#200005-200307

46341EQUALIZER, PARKING BRAKE

main46341-42010iACA2#,ZCA2#200005-200307

46410CABLE ASSY, PARKING BRAKE, NO.1

main46410-42040iACA2#,ZCA2#200005-200307

46420CABLE ASSY, PARKING BRAKE, NO.2

main46420-42070iACA21200307-200511

main46420-42080iACA20200307-200511

main46420-42090iACA21,ZCA26200005-200511

main46420-42100iACA20,ZCA25200005-200511

46430CABLE ASSY, PARKING BRAKE, NO.3

main46430-42070iACA21200307-200511

main46430-42080iACA20200307-200511

main46430-42090iACA21,ZCA26200005-200511

main46430-42100iACA20,ZCA25200005-200511

46451CBRACKET, PARKING BRAKE CABLE SUPPORT, NO.1

main46451-42070iACA20,ZCA25200005-200307

main46451-42090iACA21,ZCA26200005-200307

46458RETAINER, CABLE

main46458-28010iACA2#,ZCA2#200005-200307

8401

4644112010NUT, WIRE ADJUSTING, NO.1

main46441-12010

9011906197

main90119-06197

9011906315

main90119-06315

9017906299

main90179-06299

91611G0612

main91611-G0612

91621B0816

main91621-B0816

91621J0612

main91621-J0612

91651B0825

main91651-B0825

18 parts on this diagram · 3 diagrams in section
