FRONT AXLE HOUSING & DIFFERENTIAL

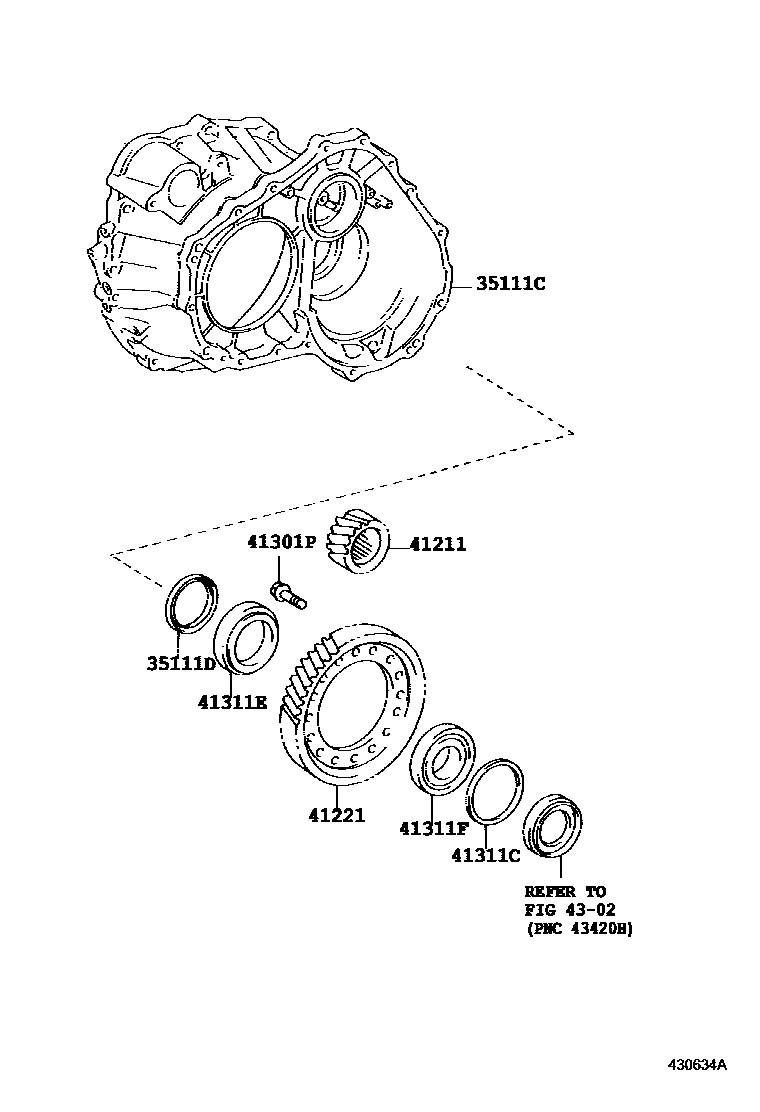

Parts diagram
35111CHOUSING, TRANSAXLE
main35105-20160i200307-200511
sub35105-20161
main35105-42010i200005-200105
main35105-42011i200105-200108
main35105-42012i200108-200307
main35105-42013i200506-200511
35111DSEAL, OIL (FOR TRANSAXLE HOUSING)
main90311-62004i200005-200307
sub90311-62006
41211PINION, DIFFERENTIAL DRIVE
main41211-42030i200307
main41211-52040i200005-200307
41221GEAR, FRONT DIFFERENTIAL RING
main41221-42040i200005-200307
main41221-42060i200005-200307
main41221-42080i200208-200307
main41221-52090i200307-200511
sub41221-52091
41301PSCREW(FOR FRONT DIFFERENTIAL CASE)
main90105-12302×16i200307-200511
41311CASE, FRONT DIFFERENTIAL
main41301-12210i200301-200307
main41301-32071i200005-200301
41311CSHIM (FOR FRONT DIFFERENTIAL CASE REAR)
main90564-49001i200005-200307
main90564-49002i200307-200511
main90564-49003i200005-200307
main90564-49004i200005-200307
main90564-49005i200005-200307
main90564-49006i200005-200307
main90564-49007i200005-200307
main90564-49008i200307-200511
main90564-49009i200005-200307
main90564-49010i200005-200307
main90564-49011i200307-200511
main90564-49012i200005-200307
main90564-49013i200307-200511
main90564-49014i200307-200511
main90564-49015i200307-200511
main90564-49016i200005-200307
main90564-49017i200005-200307
main90564-49018i200307-200511
main90564-49019i200005-200307
main90564-76001i200005-200307
main90564-76002i200005-200307
main90564-76003i200005-200307
main90564-76004i200005-200307
main90564-76005i200005-200307
main90564-76006i200005-200307
main90564-76007i200005-200307
main90564-76008i200005-200307
main90564-76009i200005-200307
main90564-76010i200005-200307
main90564-76011i200005-200307
main90564-76012i200005-200307
main90564-76013i200005-200307
main90564-76014i200005-200307
main90564-76015i200005-200307
main90564-76016i200005-200307
main90564-76017i200005-200307
main90564-76018i200005-200307
main90564-79001i200307-200511
main90564-79002i200005-200307
main90564-79003i200307-200511
main90564-79004i200307-200511
main90564-79005i200307-200511
main90564-79006i200307-200511
main90564-79007i200307-200511
main90564-79008i200307-200511
main90564-79009i200307-200511
main90564-79010i200005-200307
main90564-79011i200005-200307
main90564-79012i200307-200511
main90564-79013i200005-200307
main90564-79014i200005-200307
main90564-79015i200005-200307
main90564-79016i200307-200511
main90564-79017i200005-200307
main90564-79018i200005-200307
41311EBEARING, TAPERED ROLLER (FOR FRONT DIFFERENTIAL CASE FRONT)
main90366-40016i200005-200307
main90366-50014i200005-200307
main90366-62004i200005-200307
41311FBEARING, TAPERED ROLLER (FOR FRONT DIFFERENTIAL CASE REAR)
main90366-44001i200307-200511
main90366-50057i200005-200307
sub04419-33010
sub90366-50106
main90366-62007i200005-200307
4302

10 parts on this diagram · 3 diagrams in section
