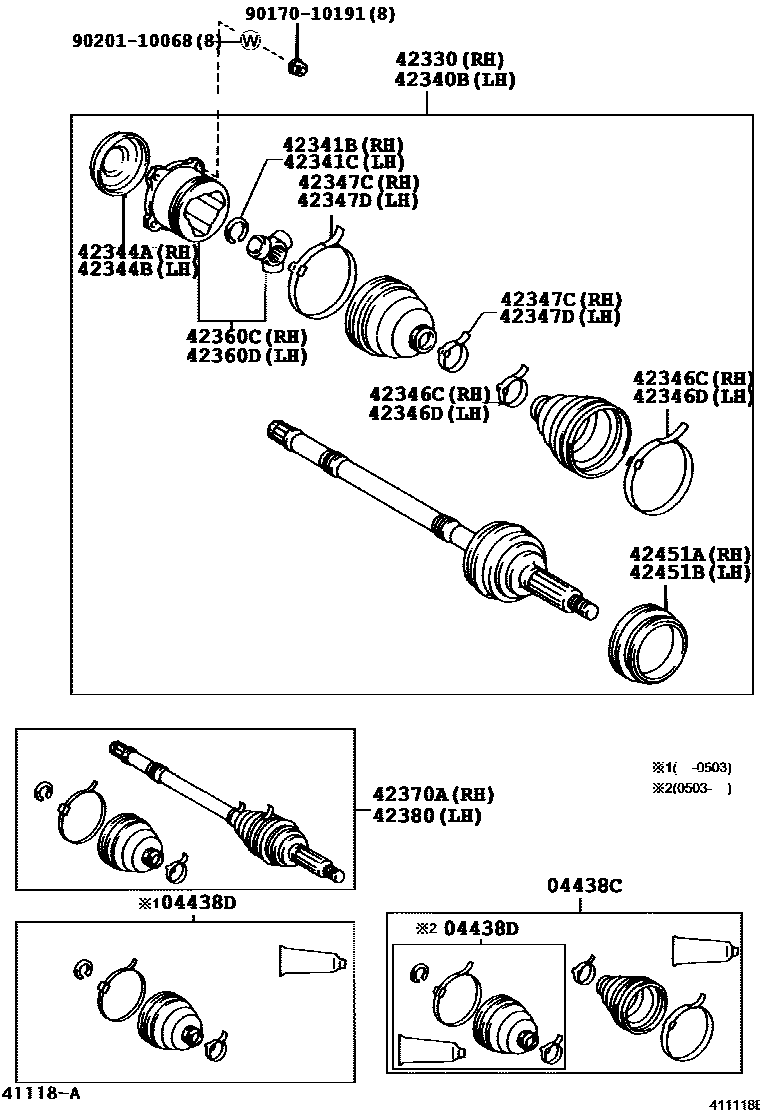

REAR AXLE SHAFT & HUB
42341BRING, SNAP (FOR REAR DRIVE SHAFT RH)
42341CRING, SNAP (FOR REAR DRIVE SHAFT LH)
42344ACOVER, REAR AXLE INBOARD JOINT END, RH
42344BCOVER, REAR AXLE INBOARD JOINT END, LH
42347CCLAMP (FOR REAR DRIVE SHAFT INBOARD JOINT BOOT RH)
42347DCLAMP (FOR REAR DRIVE SHAFT INBOARD JOINT BOOT LH)
42360CJOINT ASSY, REAR DRIVE SHAFT INBOARD, RH
sub42350-42020
42360DJOINT ASSY, REAR DRIVE SHAFT INBOARD, LH
sub42350-42020
42370ASHAFT ASSY, REAR DRIVE OUTBOARD JOINT, RH
sub42370-49215
42380SHAFT ASSY, REAR DRIVE OUTBOARD JOINT, LH
sub42370-19205
42451ADEFLECTOR, REAR WHEEL BEARING DUST, NO.1 RH
42451BDEFLECTOR, REAR WHEEL BEARING DUST, NO.1 LH
9017010191
main90170-10191
9020110068
main90201-10068
20 parts on this diagram · 3 diagrams in section
