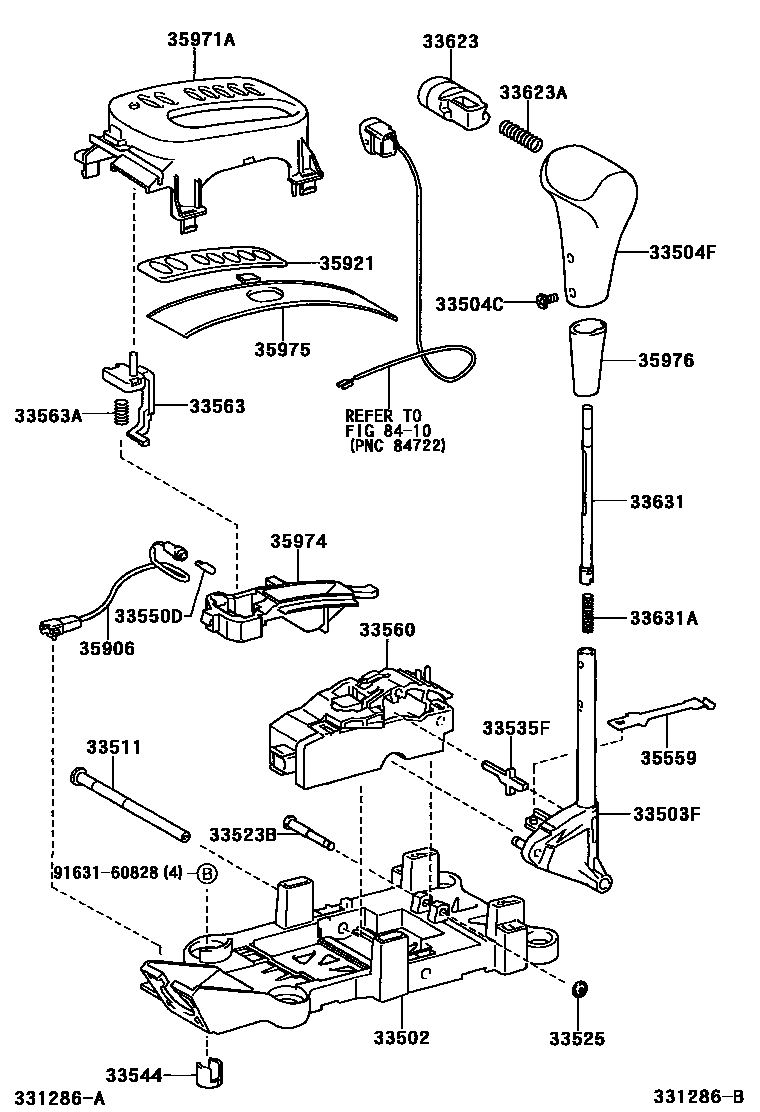

SHIFT LEVER & RETAINER
33502PLATE SUB-ASSY, SHIFT LEVER
33503FLEVER SUB-ASSY, SHIFT(FOR FLOOR SHIFT)
33504CSCREW (FOR SHIFT LEVER KNOB SETTING)
33504FKNOB SUB-ASSY, SHIFT LEVER
BLACK,TRIM1#
33511SHAFT, CONTROL (FOR FLOOR SHIFT)
33523BPIN, SHIFT LEVER (FOR FLOOR SHIFT)
33525SUPPORT, SHIFT LEVER
33535FLEVER, CONTROL SELECT (FOR FLOOR SHIFT)
33544INSERT, SHIFT LEVER, NO.1
33550DBULB, POSITION INDICATOR LAMP
33563BUTTON, SHIFT LOCK RELEASE
33563ASPRING, COMPRESSION (FOR SHIFT LOCK RELEASE BUTTON)
33623BUTTON, SHIFT LEVER KNOB
33623ASPRING, COMPRESSION (FOR SHIFT LEVER KNOB BUTTON)
33631ROD, DETENT
33631ASPRING, COMPRESSION (FOR DETENT ROD)
35559SPRING, MANUAL DETENT
35906WIRE SUB-ASSY, INDICATOR LAMP
sub35906-12160
35921PLATE, CONTROL POSITION INDICATOR
35971AHOUSING, POSITION INDICATOR, UPPER
35974HOUSING, POSITION INDICATOR, LOWER
35975COVER, SLIDE (FOR POSITION INDICATOR)
35976COVER, SLIDE, NO.2 (FOR POSITION INDICATOR)
BLACK,TRIM1#
8410
9163160828
main91631-60828
26 parts on this diagram · 4 diagrams in section
