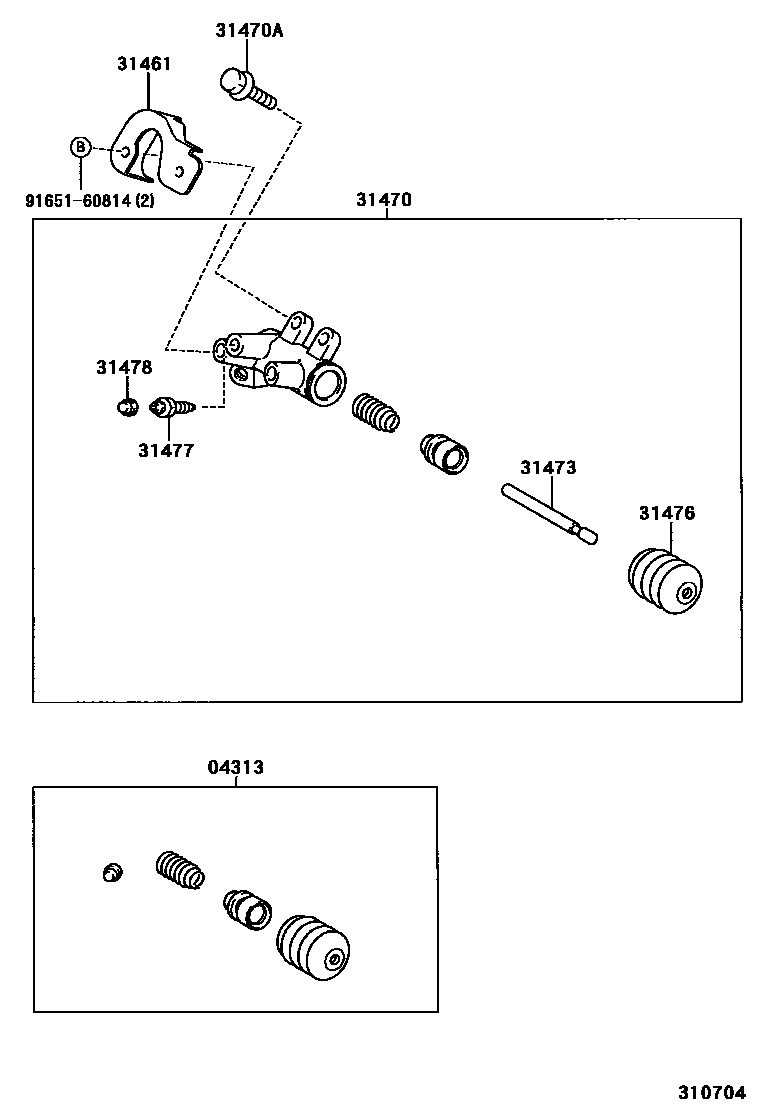

CLUTCH RELEASE CYLINDER

04313CYLINDER KIT, CLUTCH RELEASE

main04313-17010iACA2#..MTM200005-200307

31461INSULATOR, RELEASE CYLINDER HEAT

main31461-42010iACA2#..MTM200005-200304

sub31461-42011

main31461-42011iACA2#..MTM200304-200307

31470CYLINDER ASSY, CLUTCH RELEASE

main31470-42030iACA2#..MTM200005-200307

sub31470-42031

31470ABOLT(FOR CLUTCH RELEASE CYLINDER SETTING)

main91611-60822iACA2#..MTM200005-200307

31473ROD, CLUTCH RELEASE CYLINDER PUSH, NO.1

main31473-22010iACA2#..MTM200209-200307

main31473-32010iACA2#..MTM200005-200209

31476BOOT, CLUTCH RELEASE CYLINDER

main31476-22010iACA2#..MTM200005-200307

31477PLUG, BLEEDER(FOR RELEASE CYLINDER)

main47547-20010iACA2#..MTM200005-200307

31478CAP, BLEEDER PLUG(FOR RELEASE CYLINDER)

main31478-30010iACA2#..MTM200005-200307

9165160814

main91651-60814

9 parts on this diagram · 1 diagram in section
