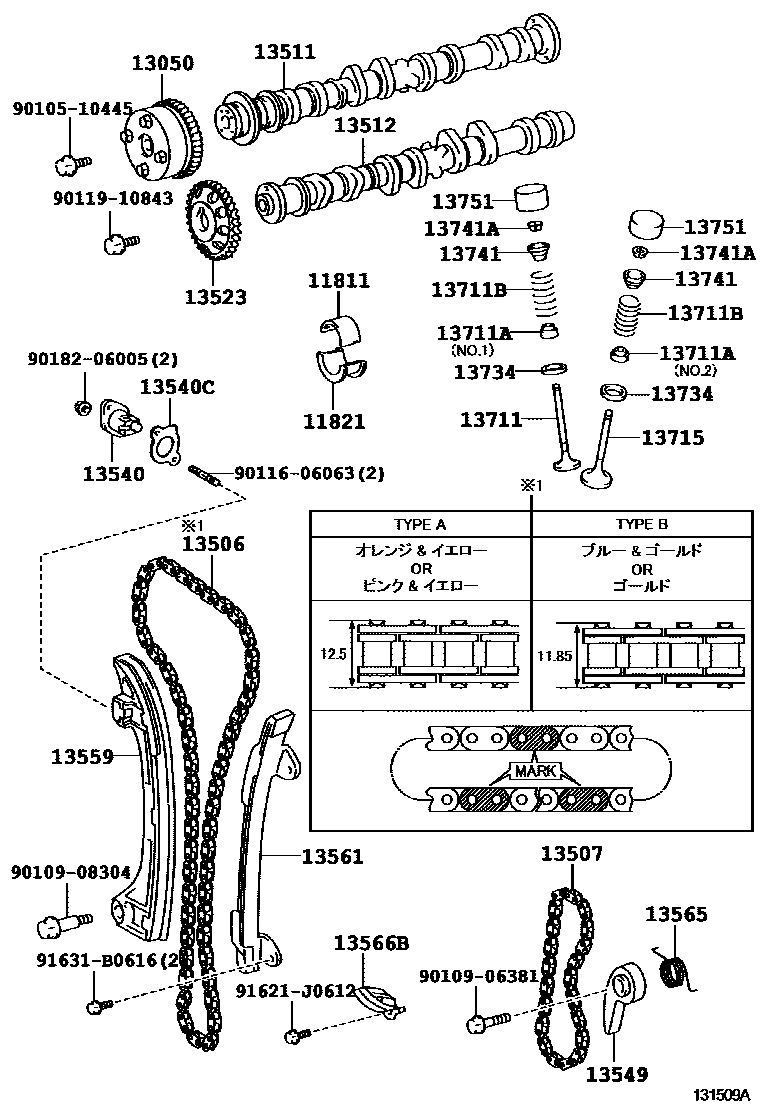

CAMSHAFT & VALVE

0001 1 0002 1

11811BEARING, CAMSHAFT, NO.1

main11811-28010-01i1AZFSE..ACA2#200307

MARK 1

main11811-28010-01i1AZFSE..ACA2#200005-200307

main11811-28010-02i1AZFSE..ACA2#200005-200307

main11811-28010-02i1AZFSE..ACA2#200307

MARK 2

main11811-28010-03i1AZFSE..ACA2#200307

MARK 3

main11811-28010-03i1AZFSE..ACA2#200005-200307

11821BEARING, CAMSHAFT, NO.2

main11821-28010-01i1AZFSE..ACA2#200005-200307

main11821-28010-01i1AZFSE..ACA2#200307

MARK 1

main11821-28010-02i1AZFSE..ACA2#200307

MARK 2

main11821-28010-02i1AZFSE..ACA2#200005-200307

main11821-28010-03i1AZFSE..ACA2#200307

MARK 3

main11821-28010-03i1AZFSE..ACA2#200005-200307

13050GEAR ASSY, CAMSHAFT TIMING

main13050-22011i1ZZFE..ZCA2#200005-200512

sub13050-22012

main13050-22012i1ZZFE..ZCA2#200512

sub13050-0D010

main13050-28020i1AZFSE..ACA2#200005-200511

sub13050-28021

13506CHAIN SUB-ASSY

main13506-22030i1ZZFE..ZCA2#200005-200307

main13506-28010i1AZFSE..ACA2#200005-200511

sub13506-28011

main13506-28020i1AZFSE..ACA2#200005-200511

sub13506-28011

13507CHAIN SUB-ASSY, NO.2

main13507-28010i1AZFSE..ACA2#200005-200307

main13507-28020i1AZFSE..ACA2#200307

13511CAMSHAFT

main13501-0D030i1ZZFE..ZCA2#200501

sub13501-22061

main13501-22040i1ZZFE..ZCA2#200005-200210

main13501-22041i1ZZFE..ZCA2#200210-200307

sub13501-22042

main13501-22061i1ZZFE..ZCA2#200307-200501

sub13501-22062

main13501-22061i1ZZFE..ZCA2#200501

sub13501-22062

main13501-28020i1AZFSE..ACA2#200005-200307

main13501-28050i1AZFSE..ACA2#200307

13512CAMSHAFT, NO.2

main13502-0D010i1ZZFE..ZCA2#200501

sub13502-22011

main13502-22010i1ZZFE..ZCA2#200005-200210

sub13502-22011

main13502-22011i1ZZFE..ZCA2#200210-200501

main13502-22011i1ZZFE..ZCA2#200501

main13502-28010i1AZFSE..ACA2#200005-200307

main13502-28020i1AZFSE..ACA2#200307

13523GEAR OR SPROCKET, CAMSHAFT TIMING

main13523-22020i1ZZFE..ZCA2#200005-200307

main13523-22050i1AZFSE..ACA2#200204-200207

sub13523-22020

13540TENSIONER ASSY, CHAIN, NO.1

main13540-22022i1ZZFE..ZCA2#200005-200307

main13540-28010i1AZFSE..ACA2#200005-200307

13540CGASKET(FOR CHAIN TENSIONER)

main13552-28010i1AZFSE..ACA2#200005-200307

13549PLATE, CHAIN TENSIONER

main13549-28011i1AZFSE..ACA2#200005-200105

sub13549-28012

main13549-28012i1AZFSE..ACA2#200105-200307

13559SLIPPER, CHAIN TENSIONER

main13559-22011i1ZZFE..ZCA2#200005-200307

main13559-28010i1AZFSE..ACA2#200005-200307

13561DAMPER, CHAIN VIBRATION, NO.1

main13561-22020i1ZZFE..ZCA2#200005-200307

main13561-28010i1AZFSE..ACA2#200005-200307

13565SPRING, CHAIN DAMPER

main13565-28011i1AZFSE..ACA2#200005-200105

sub13565-28012

main13565-28012i1AZFSE..ACA2#200105-200307

13566BGUIDE, TIMING CHAIN

main13566-28010i1AZFSE..ACA2#200005-200307

13711VALVE, INTAKE

main13711-0D010i1ZZFE..ZCA2#200501

main13711-22030i1ZZFE..ZCA2#200005-200307

main13711-22040i1ZZFE..ZCA2#200307-200501

main13711-22040i1ZZFE..ZCA2#200501

main13711-28010i1AZFSE..ACA2#200005-200307

13711ASEAL OR RING, O(FOR VALVE STEM OIL)

main90080-31043i1ZZFE..ZCA2#200501

main90080-31046i1ZZFE..ZCA2#200501

main90913-02101i1AZFSE..ACA2#200005-200307

main90913-02101i1AZFSE..ACA2#200005-200307

main90913-02111i1ZZFE..ZCA2#200005-200307

main90913-02111i1AZFSE..ACA2#200005-200210

main90913-02112i1AZFSE..ACA2#200211-200307

13711BSPRING, COMPRESSION(FOR INNER)

main90080-50248i1ZZFE..ZCA2#200501

main90501-29048i1ZZFE..ZCA2#200501

main90501-29048i1ZZFE..ZCA2#200005-200307

main90501-29054i1AZFSE..ACA2#200307

main90905-01065i1AZFSE..ACA2#200005-200008

sub90905-01066

main90905-01066i1AZFSE..ACA2#200008-200307

main90905-01084i1ZZFE..ZCA2#200307-200501

main90905-01084i1ZZFE..ZCA2#200501

13715VALVE, EXHAUST

main13715-0D010i1ZZFE..ZCA2#200501

main13715-22030i1ZZFE..ZCA2#200005-200307

main13715-22040i1ZZFE..ZCA2#200307-200501

main13715-22040i1ZZFE..ZCA2#200501

main13715-28010i1AZFSE..ACA2#200005-200307

13734SEAT, VALVE SPRING

main13734-74010i1AZFSE..ACA2#200005-200307

13741RETAINER, VALVE SPRING

main13741-22020i1AZFSE..ACA2#200005-200107

sub13741-22021

main13741-22021i1AZFSE..ACA2#200107-200511

13741ALOCK, VALVE SPRING RETAINER

main90913-03028i1ZZFE..ZCA2#200005-200307

13751LIFTER, VALVE

main13751-46030i1AZFSE..ACA2#200005-200307

main13751-46040i1AZFSE..ACA2#200005-200307

main13751-46050i1ZZFE..ZCA2#200005-200307

main13751-46060i1AZFSE..ACA2#200005-200307

main13751-46070i1ZZFE..ZCA2#200005-200307

main13751-46080i1ZZFE..ZCA2#200005-200307

main13751-46090i1ZZFE..ZCA2#200005-200307

main13751-46100i1AZFSE..ACA2#200005-200307

main13751-46110i1ZZFE..ZCA2#200005-200307

main13751-46120i1ZZFE..ZCA2#200005-200307

main13751-46130i1AZFSE..ACA2#200005-200307

main13751-46140i1AZFSE..ACA2#200005-200307

main13751-46150i1ZZFE..ZCA2#200005-200307

main13751-46160i1AZFSE..ACA2#200005-200307

main13751-46170i1ZZFE..ZCA2#200005-200307

main13751-46180i1ZZFE..ZCA2#200005-200307

main13751-46190i1AZFSE..ACA2#200005-200307

main13751-46200i1AZFSE..ACA2#200005-200307

main13751-46210i1ZZFE..ZCA2#200005-200307

main13751-46220i1ZZFE..ZCA2#200005-200307

main13751-46230i1ZZFE..ZCA2#200005-200307

main13751-46240i1ZZFE..ZCA2#200005-200307

main13751-46250i1ZZFE..ZCA2#200005-200307

main13751-46260i1ZZFE..ZCA2#200005-200307

main13751-46270i1AZFSE..ACA2#200005-200307

main13751-46280i1ZZFE..ZCA2#200005-200307

main13751-46290i1AZFSE..ACA2#200005-200307

main13751-46300i1AZFSE..ACA2#200005-200307

main13751-46310i1AZFSE..ACA2#200005-200307

main13751-46320i1AZFSE..ACA2#200005-200307

main13751-46330i1ZZFE..ZCA2#200005-200307

main13751-46340i1AZFSE..ACA2#200005-200307

main13751-46350i1ZZFE..ZCA2#200005-200307

main13751-46360i1AZFSE..ACA2#200005-200307

main13751-46370i1ZZFE..ZCA2#200005-200307

9010510445

main90105-10445

9010906381

main90109-06381

9010908304

main90109-08304

9011606063

main90116-06063

9011910843

main90119-10843

9018206005

main90182-06005

91621J0612

main91621-J0612

91631B0616

main91631-B0616

31 parts on this diagram · 2 diagrams in section
