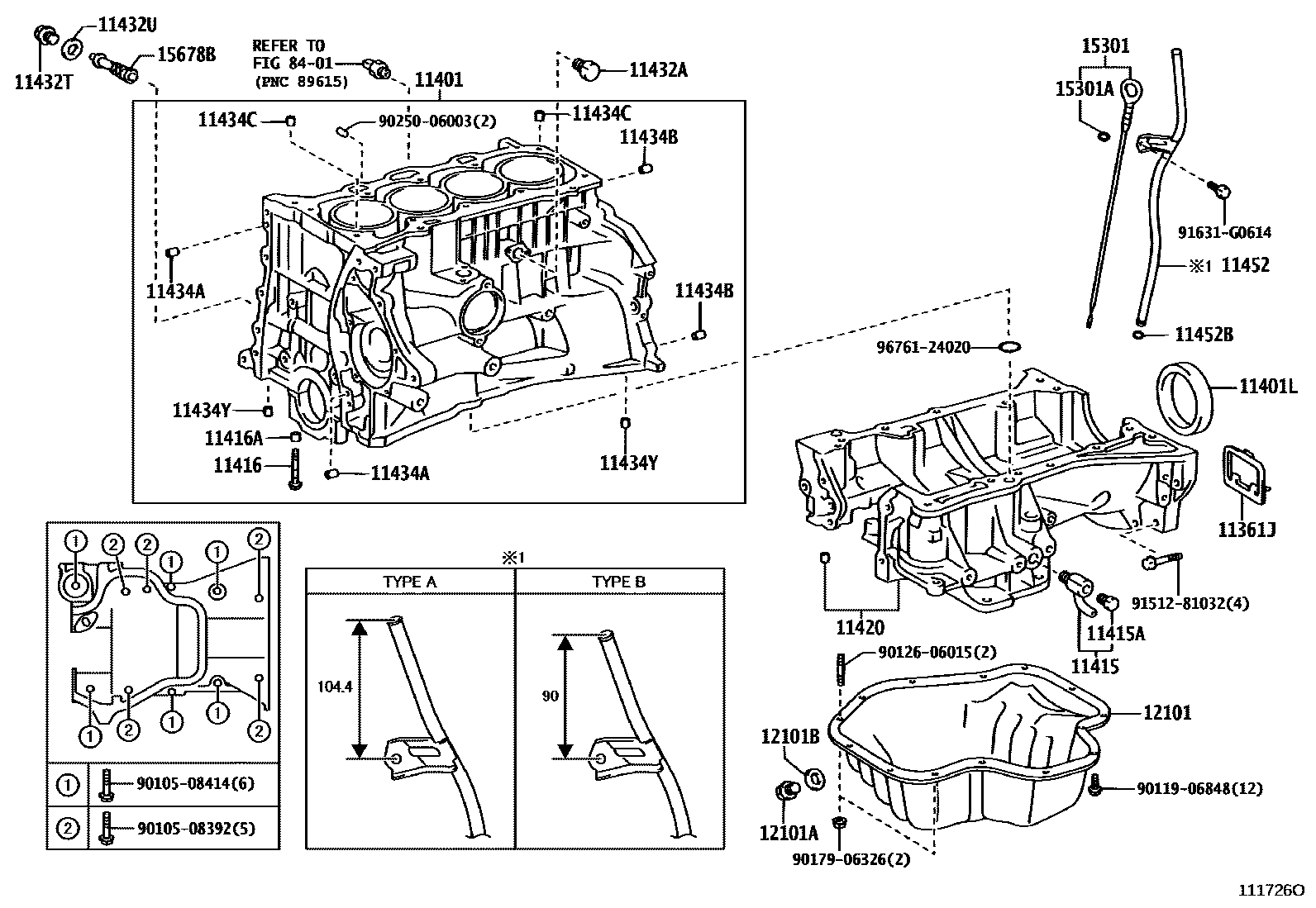

CYLINDER BLOCK

0001 1 0002 1 0003 1

11361JCOVER, FLYWHEEL HOUSING UNDER

main11361-22021i1ZZFE..ZCA2#200005-200307

main11361-28010i1AZFSE..ACA2#200005-200307

11401BLOCK SUB-ASSY, CYLINDER

main11410-29086i1ZZFE..ZCA2#200005-200212

sub11410-29135

main11410-29115i1AZFSE..ACA2#200005-200307

sub11410-29195

main11410-29125i1AZFSE..ACA2#200307-200404

main11410-29135i1ZZFE..ZCA2#200212-200307

sub11410-29136

sub16258-28030

sub16268-22021

sub16268-22042

sub16268-22061

sub16268-22071

sub16268-22101

sub16268-22111

sub16268-22161

main11410-29245i1AZFSE..ACA2#200404-200511

11401LSEAL, ENGINE REAR OIL

main90311-76001i1ZZFE..ZCA2#200005-200307

sub90311-76003

main90311-89003i1AZFSE..ACA2#200005-200511

sub90311-89007

11415COCK SUB-ASSY, WATER DRAIN(FOR CYLINDER BLOCK)

main90910-09107i1ZZFE..ZCA2#200005-200307

main90910-09120i1AZFSE..ACA2#200005-200307

11415APLUG, WATER DRAIN COCK(FOR CYLINDER BLOCK)

main90910-09087i1AZFSE..ACA2#200005-200307

11416BOLT(FOR CRANKSHAFT BEARING CAP SET)

main90105-08363i1ZZFE..ZCA2#200005-200307

sub91511-K0840

main90910-02124i1AZFSE..ACA2#200005-200307

sub90910-02206

main91511-K0840i1ZZFE..ZCA2#200307

11416APIN, RING(FOR CRANKSHAFT BEARING CAP SET)

main90253-13017i1AZFSE..ACA2#200005-200307

11420CRANKCASE ASSY, STIFFENING

main11421-28020i1AZFSE..ACA2#200112-200307

main11421-28031i1AZFSE..ACA2#200307-200511

main11421-28900i1AZFSE..ACA2#200005-200112

sub11421-28020

11432APLUG, W/HEAD TAPER SCREW, NO.1

main90345-52001i1AZFSE..ACA2#200005-200307

11432TPLUG, W/HEAD STRAIGHT SCREW, NO.3(FOR CYLINDER BLOCK)

main90341-14013i1AZFSE..ACA2#200005-200307

11432UGASKET, STRAIGHT SCREW PLUG NO.1(FOR CYLINDER BLOCK)

main90430-14009i1AZFSE..ACA2#200005-200304

main90430-14011i1AZFSE..ACA2#200304-200307

11434APIN, STRAIGHT(FOR TIMING GEAR COVER SET)

main90250-08074i1AZFSE..ACA2#200005-200302

main90250-08120i1AZFSE..ACA2#200302-200307

11434BPIN, STRAIGHT(FOR CLUTCH HOUSING SET)

main90250-10113i1ZZFE..ZCA2#200005-200307

11434CPIN, STRAIGHT (FOR CYLINDER HEAD SET)

main90253-14003i1AZFSE..ACA2#200005-200307

11434YPIN, STRAIGHT(FOR OIL PAN)

main90250-08074i1AZFSE..ACA2#200005-200307

11452GUIDE, OIL LEVEL GAGE

main11452-22030i1ZZFE..ZCA2#200005-200307

sub11452-22031

sub11459-22010

main11452-28010i1AZFSE..ACA2#200005-200301

main11452-28011i1AZFSE..ACA2#200301-200307

main11452-28011i1AZFSE..ACA2#200307-200510

main11452-28040i1AZFSE..ACA2#200510

11452BRING, O(FOR OIL LEVEL GAGE GUIDE)

main96721-19010i1AZFSE..ACA2#200005-200307

12101PAN SUB-ASSY, OIL

main12101-22024i1ZZFE..ZCA2#200005-200307

main12101-28050i1AZFSE..ACA2#200005-200307

12101APLUG(FOR OIL PAN DRAIN)

main90341-12012i1ZZFE..ZCA2#200210-200307

main90341-12026i1ZZFE..ZCA2#200005-200210

sub90341-12012

12101BGASKET(FOR OIL PAN DRAIN PLUG)

main90430-12031i1ZZFE..ZCA2#200005-200307

15301GAGE SUB-ASSY, OIL LEVEL

main15301-22030i1ZZFE..ZCA2#200005-200507

sub15301-22050

main15301-22050i1ZZFE..ZCA2#200507

main15301-28020i1AZFSE..ACA2#200005-200301

main15301-28050i1AZFSE..ACA2#200301-200304

sub15301-28051

main15301-28051i1AZFSE..ACA2#200304-200510

15301ARING, O(FOR OIL LEVEL GAGE)

main96741-19005i1AZFSE..ACA2#200005-200510

15678BFILTER, OIL CONTROL VALVE

main15678-28010i1AZFSE..ACA2#200005-200307

8401

9010508392

main90105-08392

9010508414

main90105-08414

9011906848

main90119-06848

9012606015

main90126-06015

9017906326

main90179-06326

9025006003

main90250-06003

9151281032

main91512-81032

91631G0614

main91631-G0614

9676124020

main96761-24020

33 parts on this diagram · 3 diagrams in section
