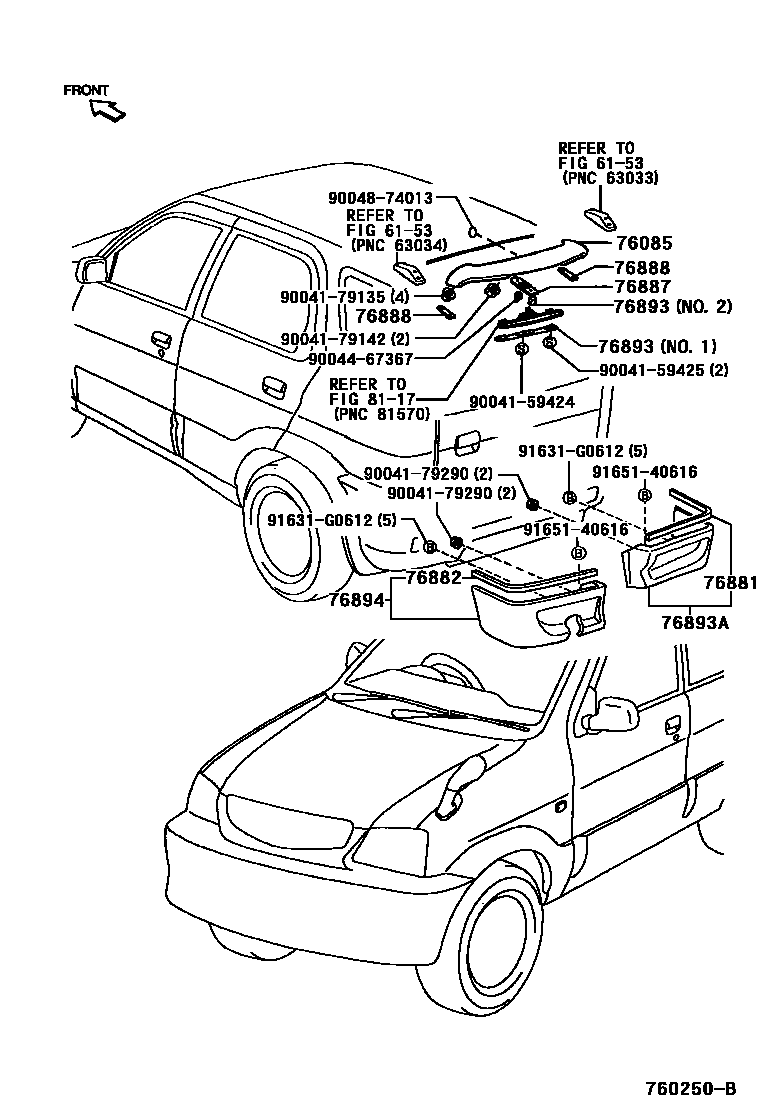

SPOILER & SIDE MUDGUARD
6153
76085SPOILER SUB-ASSY, REAR
BLACK M.,6A5
SILVER M.,S07
WHITE,W09
WHITE,W19
PURE RED,R19
RED,R29
MARINE BLUE M.M.,B44
LIGHT ROSE M.,T16
BLUE MICA M.,B50
76881PROTECTOR, REAR SPOILER SIDE, NO.1 RH
BLACK M.,6A5
SILVER M.,S07
WHITE,W09
sub76881-87403
sub76881-87403
sub76881-87403
76882PROTECTOR, REAR SPOILER SIDE, NO.1 LH
76887SEAL, REAR SPOILER
76888PROTECTOR, REAR SPOILER SIDE, NO.3
76893COVER, REAR SPOILER, NO.1
76893ACOVER, REAR SPOILER, RH
BLACK M.,6A5
SILVER M.,S07
WHITE,W09
76894COVER, REAR SPOILER, LH
BLACK M.,6A5
SILVER M.,S07
WHITE,W09
8117
9004159424
main90041-59424
9004159425
main90041-59425
9004179135
main90041-79135
9004179142
main90041-79142
9004179290
main90041-79290
9004467367
main90044-67367
9004874013
main90048-74013
91631G0612
main91631-G0612
9165140616
main91651-40616
19 parts on this diagram · 2 diagrams in section
