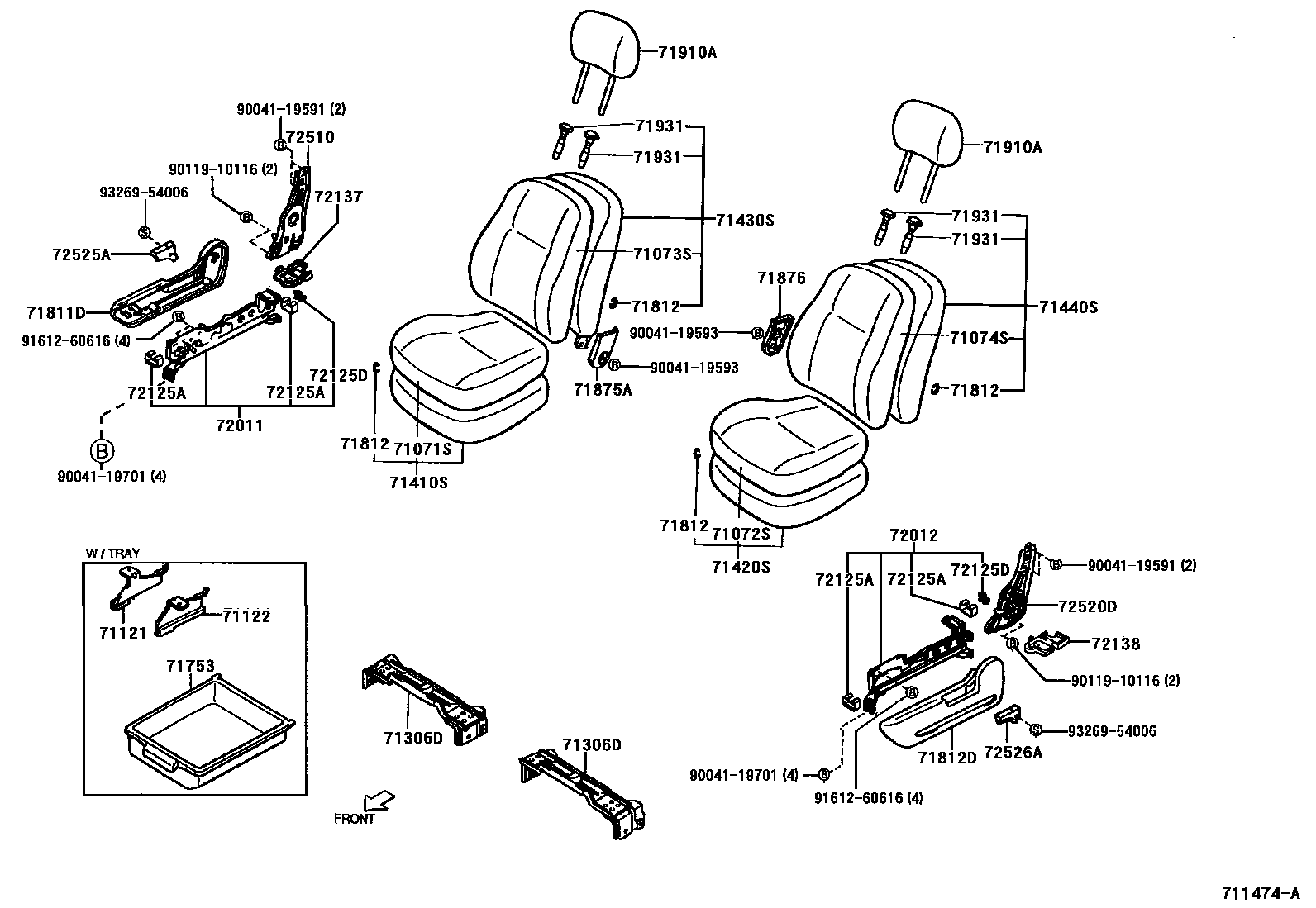

SEAT & SEAT TRACK

0001 1���� 0002 1���� 0003 1���� 0004 1�� 0005 1��

71071SCOVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

main71063-87405-03iJ100199905-200005

GRAY,TRIMS

main71063-87409-03iJ100..Q199905-200005

main71063-87413-03iJ102,122..EFI200005-200112

GRAY,TRIMS

main71063-87414-03iJ102..TBO200008-200012

sub71063-87417

main71063-87414-03iJ102,122..Q..EFI200008-200012

GRAY,TRIMS

sub71063-87417

main71063-87417-03iJ102..TBO200101-200112

GRAY,TRIMS

main71063-87417-03iJ102,122..Q..EFI200101-200112

main71063-87421-03iJ102,122..EFI200112-200308

GRAY,TRIMS

main71063-87422-03iJ102..TBO200112-200308

main71063-87422-03iJ102,122..4AT..Q..EFI200112-200308

GRAY,TRIMS

main71063-87422-03iJ102,122..4AT..Q..EFI200112-200308

main71063-87422-03iJ102,122..4AT..Q..EFI200112-200308

main71071-87406-01iJ102..TBO200308

main71071-87406-01iJ102..TBO200308

BLACK,TRIMS

main71071-87409-03iJ102,122..EFI200308

GRAY,TRIMS

71072SCOVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)

main71064-87405-03iJ100199905-200005

GRAY,TRIMS

main71064-87409-03iJ100..Q199905-200005

main71064-87416-03iJ102,122..EFI200005-200112

GRAY,TRIMS

main71064-87417-03iJ102,122..Q..EFI200008-200012

sub71064-87422

main71064-87417-03iJ102..TBO200008-200012

GRAY,TRIMS

sub71064-87422

main71064-87422-03iJ102..TBO200101-200112

GRAY,TRIMS

main71064-87422-03iJ102..TBO200101-200112

main71064-87430-03iJ102,122..EFI200112-200308

GRAY,TRIMS

main71064-87431-03iJ102,122..4AT..Q..EFI200112-200308

main71064-87431-03iJ102..TBO200112-200308

GRAY,TRIMS

main71064-87431-03iJ102..TBO200112-200308

main71064-87431-03iJ102..TBO200112-200308

main71072-87410-01iJ102..TBO200308

BLACK,TRIMS

main71072-87410-01iJ102..TBO200308

main71072-87413-03iJ102,122..EFI200308

GRAY,TRIMS

71073SCOVER, FRONT SEATBACK, RH(FOR SEPARATE TYPE)

main71061-87406-03iJ100199905-200005

GRAY,TRIMS

main71061-87412-03iJ100..Q199905-200005

main71061-87418-03iJ102,122..EFI200005-200112

GRAY,TRIMS

main71061-87420-03iJ102,122..Q..EFI200008-200012

sub71061-87425

main71061-87420-03iJ102..TBO200008-200012

GRAY,TRIMS

sub71061-87425

main71061-87425-03iJ102..TBO200101-200112

GRAY,TRIMS

main71061-87425-03iJ102..TBO200101-200112

main71061-87435-03iJ102,122..EFI200112-200308

GRAY,TRIMS

main71061-87436-03iJ102..TBO200112-200308

main71061-87436-03iJ102..TBO200112-200308

GRAY,TRIMS

main71061-87436-03iJ102..TBO200112-200308

main71061-87437-03iJ102,122..EFI200112-200308

main71061-87438-03iJ102,122..Q..EFI200112-200308

main71061-87438-03iJ102,122..Q..EFI200112-200308

main71061-87443-03iJ102,122..EFI200112-200308

main71061-87443-03iJ102,122..EFI200112-200308

main71061-87444-03iJ102,122..Q..EFI200112-200308

main71061-87444-03iJ102..TBO200112-200308

main71061-87446-03iJ102..TBO200112-200308

main71073-87408-01iJ102..TBO200308

BLACK,TRIMS

main71073-87408-01iJ102..TBO200308

main71073-87409-01iJ102..TBO200308

main71073-87409-01iJ102..TBO200308

main71073-87412-01iJ102,122..4AT..Q..EFI200308

main71073-87412-01iJ102..TBO200308

main71073-87413-01iJ102..TBO200308

main71073-87413-01iJ102..TBO200308

main71073-87418-03iJ102,122..EFI200308

GRAY,TRIMS

main71073-87419-03iJ102,122..4AT..EFI200308

main71073-87420-03iJ102,122..EFI200308

main71073-87421-03iJ102,122..4AT..EFI200308

71074SCOVER, FRONT SEATBACK, LH(FOR SEPARATE TYPE)

main71062-87406-03iJ100199905-200005

GRAY,TRIMS

main71062-87412-03iJ100..Q199905-200005

main71062-87413-03iJ102,122..EFI200005-200112

GRAY,TRIMS

main71062-87414-03iJ102,122..Q..EFI200008-200012

GRAY,TRIMS

sub71062-87418

main71062-87414-03iJ102..TBO200008-200012

sub71062-87418

main71062-87418-03iJ102..TBO200101-200112

GRAY,TRIMS

main71062-87418-03iJ102..TBO200101-200112

main71062-87426-03iJ102,122..EFI200112-200308

GRAY,TRIMS

main71062-87427-03iJ102,122..Q200112-200308

main71062-87427-03iJ102..TBO200112-200308

GRAY,TRIMS

main71062-87427-03iJ102..TBO200112-200308

main71062-87427-03iJ102..TBO200112-200308

main71062-87428-03iJ102,122..EFI200112-200308

main71062-87429-03iJ102..TBO200112-200308

main71062-87429-03iJ102,122..Q..EFI200112-200308

main71074-87410-01iJ102..TBO200308

main71074-87410-01iJ102,122..4AT..Q..EFI200308

BLACK,TRIMS

main71074-87412-01iJ102..TBO200308

main71074-87412-01iJ102,122..4AT..Q..EFI200308

main71074-87414-03iJ102,122..EFI200308

GRAY,TRIMS

main71074-87415-03iJ102,122..EFI200308

71121BRACKET, FRONT SEAT CUSHION, RH

main71121-87401iJ100199905-200005

71122BRACKET, FRONT SEAT CUSHION, LH

main71122-87401iJ100199905-200005

71306DBRACKET SUB-ASSY, FRONT SEAT SET

main71306-87401iJ10#,122199905

main71306-87402iJ10#,122199905

71410SCUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)

main71510-87405-03iJ100199905-200005

GRAY,TRIMS

main71510-87409-03iJ100..Q199905-200005

main71510-87413-03iJ102,122..EFI200005-200112

GRAY,TRIMS

main71510-87414-03iJ102..TBO200008-200012

sub71510-87421

main71510-87414-03iJ102,122..Q..EFI200008-200012

GRAY,TRIMS

sub71510-87421

main71510-87421-03iJ102,122..Q..EFI200101-200112

main71510-87421-03iJ102,122..Q..EFI200101-200112

GRAY,TRIMS

main71510-87426-03iJ102,122..EFI200112-200308

GRAY,TRIMS

main71510-87427-03iJ102..TBO200112-200308

main71510-87427-03iJ102..TBO200112-200308

main71510-87427-03iJ102..TBO200112-200308

main71510-87427-03iJ102,122..4AT..Q..EFI200112-200308

GRAY,TRIMS

main71510-87431-01iJ102..TBO200308

BLACK,TRIMS

main71510-87431-01iJ102..TBO200308

main71510-87434-03iJ102,122..EFI200308

GRAY,TRIMS

71420SCUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE)

main71420-87417-03iJ102,122..EFI200112-200308

GRAY,TRIMS

main71420-87418-03iJ102,122..4AT..Q..EFI200112-200308

main71420-87418-03iJ102..TBO200112-200308

GRAY,TRIMS

main71420-87418-03iJ102..TBO200112-200308

main71420-87418-03iJ102..TBO200112-200308

main71420-87422-01iJ102..TBO200308

main71420-87422-01iJ102..TBO200308

BLACK,TRIMS

main71420-87427-03iJ102,122..EFI200308

GRAY,TRIMS

main71520-87405-03iJ100199905-200005

GRAY,TRIMS

main71520-87409-03iJ100..Q199905-200005

main71520-87414-03iJ102,122..EFI200005-200112

GRAY,TRIMS

main71520-87415-03iJ102..TBO200008-200012

sub71520-87420

main71520-87415-03iJ102..TBO200008-200012

GRAY,TRIMS

sub71520-87420

main71520-87420-03iJ102..TBO200101-200112

main71520-87420-03iJ102..TBO200101-200112

GRAY,TRIMS

71430SBACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)

main71040-87416-01iJ102,122..4AT..Q..EFI200308

main71040-87416-01iJ102,122..4AT..Q..EFI200308

BLACK,TRIMS

main71040-87417-01iJ102,122..4AT..Q..EFI200308

main71040-87417-01iJ102,122..4AT..Q..EFI200308

main71040-87418-01iJ102..TBO200308

main71040-87418-01iJ102,122..4AT..Q..EFI200308

main71040-87419-01iJ102,122..4AT..Q..EFI200308

main71040-87419-01iJ102..TBO200308

main71040-87425-01iJ102..TBO200308

main71040-87425-01iJ102,122..4AT..Q..EFI200308

main71040-87427-01iJ102,122..4AT..Q..EFI200308

main71040-87427-01iJ102..TBO200308

main71040-87439-03iJ102,122..EFI200308

GRAY,TRIMS

main71040-87440-03iJ102,122..4AT..EFI200308

main71040-87441-03iJ102,122..4AT..EFI200308

main71040-87442-03iJ102,122..4AT..EFI200308

main71040-87445-03iJ102,122..EFI200308

main71040-87446-03iJ102,122..4AT..EFI200308

main71430-87415-03iJ100199905-200005

GRAY,TRIMS

main71430-87426-03iJ100..Q199905-200005

main71430-87433-03iJ102,122..EFI200005-200112

GRAY,TRIMS

main71430-87434-03iJ102,122..Q..EFI200008-200012

sub71430-87449

main71430-87434-03iJ102..TBO200008-200012

GRAY,TRIMS

sub71430-87449

main71430-87449-03iJ102,122..Q..EFI200101-200112

main71430-87449-03iJ102..TBO200101-200112

GRAY,TRIMS

main71430-87462-03iJ102,122..4AT..EFI200112-200308

main71430-87463-03iJ102,122..4AT..Q..EFI200112-200308

main71430-87463-03iJ102..TBO200112-200308

main71430-87464-03iJ102,122..4AT..EFI200112-200308

main71430-87465-03iJ102..TBO200112-200308

main71430-87465-03iJ102,122..4AT..Q..EFI200112-200308

main71430-87469-03iJ102,122..EFI200112-200308

GRAY,TRIMS

main71430-87470-03iJ102,122..Q..EFI200112-200308

main71430-87470-03iJ102..TBO200112-200308

GRAY,TRIMS

main71430-87472-03iJ102,122..EFI200112-200308

main71430-87474-03iJ102,122..Q..EFI200112-200308

main71430-87474-03iJ102..TBO200112-200308

main71430-87475-03iJ102,122..EFI200112-200308

main71430-87476-03iJ102,122..Q..EFI200112-200308

main71430-87476-03iJ102,122..Q..EFI200112-200308

main71430-87478-03iJ102,122..EFI200112-200308

main71430-87480-03iJ102,122..Q..EFI200112-200308

main71430-87480-03iJ102,122..Q..EFI200112-200308

71440SBACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE)

main71440-87416-03iJ102,122..EFI200112-200308

GRAY,TRIMS

main71440-87417-03iJ102,122..4AT..Q..EFI200112-200308

GRAY,TRIMS

main71440-87417-03iJ102..TBO200112-200308

main71440-87417-03iJ102..TBO200112-200308

main71440-87417-03iJ102..TBO200112-200308

main71440-87419-03iJ102,122..Q..EFI200112-200308

main71440-87421-03iJ102,122..Q..EFI200112-200308

main71440-87421-03iJ102,122..Q..EFI200112-200308

main71440-87429-01iJ102..TBO200308

main71440-87429-01iJ102..TBO200308

BLACK,TRIMS

main71440-87433-01iJ102,122..4AT..Q..EFI200308

main71440-87433-01iJ102..TBO200308

main71440-87440-03iJ102,122..EFI200308

GRAY,TRIMS

main71440-87442-03iJ102,122..4AT..EFI200308

main71440-87442-03iJ102,122..EFI200308

main71540-87408-03iJ100199905-200005

GRAY,TRIMS

main71540-87418-03iJ100..Q199905-200005

main71540-87421-03iJ102,122..EFI200005-200112

GRAY,TRIMS

main71540-87422-03iJ102..TBO200008-200012

sub71540-87431

main71540-87422-03iJ102..TBO200008-200012

GRAY,TRIMS

sub71540-87431

main71540-87431-03iJ102..TBO200101-200112

main71540-87431-03iJ102,122..Q..EFI200101-200112

GRAY,TRIMS

71753TRAY, FRONT SEAT UNDER

main71753-87401iJ100199905-200005

71811DSHIELD, FRONT SEAT CUSHION, RH

main71811-87402-03iJ100199905-200005

GRAY,TRIMS

sub71811-87402

main71811-87402-13iJ102,122200005

GRAY,TRIMS

sub71811-87402

71812CLIP (FOR FRONT SEAT CUSHION COVER)

main71812-87201iJ10#,122199905

71812DSHIELD, FRONT SEAT CUSHION, LH

main71812-87402-03iJ100199905-200005

GRAY,TRIMS

sub71812-87402

main71812-87402-13iJ102,122200005

GRAY,TRIMS

sub71812-87402

71875ACOVER, RECLINING ADJUSTER INSIDE, RH

main71831-87101-01iJ10#,122199905

main71875-87401-03iJ100199905-200005

sub71875-87401

main71875-87401-13iJ102,122200005

sub71875-87401

71876COVER, RECLINING ADJUSTER INSIDE, LH

main71832-87101-01iJ10#,122199905

main71876-87401-03iJ100199905-200005

sub71876-87401

main71876-87401-13iJ102,122200005

sub71876-87401

71910AHEADREST ASSY, FRONT SEAT

main71910-87405-03iJ100199905-200005

GRAY,TRIMS

main71910-87407-03iJ100..Q199905-200005

main71910-87409-03iJ102,122..EFI200005-200112

GRAY,TRIMS

main71910-87410-03iJ102,122..Q..EFI200008-200012

sub71910-87413

main71910-87410-03iJ102..TBO200008-200012

GRAY,TRIMS

sub71910-87413

main71910-87413-01iJ102..TBO200101-200112

main71910-87413-01iJ102,122..Q..EFI200101-200112

BLACK,TRIMS

main71910-87416-03iJ102,122..EFI200112-200308

GRAY,TRIMS

main71910-87417-01iJ102,122..Q..EFI200112-200308

main71910-87417-01iJ102..TBO200112-200308

BLACK,TRIMS

main71910-87417-01iJ102..TBO200112-200308

main71910-87423-03iJ102,122..EFI200308

GRAY,TRIMS

sub71910-87423

main71910-87424-01iJ102..TBO200308

main71910-87424-01iJ102,122..4AT..Q..EFI200308

BLACK,TRIMS

71931SUPPORT, FRONT SEAT HEADREST

main71930-87601-63iJ10#,122199905

sub71930-87601

main71931-87601-63iJ10#,122199905

sub71931-87601

72011ADJUSTER SUB-ASSY, FRONT SEAT, OUTER RH

main72110-87402iJ10#,122199905

main72110-87405iJ102,122..4AT..Q..EFI200112

main72110-87405iJ102,122..4AT..Q..EFI200112

main72110-87405iJ102,122..4AT..Q..EFI200112

main72110-87405iJ102,122..4AT..Q..EFI200112

72012ADJUSTER SUB-ASSY, FRONT SEAT, OUTER LH

main72120-87403iJ100199905-200005

main72120-87407iJ102,122200005

72125ACOVER, SEAT TRACK, UPPER REAR

main72137-87703iJ10#,122199905

72125DCOVER, SEAT TRACK, UPPER REAR NO.2

main72265-87701iJ10#,122199905

72137COVER, SEAT TRACK, OUTER RH

main72137-87402-01iJ10#,122199905

BLACK,TRIMS

sub72137-87402

72138COVER, SEAT TRACK, OUTER LH

main72138-87402-01iJ10#,122199905

BLACK,TRIMS

sub72138-87402

72510ADJUSTER ASSY, RECLINING SEATBACK, RH

main72510-87744iJ10#,122199905

72520DADJUSTER ASSY, RECLINING SEAT, OUTER LH

main72520-87747iJ10#,122199905

72525AHANDLE, RECLINING ADJUSTER RELEASE, RH

main72525-87401-03iJ100199905-200005

GRAY,TRIMS

main72525-87403-13iJ102,122200005

GRAY,TRIMS

sub72525-87403

72526AHANDLE, RECLINING ADJUSTER RELEASE, LH

main72526-87401-03iJ100199905-200005

GRAY,TRIMS

main72526-87403-13iJ102,122200005

GRAY,TRIMS

sub72526-87403

9004119591

main90041-19591

9004119593

main90041-19593

9004119701

main90041-19701

9011910116

main90119-10116

9161260616

main91612-60616

9326954006

main93269-54006

35 parts on this diagram · 5 diagrams in section
