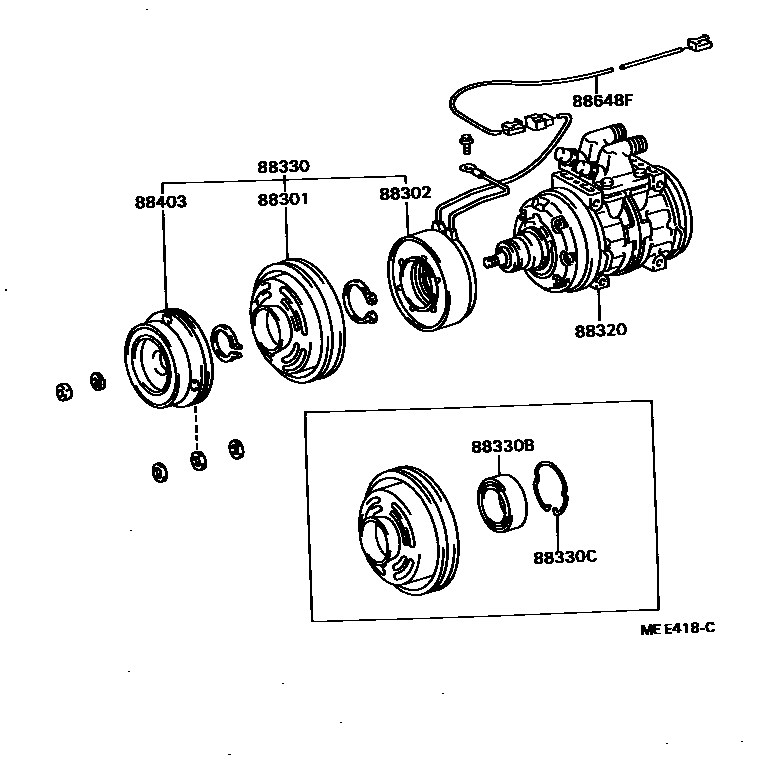

HEATING & AIR CONDITIONING - COMPRESSOR

0001 1 0002 1

88301ROTOR SUB-ASSY, MAGNET CLUTCH

main88412-22030iLD2#198405-199002

88302STATOR SUB-ASSY, MAGNET CLUTCH

main88411-14050iLD2#198405-199002

88320COMPRESSOR ASSY, COOLER

main88320-60120iLD20..DSL198405-198703

main88320-60121iLD20..DSL198703-198911

main88320-60210iLD2#..TD198409-198703

main88320-60211iLD2#..TD198703-199002

88330CLUTCH ASSY, MAGNET

main88410-22080iLD2#198405-199002

sub88410-60140

88330BBEARING, MAGNET CLUTCH

main90099-10133iLD2#198405-199002

88330CRING, SNAP (FOR MAGNET CLUTCH)

main90099-07114iLD2#198405-199002

88403HUB SUB-ASSY, MAGNET CLUTCH

main88403-14030iLD2#198405-199002

sub88403-12030

88648FWIRE, MAGNET CLUTCH

main88648-87605iLD2#198405-199002

8 parts on this diagram · 2 diagrams in section
