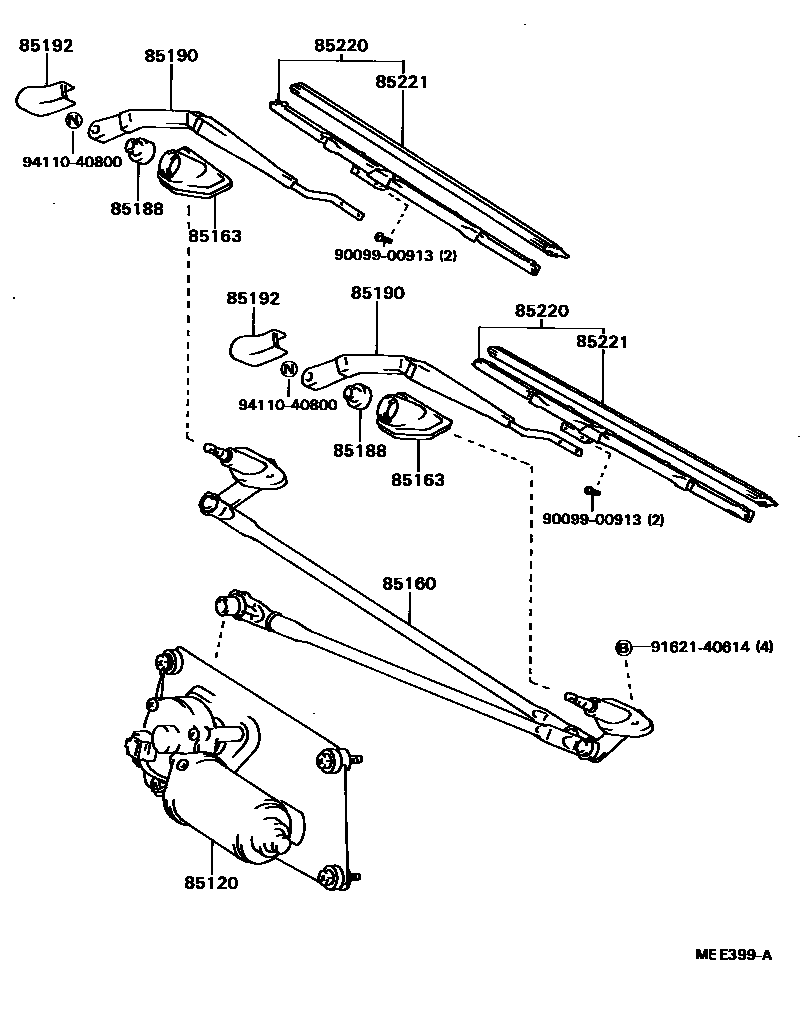

WINDSHIELD WIPER

85120MOTOR AND BRACKET ASSY, WINDSHIELD WIPER

main85120-87608iLD2#198405-198902

sub85120-87612

main85120-87612iLD2#198902-199002

sub85120-87616

85160LINK ASSY, WINDSHIELD WIPER

main85160-87605iLD2#..V,WG198405-199002

main85160-87606iLD20..TP198405-198911

85163PACKING, WINDSHIELD WIPER PIVOT

main85176-87601iLD2#198405-199002

85188CAP, WINDSHIELD WIPER PIVOT, NO.1

main85247-87601iLD2#198405-199002

85190ARM ASSY, WINDSHIELD WIPER

main85190-87605iLD2#..V,WG198405-199002

RH

main85190-87606iLD20..TP198405-198911

RH

main85210-87601iLD2#..V,WG198405-199002

LH

main85210-87602iLD20..TP198405-198911

LH

85192COVER, WINDSHIELD WIPER ARM

main85192-87601iLD2#198405-199002

85220BLADE ASSY, WINDSHIELD WIPER

main85220-22320iLD20..TP198405-198911

LH

sub85220-22321

main85220-22380iLD20..TP198405-198911

RH

sub85222-60050

main85220-22380iLD2#..V,WG198405-199002

sub85222-60050

main85220-22550iLD20..TP198610-198911

WINTER BLADE,LH

sub85291-22010

main85220-90K00iLD20..TP198610-198911

WINTER BLADE,RH

sub85291-90K00

main85220-90K00iLD2#..V,WG198610-199002

WINTER BLADE

sub85291-90K00

85221BLADE, WINDSHIELD WIPER

main85221-22090iLD20..TP198405-198911

LH

main85221-89103iLD20..TP198405-198911

RH

sub85214-12H90

main85221-89103iLD2#..V,WG198405-199002

sub85214-12H90

9009900913

main90099-00913

9162140614

main91621-40614

9411040800

main94110-40800

11 parts on this diagram · 1 diagram in section
