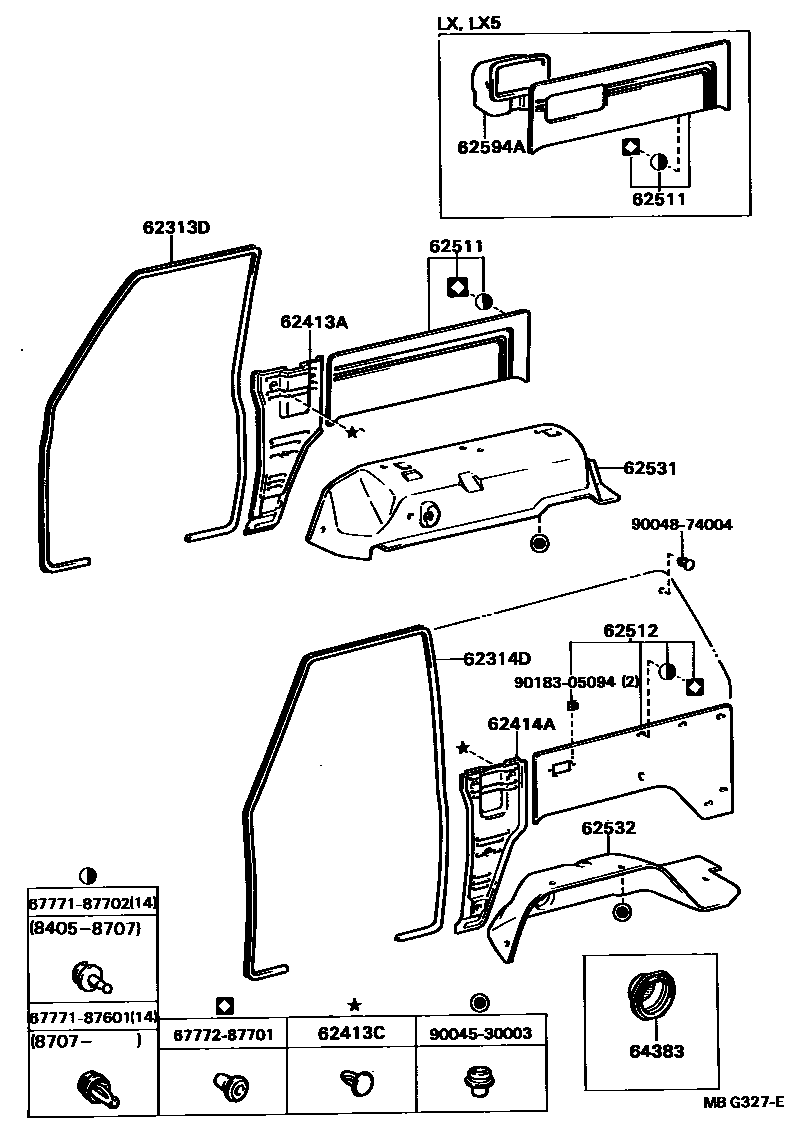

INSIDE TRIM BOARD

0001 1 0003 1 0004 1

62313DTRIM, FRONT DOOR OPENING, RH

main62313-87601iLD20..V¥2,700198405-198409

sub62313-87605¥2,710

main62313-87605iLD2#..V,WG¥2,710198409-199002

62314DTRIM, FRONT DOOR OPENING, LH

main62313-87601iLD20..V¥2,700198405-198409

sub62313-87605¥2,710

main62313-87605iLD2#..V,WG¥2,710198409-199002

62413AGARNISH, CENTER PILLAR, LOWER RH

main62413-87602iLD20..LX198405-198509

main62413-87607-03iLD2#..LX,LX5,SX5198509-198709

GRAY,GRAY

main62413-87611-03iLD2#..LX,LX5,SX5198709-199002

GRAY,LIGHT GRAY

62413CCLIP (FOR CENTER LOWER GARNISH)

main90467-10017-13iLD2#198405-199002

GRAY,GRAY

sub90467-10017¥190

main90467-10017-33iLD2#198811-199002

LIGHT GRAY,LIGHT GRAY

sub90467-10017¥190

62414AGARNISH, CENTER PILLAR, LOWER LH

main62414-87602iLD20..LX198405-198509

main62414-87607-03iLD2#..LX,LX5,SX5198509-198709

GRAY,GRAY

main62414-87611-03iLD2#..LX,LX5,SX5198709-199002

GRAY,LIGHT GRAY

62511BOARD, QUARTER INSIDE TRIM, RH

main62510-87601iLD20..V..DX¥4,760198405-198709

sub62510-87614¥4,760

main62510-87603iLD20..TP..DX¥5,500198405-198709

main62510-87609iLD2#..(V,WG)..(LX,LX5)¥6,000198405-198709

main62510-87610iLD20..TP..LX¥6,700198405-198709

main62510-87621-03iLD21..SX5198509-198709

GRAY,GRAY

sub62510-87622¥6,000

main62510-87638-03iLD2#..(V,WG)..(LX,LX5)198709-199002

GRAY,GRAY

main62510-87639-03iLD20..TP..LX198709-198911

GRAY,GRAY

main62510-87641-03iLD21..SX5198709-199002

GRAY,GRAY

main62510-87650-03iLD20..V..DX198709-198911

GRAY,GRAY

main62510-87651-03iLD20..TP..DX198709-198911

GRAY,GRAY

62512BOARD, QUARTER INSIDE TRIM, LH

main62520-87602iLD20..V..DX¥5,500198405-198709

main62520-87603iLD2#..(V,WG)..(LX,LX5)¥6,800198405-198709

main62520-87605iLD20..TP..DX¥6,800198405-198709

main62520-87606iLD20..TP..LX¥7,800198405-198709

main62520-87619-03iLD21..SX5198509-198709

GRAY,GRAY

sub62520-87620¥6,700

main62520-87635-03iLD20..V..DX198709-198911

GRAY,GRAY

main62520-87636-03iLD2#..(V,WG)..(LX,LX5)198709-199002

GRAY,GRAY

main62520-87638-03iLD20..TP..DX198709-198911

GRAY,GRAY

main62520-87639-03iLD20..TP..LX198709-198911

GRAY,GRAY

main62520-87641-03iLD21..SX5198709-199002

GRAY,GRAY

62531COVER, WHEEL HOUSE TRIM, RH

main62610-87608-02iLD20..V..LX198405-198805

RED,RED

main62610-87608-04iLD20..V..LX198405-198805

BLUE,BLUE

main62610-87613-02iLD20..TP..TD198409-198805

RED,RED

main62610-87613-04iLD20..TP..TD198409-198805

BLUE,BLUE

main62610-87620-02iLD21..LX5198509-198805

RED,RED

main62610-87620-04iLD21..LX5198509-198805

BLUE,BLUE

main62610-87621-03iLD21..SX5198509-198805

GRAY,GRAY

main62610-87621-04iLD21..SX5198509-198805

BLUE,BLUE

main62610-87634-03iLD20..V..LX198805-198911

GRAY,GRAY

main62610-87634-04iLD20..V..LX198805-198911

BLUE,BLUE

main62610-87642-03iLD20..TP..TD198805-198911

GRAY,GRAY

main62610-87642-04iLD20..TP..TD198805-198911

BLUE

main62610-87643-03iLD21..LX5198805-199002

GRAY,GRAY

main62610-87643-04iLD21..LX5198805-199002

BLUE,BLUE

main62610-87644-03iLD21..SX5198805-199002

GRAY,GRAY

main62610-87644-04iLD21..SX5198805-199002

BLUE,BLUE

62532COVER, WHEEL HOUSE TRIM, LH

main62620-87602-02iLD20..V..LX198405-198805

RED,RED

main62620-87602-04iLD20..V..LX198405-198805

BLUE,BLUE

main62620-87613-02iLD20..TP..TD198409-198805

RED,RED

main62620-87613-04iLD20..TP..TD198409-198805

BLUE,BLUE

main62620-87620-02iLD21..LX5198509-198805

RED,RED

main62620-87620-04iLD21..LX5198509-198805

BLUE,BLUE

main62620-87621-03iLD21..SX5198509-198805

GRAY,GRAY

main62620-87621-04iLD21..SX5198509-198805

BLUE,BLUE

main62620-87634-03iLD20..V..LX198805-198911

GRAY,GRAY

main62620-87634-04iLD20..V..LX198805-198911

BLUE,BLUE

main62620-87642-03iLD20..TP..TD198805-198911

GRAY,GRAY

main62620-87642-04iLD20..TP..TD198805-198911

BLUE

main62620-87643-03iLD21..LX5198805-199002

GRAY,GRAY

main62620-87643-04iLD21..LX5198805-199002

BLUE,BLUE

main62620-87644-03iLD21..SX5198805-199002

GRAY,GRAY

main62620-87644-04iLD21..SX5198805-199002

BLUE,BLUE

62594APOCKET, QUARTER TRIM, NO.1

main62690-87601iLD2#..LX,LX5,SX5¥5,800198405-199002

64383GRILLE, SPEAKER, REAR

main64383-87601iLD20198409-198509

main64383-87603iLD2#¥3,520198509-199002

6777187601WEATHERSTRIP, BACK DOOR TRIM, RH

main67771-87601¥180

6777187702WEATHERSTRIP, BACK DOOR TRIM, RH

main67771-87702¥180

6777287701WEATHERSTRIP, BACK DOOR TRIM, LH

main67772-87701¥180

9004530003

main90045-30003¥90

9004874004

main90048-74004¥50

9018305094

main90183-05094¥90

17 parts on this diagram · 3 diagrams in section
