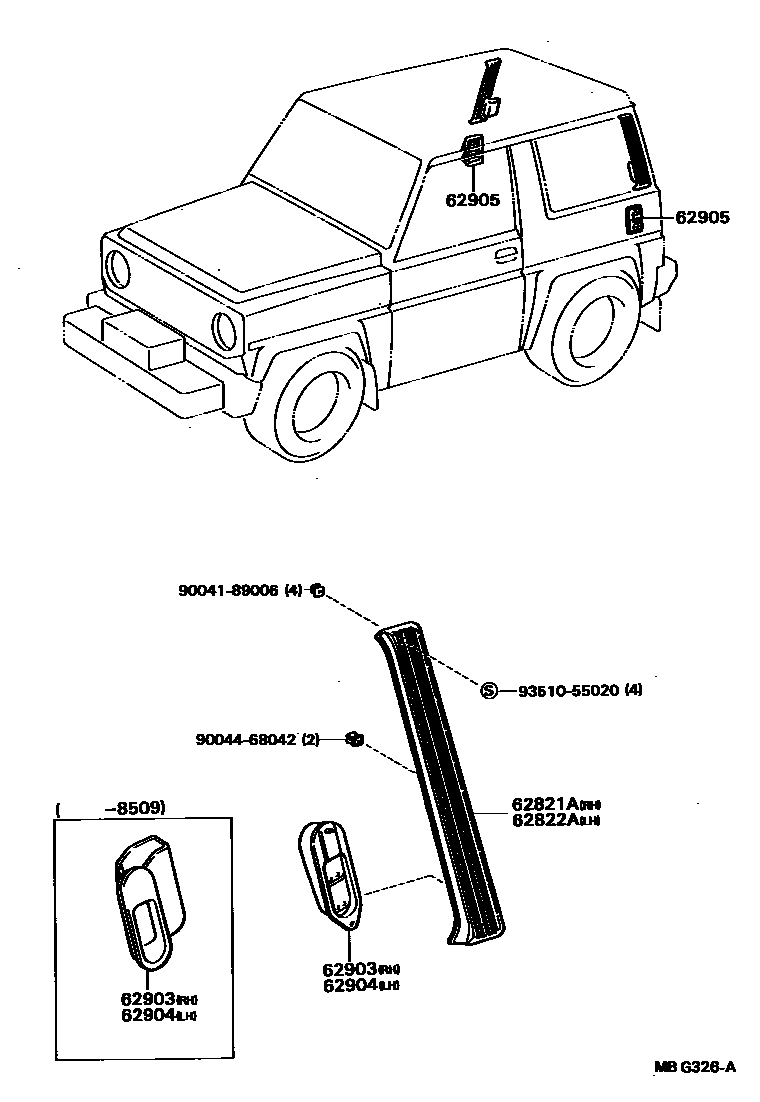

REAR VENTILATOR & ROOF VENTILATOR

62821AGARNISH, QUARTER VENTILATION LOUVER, RH

main62821-87601iLD2#..V,WG198405-199002

62822AGARNISH, QUARTER VENTILATION LOUVER, LH

main62822-87601iLD2#..V,WG198405-199002

62903DUCT SUB-ASSY, QUARTER VENTILATOR, RH

main62930-87601iLD2#..V,WG198509-199002

main62931-87602iLD20..V198405-198509

62904DUCT SUB-ASSY, QUARTER VENTILATOR, LH

main62930-87601iLD2#..V,WG198509-199002

main62932-87601iLD20..V198405-198509

62905LOUVER, QUARTER VENTILATION

main62905-87601-03iLD21..SX5198509-199002

GRAY,GRAY

9004189006

main90041-89006

9004468042

main90044-68042

9351055020

main93510-55020

8 parts on this diagram · 1 diagram in section
