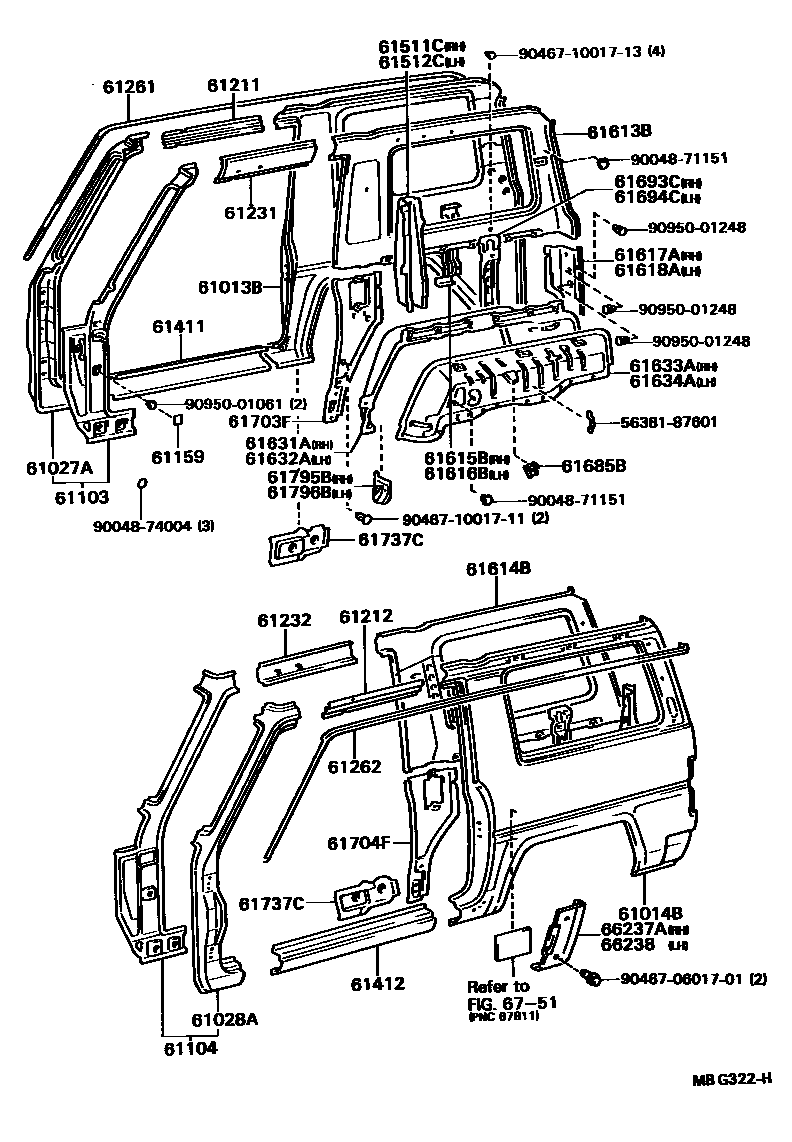

SIDE MEMBER
61013BPANEL SUB-ASSY, QUARTER, OUTER RH
61014BPANEL SUB-ASSY, QUARTER, OUTER LH
61027APILLAR SUB-ASSY, FRONT BODY, OUTER RH
61028APILLAR SUB-ASSY, FRONT BODY, OUTER LH
61103PILLAR SUB-ASSY, FRONT BODY, RH
61104PILLAR SUB-ASSY, FRONT BODY, LH
61159COVER, FRONT PILLAR SERVICE HOLE
61211RAIL, ROOF SIDE, OUTER RH
61212RAIL, ROOF SIDE, OUTER LH
61231RAIL, ROOF SIDE, INNER RH
61232RAIL, ROOF SIDE, INNER LH
61261CHANNEL, ROOF DRIP, RH
61262CHANNEL, ROOF DRIP, LH
61411PANEL, ROCKER, OUTER RH
61412PANEL, ROCKER, OUTER LH
61511CREINFORCEMENT, QUARTER LOCK PILLAR, RH
61512CREINFORCEMENT, QUARTER LOCK PILLAR, LH
61613BPANEL, QUARTER, INNER FRONT RH
61614BPANEL, QUARTER, INNER FRONT LH
61615BREINFORCEMENT, QUARTER PANEL, OUTER FRONT
61616BREINFORCEMENT, QUARTER PANEL, OUTER REAR
61685BBRACKET, REAR SEATBACK STOPPER
61693CRETAINER, REAR SEATBACK SET, RH
61694CRETAINER, REAR SEATBACK SET, LH
61703FPANEL SUB-ASSY, QUARTER, INNER FRONT RH
61704FPANEL SUB-ASSY, QUARTER, INNER FRONT LH
61737CREINFORCEMENT, QUARTER, INNER
RH
LH
61795BEXTENSION, QUARTER WHEEL HOUSE, RH
61796BEXTENSION, QUARTER WHEEL HOUSE, LH
66237APROTECTOR, QUARTER PANEL OUTER, RH
66238PROTECTOR, QUARTER PANEL OUTER, LH
6751
5638187601
main56381-87601
9004871151
main90048-71151
9004874004
main90048-74004
904670601701
main90467-0601701
904671001711
main90467-1001711
904671001713
main90467-1001713
9095001061
main90950-01061
9095001248
main90950-01248
46 parts on this diagram · 4 diagrams in section
