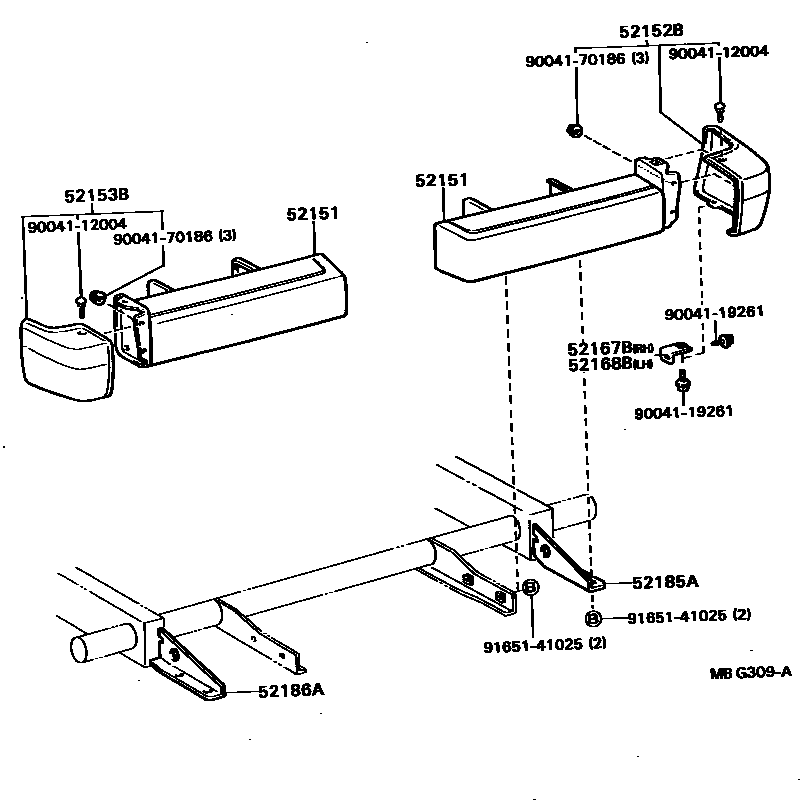

REAR BUMPER & BUMPER STAY

52151BUMPER ASSY, REAR

main52106-87601iLD2#198405-198709

RH

main52106-87607iLD21..SX5198709-198907

RH

main52106-87617iLD2#..DX,LX,LX5198907-199002

RH

main52106-87620iLD21..SX5198907-199002

RH

main52107-87601iLD2#..DX,LX,LX5198709-198907

LH

main52107-87608iLD21..SX5198709-198907

LH

main52107-87618iLD2#..DX,LX,LX5198907-199002

LH

main52107-87621iLD21..SX5198907-199002

LH

52152BEXTENSION, REAR BUMPER, RH

main52152-87680iLD2#198405-199002

52153BEXTENSION, REAR BUMPER, LH

main52153-87680iLD2#198405-199002

52167BBRACKET, REAR BUMPER EXTENSION MOUNTING, RH

main52167-87601iLD2#198405-199002

52168BBRACKET, REAR BUMPER EXTENSION MOUNTING, LH

main52167-87601iLD2#198405-199002

52185ABRACKET, REAR BUMPER SIDE, RH

main52182-87605iLD2#198405-199002

52186ABRACKET, REAR BUMPER SIDE, LH

main52183-87605iLD2#198405-199002

9004112004

main90041-12004

9004119261

main90041-19261

9004170186

main90041-70186

9165141025

main91651-41025

11 parts on this diagram · 1 diagram in section
