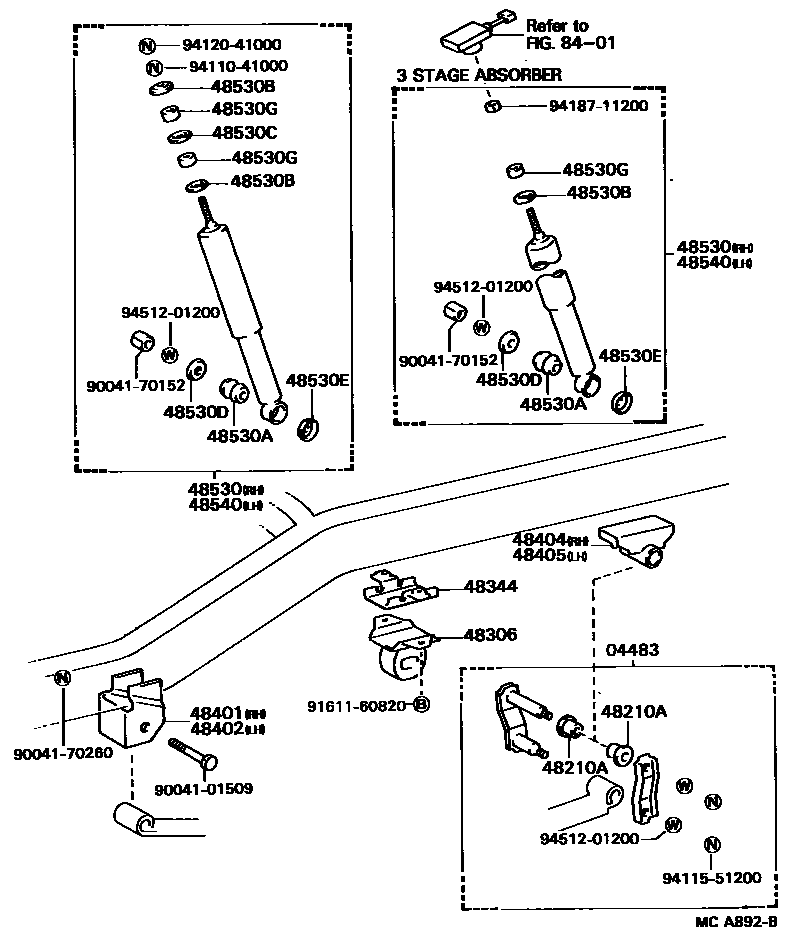

REAR SPRING & SHOCK ABSORBER
04483SHACKLE KIT, REAR SPRING
48210SPRING ASSY, REAR RH
48210ABUSH(FOR REAR SPRING SHACKLE UPPER)
48306BUMPER SUB-ASSY, REAR SPRING
48344STOPPER, BUMPER, REAR
48401BRACKET SUB-ASSY, REAR SPRING, FRONT RH
48402BRACKET SUB-ASSY, REAR SPRING, FRONT LH
48404BRACKET SUB-ASSY, REAR SPRING, REAR RH
48405BRACKET SUB-ASSY, REAR SPRING, REAR LH
48530ABUSH(FOR REAR SHOCK ABSORBER)
48530BWASHER, REAR SHOCK ABSORBER CUSHION, NO.1
3 STAGE ABSORBER
48530CWASHER, REAR SHOCK ABSORBER CUSHION, NO.2
48530DWASHER, REAR SHOCK ABSORBER CUSHION, NO.3
48530EWASHER, REAR SHOCK ABSORBER CUSHION, NO.4
48530GCUSHION, REAR SHOCK ABSORBER, NO.1
3 STAGE ABSORBER
8401
9004101509
main90041-01509
9004170152
main90041-70152
9004170260
main90041-70260
9161160820
main91611-60820
9411041000
main94110-41000
9411551200
main94115-51200
9412041000
main94120-41000
9418711200
main94187-11200
9451201200
main94512-01200
27 parts on this diagram · 2 diagrams in section
