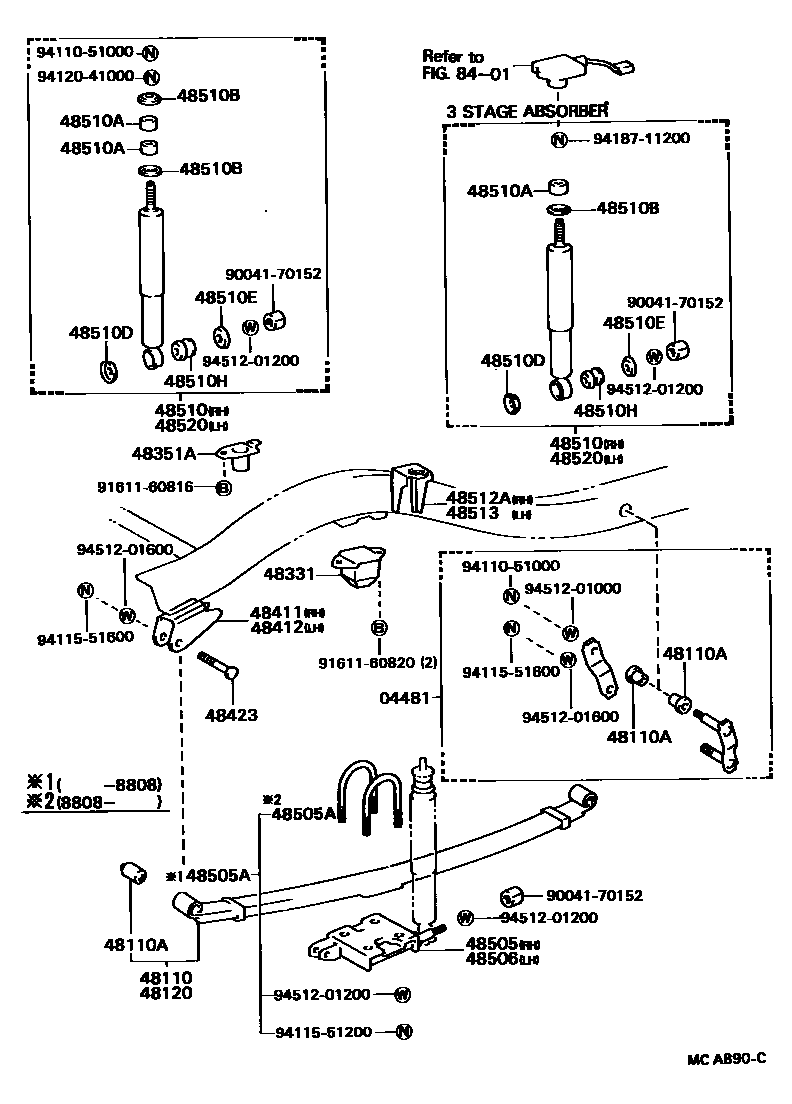

FRONT SPRING & SHOCK ABSORBER

0001 1 0002 1

04481SHACKLE KIT, FRONT SPRING

main04481-87603×2iLD2#198405-199002

48110SPRING ASSY, FRONT, RH

main48110-87628iLD2#198405-198910

main48110-87630iLD2#198405-198910

W/WINCH

main48110-87645iLD2#198910-199002

sub48110-87660

main48110-87647iLD2#198910-199002

W/WINCH

48110ABUSH(FOR FRONT SPRING SHACKLE)

main90043-85087×4iLD2#198405-198810

L=66.0

main90043-85088×4iLD2#198405-199002

L=44.2

main90043-85122×4iLD2#198810-199002

L=66.0

48120SPRING ASSY, FRONT, LH

main48110-87629iLD2#198405-198910

main48110-87631iLD2#198405-199002

W/WINCH

main48110-87646iLD2#198910-199002

48331BUMPER, FRONT SPRING, NO.1

main48331-87602×2iLD2#198405-199002

48351ABUMPER, DIFFERENTIAL CARRIER

main48351-87601iLD2#198405-199002

48411BRACKET, FRONT SPRING(FOR FRONT RH)

main48411-87603iLD2#198405-199002

48412BRACKET, FRONT SPRING(FOR FRONT LH)

main48411-87603iLD2#198405-199002

48423PIN, FRONT SPRING BRACKET

main48423-87602×2iLD2#198405-199002

sub48423-87603

48505SEAT, FRONT SPRING, RH

main48044-87606iLD2#198405-199002

48505ABOLT, U(FOR FRONT SPRING)

main90118-87006×3iLD2#198405-198808

L=136.5,RH OUTSIDE & LH

sub90041-17065

sub94115-51200

sub94512-01200

main90118-87007×3iLD2#198808-198911

L=136.5,RH OUTSIDE & LH

sub90041-17065

sub94115-51200

sub94512-01200

main90118-87008iLD2#198405-198808

L=143.0,RH INSIDE

sub90041-17067

sub94115-51200

sub94512-01200

main90118-87009iLD2#198808-198911

L=143.0,RH INSIDE

sub90041-17067

sub94115-41200

sub94512-01200

48506SEAT, FRONT SPRING, LH

main48045-87606iLD2#198405-199002

48510ABSORBER ASSY, SHOCK, FRONT RH

main48510-69035iLD21198911-199002

3 STAGE ABSORBER

sub48510-69036

main48510-87606iLD2#..DX,LX5198511-198802

main48510-87607iLD2#..LX,LX5,SX5198511-198802

3 STAGE ABSORBER

main48510-87613iLD20..LX198910-198911

3 STAGE ABSORBER

main48510-87680iLD2#..DX,LX5198509-198511

sub48510-69105

main48510-87681iLD20..LX198405-198509

3 STAGE ABSORBER

sub48510-69115

48510ACUSHION, FRONT SHOCK ABSORBER

main90045-40106×2iLD20..LX198405-198509

3 STAGE ABSORBER

main90948-01003×4iLD2#..DX,LX5198509-199002

48510BRETAINER, CUSHION, NO.1(FOR FRONT SHOCK ABSORBER)

main90042-09100×2iLD20..LX198405-198509

3 STAGE ABSORBER

main90948-02002×4iLD20..DSL198405-198509

48510DWASHER, FRONT SHOCK ABSORBER CUSHION, NO.1

main90042-09105×2iLD2#198812-199002

main90948-03004×2iLD2#198405-198812

48510EWASHER, FRONT SHOCK ABSORBER CUSHION, NO.2

main90042-09119×2iLD2#198812-199002

main90948-03003×2iLD2#198405-198812

48510HBUSH(FOR FRONT SHOCK ABSORBER)

main90043-85123×2iLD2#198910-199002

main90385-16001×2iLD20198405-198506

main90385-16004×2iLD2#198506-198910

48512ABRACKET, FRONT SHOCK ABSORBER, UPPER RH

main48512-87605iLD2#198405-199002

48513BRACKET, FRONT SHOCK ABSORBER, UPPER LH

main48513-87601iLD2#198405-199002

48520ABSORBER ASSY, SHOCK, FRONT LH

main48510-69035iLD21198911-199002

3 STAGE ABSORBER

sub48510-69036

main48510-87606iLD2#..DX,LX5198511-198802

main48510-87607iLD2#..LX,LX5,SX5198511-198802

3 STAGE ABSORBER

main48510-87613iLD20..LX198910-198911

3 STAGE ABSORBER

main48510-87680iLD2#..DX,LX5198509-198511

sub48510-69105

main48510-87681iLD20..LX198802-198910

3 STAGE ABSORBER

sub48510-69115

8401

9004170152

main90041-70152

9161160816

main91611-60816

9161160820

main91611-60820

9411051000

main94110-51000

9411551200

main94115-51200

9411551600

main94115-51600

9412041000

main94120-41000

9418711200

main94187-11200

9451201000

main94512-01000

9451201200

main94512-01200

9451201600

main94512-01600

33 parts on this diagram · 2 diagrams in section
