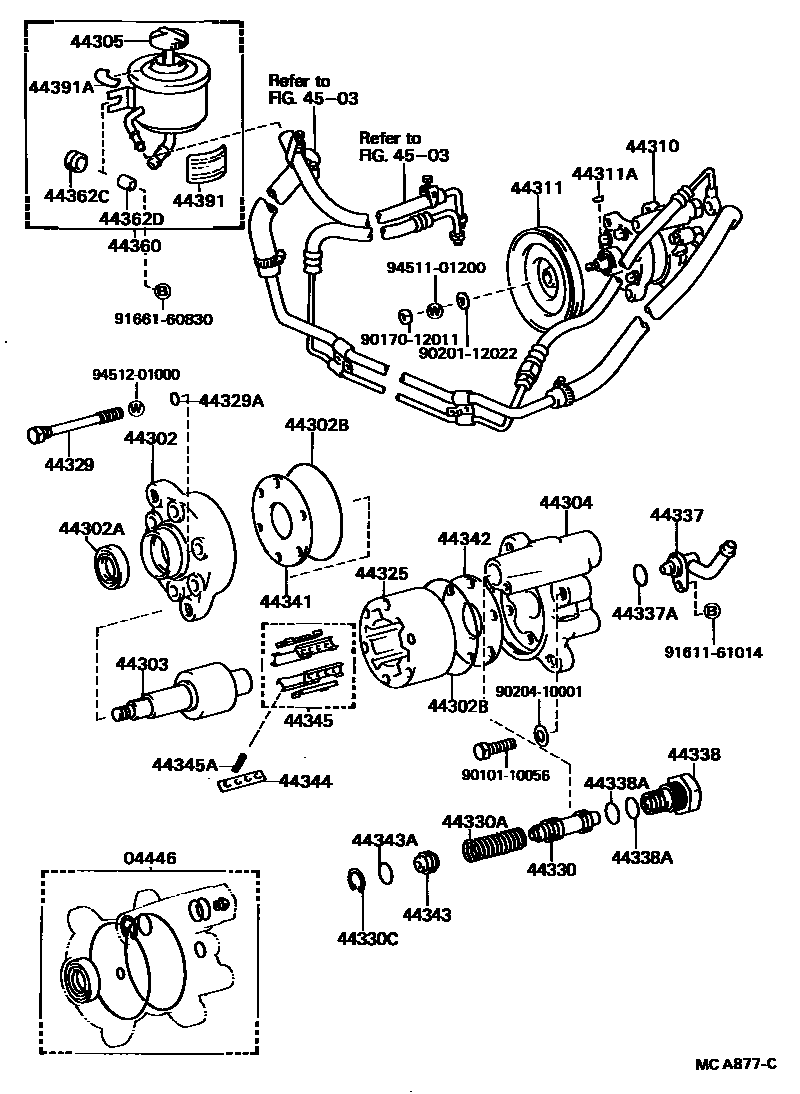

VANE PUMP & RESERVOIR (POWER STEERING)
04446GASKET KIT, POWER STEERING PUMP
44302HOUSING SUB-ASSY, VANE PUMP, FRONT
44302ASEAL, OIL, NO.1(FOR VANE PUMP HOUSING)
44302BRING, O, NO.1(FOR VANE PUMP HOUSING)
44303SHAFT SUB-ASSY, W/ROTOR
NO.MARK
MARK 2
44304HOUSING SUB-ASSY, VANE PUMP, REAR
44311PULLEY, VANE PUMP
44311AKEY, VANE PUMP PULLEY
44329BOLT, VANE PUMP FRONT HOUSING & REAR HOUSING SET
44329ARING, O(FOR VANE PUMP HOUSING SET BOLT)
44330VALVE ASSY, FLOW CONTROL
sub44330-12131
sub44330-12141
sub44330-12151
sub44330-12161
sub44330-12171
sub44330-12181
44330ASPRING, COMPRESSION(FOR FLOW CONTROL VALVE)
44330CRING, SNAP(FOR FLOW CONTROL VALVE)
44337UNION, POWER STEERING SUCTION PORT
44337ARING, O(FOR POWER STEERING SUCTION PORT)
44338ARING, O(FOR PRESSURE PORT UNION)
44341PLATE, VANE PUMP SIDE, FRONT
44342PLATE, VANE PUMP SIDE, REAR
44343SEAT, FLOW CONTROL SPRING
44343ARING, O(FOR FLOW CONTROL SPRING SEAT)
44344SEAT, SPRING(FOR VANE PUMP)
44345ASPRING, COMPRESSION(FOR VANE PUMP SLIPPER)
44360RESERVOIR ASSY, VANE PUMP OIL
44362CCUSHION(FOR VANE PUMP OIL RESERVOIR)
44362DSPACER(FOR VANE PUMP OIL RESERVOIR)
44391PLATE, POWER STEERING OIL RESERVOIR CAUTION
44391APLATE, OIL RESERVOIR CAUTION
4503
9010110056
main90101-10056
9017012011
main90170-12011
9020112022
main90201-12022
9020410001
main90204-10001
9161161014
main91611-61014
9166160830
main91661-60830
9451101200
main94511-01200
9451201000
main94512-01000
41 parts on this diagram · 1 diagram in section
