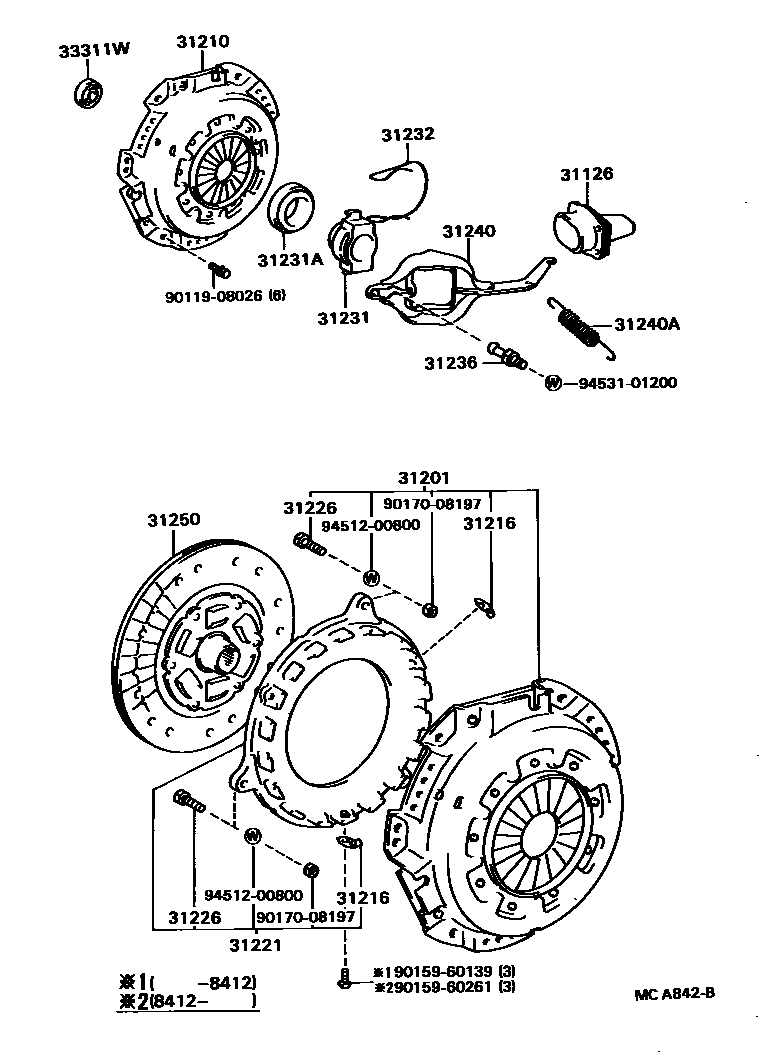

CLUTCH & RELEASE FORK

31126BOOT, CLUTCH RELEASE FORK

main31126-87602iLD2#198405-199002

31201COVER SUB-ASSY, CLUTCH

main31201-19095iLD20..DSL198405-198911

sub31201-14110

main31201-29125iLD2#..TD198409-198808

31210COVER ASSY, CLUTCH

main31210-14130iLD20..DSL198405-198808

main31210-24020iLD2#..TD198409-198808

sub31210-35130

main31210-35090iLD20..DSL198808-198911

sub31210-22100

main31210-35110iLD2#..TD198808-199002

sub31210-53040

31216SPRING, CLUTCH RETRACTING

main31216-30010×3iLD2#198405-199002

31221PLATE, CLUTCH PRESSURE

main31221-29055iLD2#..TD198409-198808

main31221-39056iLD20..DSL198405-198911

sub31221-36025

31226BOLT, CLUTCH PRESSURE PLATE

main90101-08022×3iLD2#198405-199002

31231HUB, CLUTCH RELEASE BEARING

main31231-87602iLD2#198405-199002

31231ABEARING, BALL(FOR CLUTCH RELEASE HUB)

main90363-40022iLD2#198405-199002

31232CLIP OR SPRING, RELEASE BEARING HUB

main31232-87604iLD20198405-198409

main31232-87606iLD20198409-198507

main31232-87607iLD2#198507-199002

31236BALL, RELEASE FORK

main31236-87304iLD20198405-198410

main31236-87602iLD2#198410-199002

31240FORK ASSY, CLUTCH RELEASE

main31204-87603iLD20198405-198409

main31204-87604iLD2#198409-199002

31240ASPRING, TENSION(FOR CLUTCH RELEASE FORK RETURN)

main90045-06168iLD2#198405-199002

31250DISC ASSY, CLUTCH

main31250-26050iLD20198405-198408

main31250-26051iLD20..DSL198408-198609

sub31250-26052

main31250-26150iLD2#198709-198804

main31250-26151iLD2#198804-199002

sub31250-26152

main31250-30350iLD2#..TD198409-198605

main31250-60150iLD2#..TD198605-198609

sub31250-60151

main31250-60160iLD2#198609-198709

33311WBEARING (FOR INPUT SHAFT)

main90363-12002iLD2#198405-199002

sub90363-12024

9011908026

main90119-08026

9015960139

main90159-60139

9015960261

main90159-60261

9017008197

main90170-08197

9451200800

main94512-00800

9453101200

main94531-01200

20 parts on this diagram · 1 diagram in section
