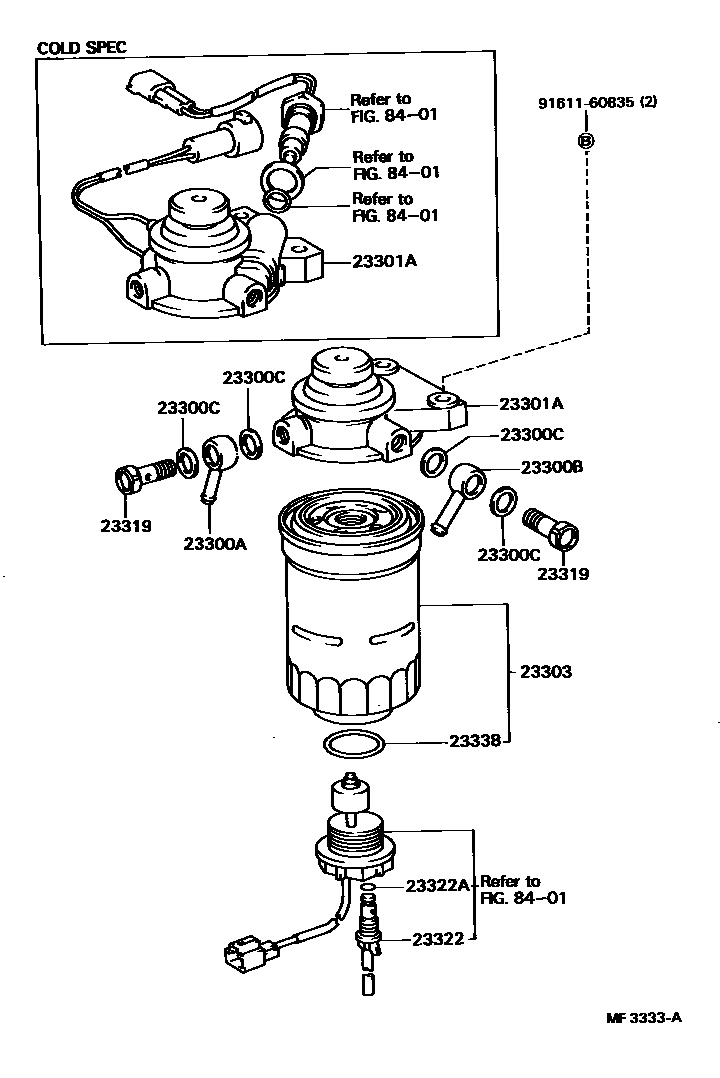

FUEL FILTER

0001 1 0002 1

23300AUNION, NIPPLE(FOR FUEL FILTER INLET)

main90405-08016i2L#..LD20198405-198509

23300BUNION, NIPPLE(FOR FUEL FILTER OUTLET)

main90405-08016i2L#..LD20198405-198509

23300CGASKET, NIPPLE UNION(FOR FUEL)

main22447-47030×4i2L#..LD20198405-198509

23301ACAP ASSY, FUEL FILTER

main23301-54030i2L#..LD20198405-198509

COLD SPEC

main23301-54160i2L#..LD2#198509-199002

main23301-54170i2L#..LD2#198509-199002

COLD SPEC

main23301-64010i2L#..LD20198405-198509

23303ELEMENT SUB-ASSY, FUEL FILTER

main23303-64010i2L#..LD2#198405-199002

23319SCREW, FUEL PIPE FOLLOW

main90099-18011×2i2L#..LD20198405-198509

23322PLUG, DRAIN(FOR FUEL FILTER)

main23322-64010i2L#..LD2#198405-199002

23322ARING, O(FOR DRAIN PLUG)

main23344-54010i2L#..LD2#198405-199002

23338GASKET(FOR WARNING SWITCH)

main23344-64010i2L#..LD2#198405-199002

8401

9161160835

main91611-60835

11 parts on this diagram · 2 diagrams in section
