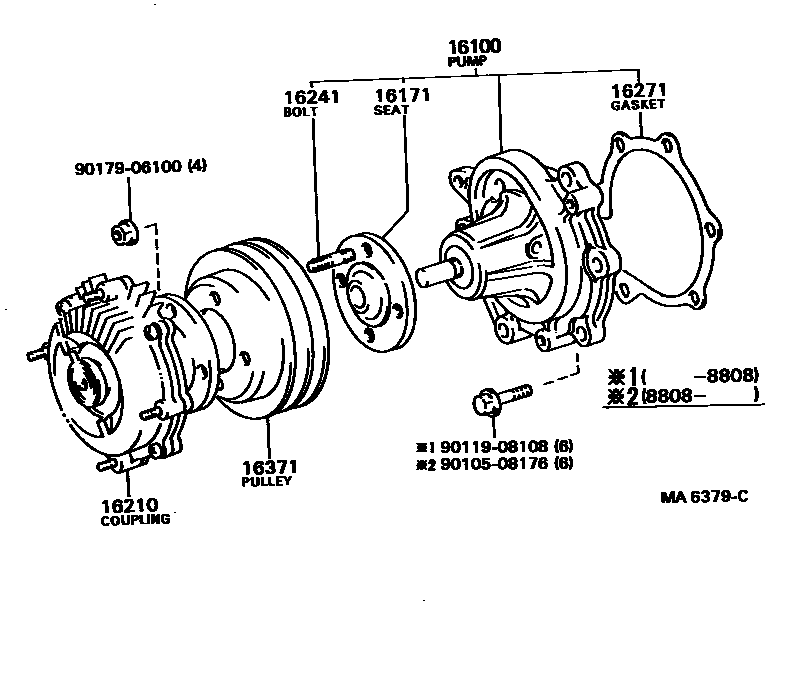

WATER PUMP

16100PUMP ASSY, ENGINE WATER

main16100-59137i2L#..LD2#198405-199001

main16100-59138i2LT..LD21199001-199002

sub16100-59139

16171SEAT, WATER PUMP PULLEY

main16171-54011i2L#..LD2#198405-199002

16210COUPLING ASSY, FLUID

main16210-54060i2L#..LD2#198405-198709

main16210-54070i2L#..LD2#198709-199002

16241BOLT, STUD(FOR WATER PUMP COUPLING)

main16193-13020×4i2L#..LD2#198405-199002

16271GASKET, WATER PUMP

main16271-54012i2L#..LD2#198405-198912

sub16271-54013

main16271-54014i2LT..LD21198912-199002

16371PULLEY, FAN

main16371-54020i2L#..LD2#198405-199002

9010508176

main90105-08176

9011908108

main90119-08108

9017906100

main90179-06100

9 parts on this diagram · 1 diagram in section
