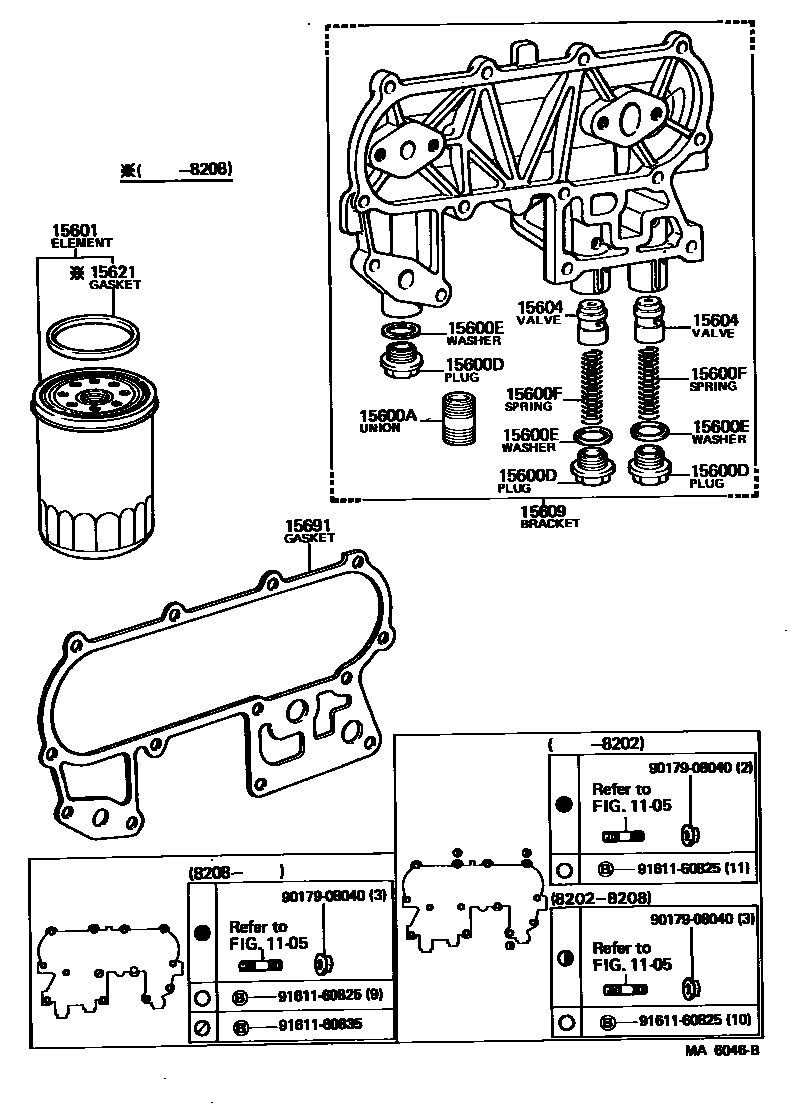

OIL FILTER

1105

15600AUNION(FOR OIL FILTER)

main15116-54010iL..LD10198003-198404

15600DPLUG(FOR OIL FILTER)

main90341-18001×3iL..LD10198003-198206

main90341-18015×3iL..LD10198206-198404

15600EWASHER(FOR OIL FILTER)

main90430-18001×3iL..LD10198003-198404

15600FSPRING, COMPRESSION(FOR OIL FILTER)

main90501-16026×2iL..LD10198003-198404

15601FILTER SUB-ASSY, OIL

main15600-41010iL..LD10198003-198404

sub90915-40002

15604VALVE SUB-ASSY, OIL SAFETY

main15131-54010×2iL..LD10198003-198404

15609BRACKET SUB-ASSY, OIL FILTER

main15609-54010iL..LD10198003-198205

sub32924-26011

sub91611-60835

main15609-54011iL..LD10198205-198404

sub15609-54012

sub32924-26012

sub91611-60835

15621GASKET, OIL FILTER BODY

main15621-41010iL..LD10198003-198208

15691GASKET, OIL FILTER

main15691-54010iL..LD10198003-198108

main15691-54011iL..LD10198108-198203

main15691-54012iL..LD10198203-198404

sub15692-54020

9017908040

main90179-08040

9161160825

main91611-60825

9161160835

main91611-60835

13 parts on this diagram · 1 diagram in section
