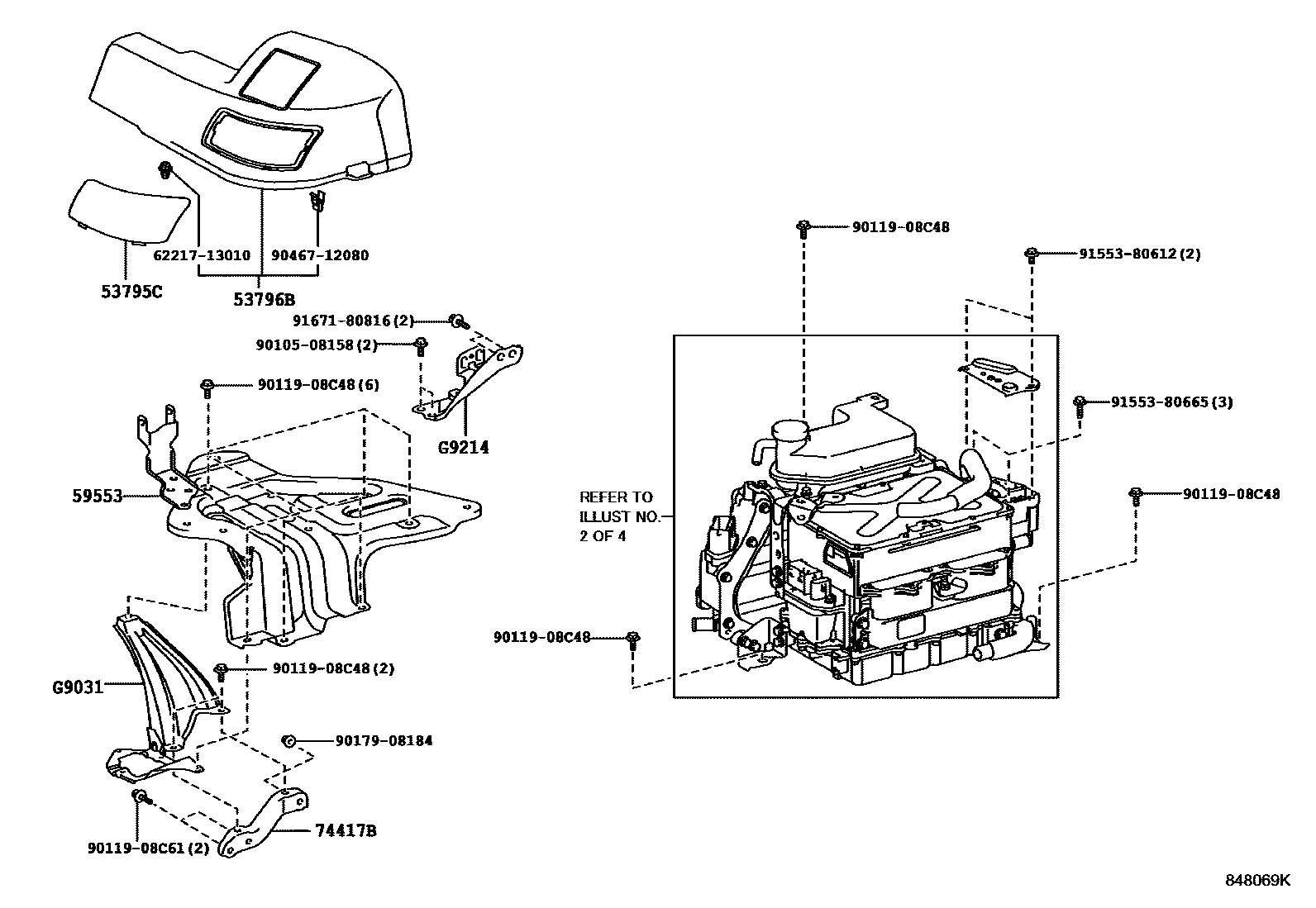

HEV INVERTER

0001 1��������������� 0002 1������ASSY 0003 1KIT���� 0004 1��������

53795CCOVER, ENGINE ROOM, SIDE

main53795-28030iAHR20..CBU200606-200812

53796BCOVER, ENGINE ROOM SIDE, LH NO.2

main53796-28040iAHR20..CBU200606-200812

59553REINFORCEMENT, INVERTER BOX, NO.1

main59553-28010iAHR20..CBU200606-200806

sub90119-08C48

main59553-28011iAHR20..CBU200806-200812

74417BBRACKET, BATTERY CARRIER

main74417-42030iAHR20..CBU200606-200812

G9031BRACKET SUB-ASSY, HV WATER PUMP

mainG903128010iAHR20..CBU200606-200812

G9214BRACKET, INVERTER, NO.1

mainG921428040iAHR20..CBU200606-200812

6221713010COVER, RAIL ROOF SIDE, INNER CENTER

main62217-13010

9010508158

main90105-08158

9011908C48

main90119-08C48

9011908C61

main90119-08C61

9017908184

main90179-08184

9046712080

main90467-12080

9155380612

main91553-80612

9155380665

main91553-80665

9167180816

main91671-80816

15 parts on this diagram · 4 diagrams in section
