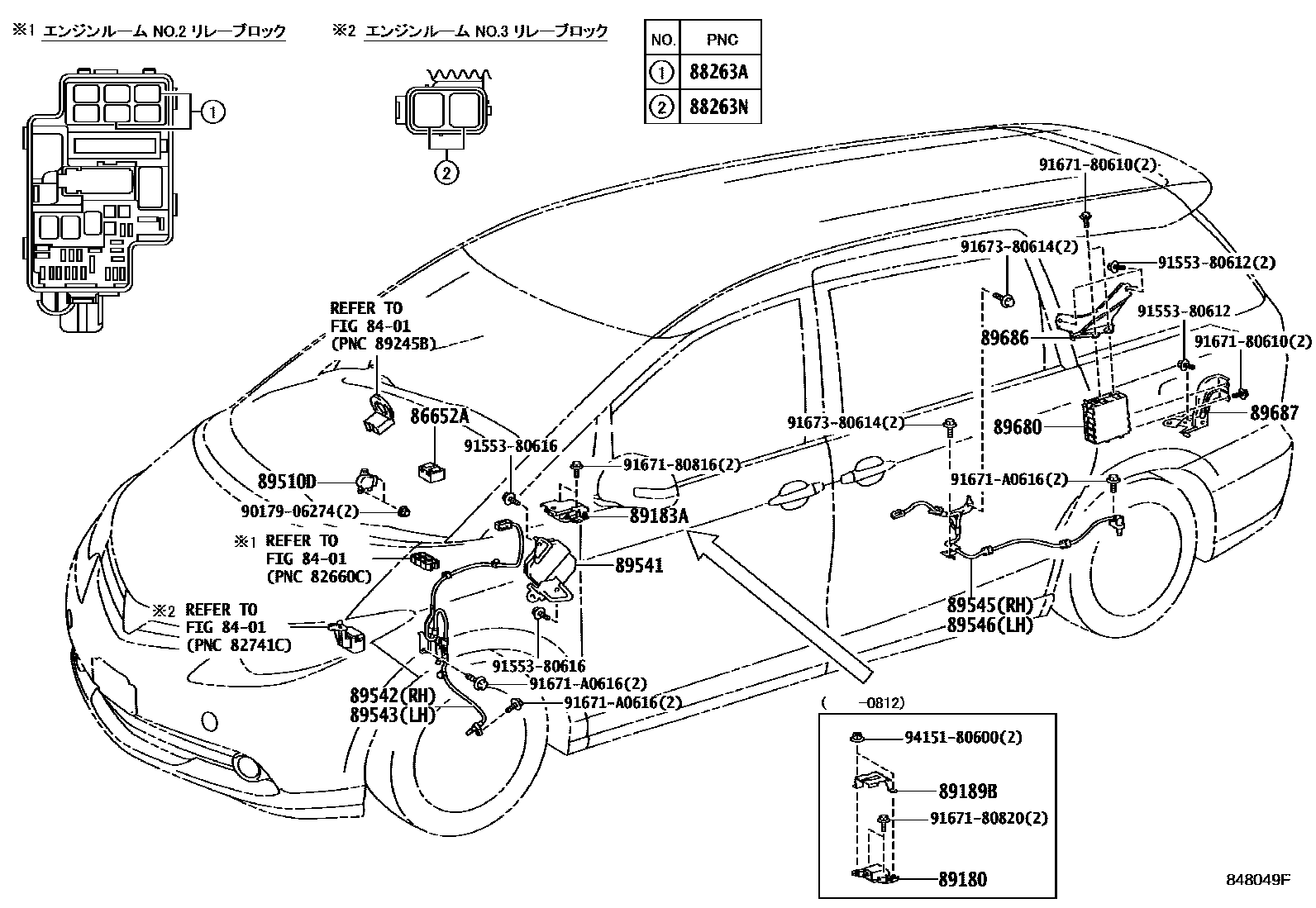

ABS & VSC

0001 1 0002 1 0003 1

8401

86652ABUZZER ASSY, SKID CONTROL

main86652-48010iAHR20..CBU200606-200812

main86652-50010iAHR20..CBU200812-201204

88263ARELAY, SKID CONTROL

main88263-32070×2iAHR20..CBU200606-200812

88263NRELAY, ABS MOTOR

main88263-21010×2iAHR20..CBU200606-200812

89180SENSOR ASSY, YAWRATE

main89180-28020iAHR20..CBU200606-200812

main89180-58020iAHR20..CBU201204-201605

89183ASENSOR, YAWRATE

main89180-28040iAHR20..CBU200812-201204

main89183-48020iAHR20..CBU201204-201605

89189BBRACKET, YAWRATE SENSOR

main89189-28010iAHR20..CBU200606-200812

main89189-58010iAHR20..CBU201605

89510DSENSOR ASSY, BRAKE PEDAL STROKE

main89510-28020iAHR20..CBU201807

main89510-30040iAHR20..CBU200606-200812

main89510-33030iAHR20..CBU201605-201807

89541COMPUTER, SKID CONTROL

main89540-28560iAHR20..CBU200812-201204

main89540-28570iAHR20..CBU200606-200812

89542SENSOR, SPEED, FRONT RH

main89542-28100iAHR20..CBU200606-200812

89543SENSOR, SPEED, FRONT LH

main89543-28100iAHR20..CBU200606-200812

89545SENSOR, SPEED, REAR RH

main89545-28180iAHR20..CBU200606-200812

89546SENSOR, SPEED, REAR LH

main89546-28170iAHR20..CBU200606-200812

89680SUPPLY ASSY, BRAKE CONTROL POWER

main89680-33010iAHR20..CBU200606-200812

89686BRACKET, BRAKE CONTROL POWER SUPPLY, NO.1

main89686-28020iAHR20..CBU200606-200812

89687BRACKET, BRAKE CONTROL POWER SUPPLY, NO.2

main89687-28020iAHR20..CBU200606-200812

9017906274

main90179-06274

9155380612

main91553-80612

9155380616

main91553-80616

9167180610

main91671-80610

9167180816

main91671-80816

9167180820

main91671-80820

91671A0616

main91671-A0616

9167380614

main91673-80614

9415180600

main94151-80600

25 parts on this diagram · 3 diagrams in section
