WIRING & CLAMP

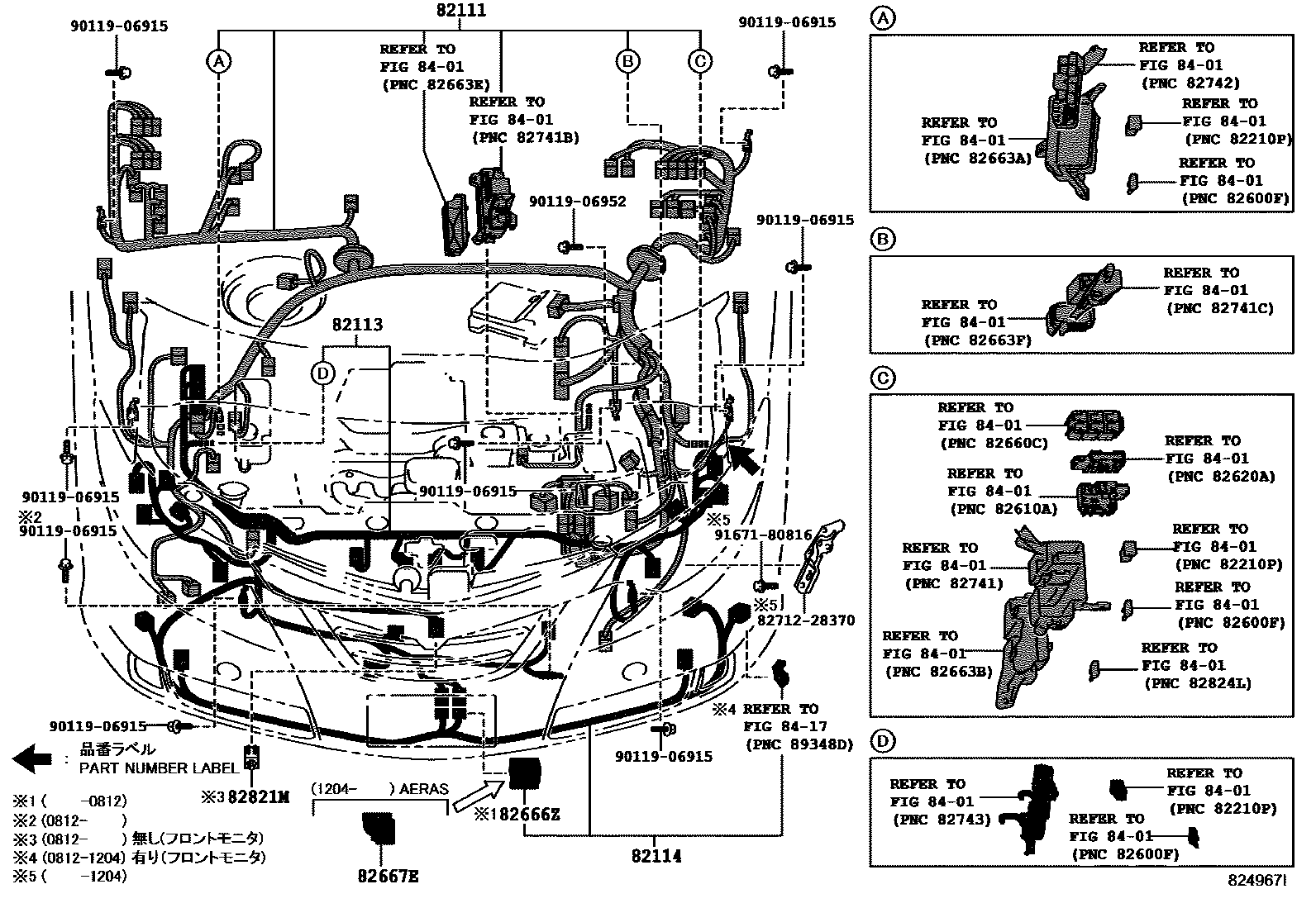

Parts diagram

82111WIRE, ENGINE ROOM MAIN

main82111-28K60i¥203,000200606-200804

main82111-28K61i¥238,000200804-200812

main82111-28K62i¥238,000200812-201204

main82111-28K63i¥255,000201204-201304

main82111-28K64i¥238,000201304-201401

main82111-28K65i¥238,000201401-201409

main82111-28K66i¥238,000201409-201605

main82111-28K67i¥198,000201605

main82111-28K70i¥221,000200606-200804

main82111-28K71i¥238,000200804-200812

main82111-28K71i¥238,000200804-200812

main82111-28K72i¥238,000200812-201204

main82111-28L03i¥255,000201204-201304

main82111-28L04i¥255,000201304-201401

main82111-28L05i¥255,000201401-201409

main82111-28L06i¥255,000201409-201605

82113WIRE, ENGINE ROOM, NO.3

main82113-28170i¥47,800200606-200812

main82113-28171i¥47,800200812-201204

main82113-28172i¥47,800201204-201304

main82113-28173i¥42,500201304-201605

main82113-28174i¥30,900201605

main82113-28420i¥47,800201204-201304

main82113-28421i¥42,500201304-201605

main82113-28430i¥47,800201204-201304

main82113-28431i¥37,100201304-201605

82114WIRE, ENGINE ROOM, NO.4

main82114-28152i¥6,000201204-201605

main82114-28160i¥6,000200606-200812

main82114-28161i¥6,000200812-201204

main82114-28162i¥10,500201204-201605

main82114-28190i¥6,000200606-200812

main82114-28191i¥14,500200812-201204

main82114-28260i¥6,200201605

82666ZHOLDER, CONNECTOR NO.19

main82666-28540i¥1,360200606-201605

82667EHOLDER, CONNECTOR, NO.20

main82666-28840i¥400201204-201605

82821MCOVER, CONNECTOR

main82821-28250i¥240200812-201605

8401

8417

8271228370CLAMP, WIRING HARNESS

main82712-28370¥0

9011906915

main90119-06915¥60

9011906952

main90119-06952¥60

9167180816

main91671-80816¥80

12 parts on this diagram · 18 diagrams in section
