E
EPC Data

REAR COMBINATION LAMP

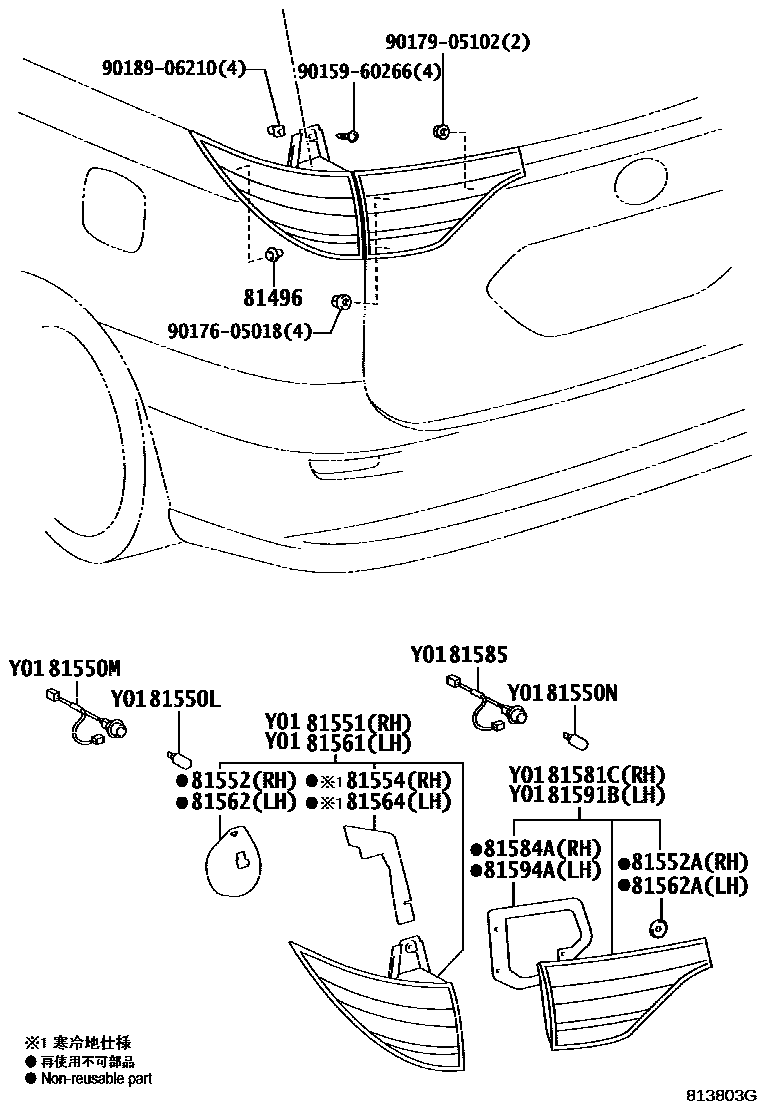

Parts diagram
81496GUIDE, REAR COMBINATION LAMP
main81496-28010i200606-201605
81550LBULB, REAR TURN SIGNAL LAMP
main90981-15011i200606-201605
81550MSOCKET, REAR TURN SIGNAL LAMP
main81555-28400i200606-200812
main81555-28500i200812-201605
main81555-28660i201605
81550NBULB, BACK UP LAMP
main90981-11059i200606-201605
81551LENS, REAR COMBINATION LAMP, RH
main81551-28480i200703-200812
sub81551-28481
main81551-28511i201204-201210
sub81551-28512
main81551-28512i201210-201306
sub81551-28513
main81551-28513i201306-201605
main81551-28530i200812-201011
sub81551-28531
main81551-28531i201011-201204
sub81551-28532
main81551-28620i201204-201210
sub81551-28621
main81551-28621i201210-201306
sub81551-28622
main81551-28622i201306-201501
sub81551-28623
main81551-28623i201501-201605
main81551-28670i201605
81552GASKET, REAR COMBINATION LAMP LENS, RH
main81552-28400i200606-200812
sub81552-28401
main81552-28500i200812-201011
sub81552-28501
main81552-28501i201011-201210
sub81552-28502
main81552-28502i201210-201605
sub81552-28503
main81552-28660i201605-201910
sub81552-28661
81552AGASKET, REAR COMBINATION LAMP, RH
main81584-22040i200606-201605
81554GASKET, REAR COMBINATION LAMP BODY, RH
main81554-28500i201204-201605
81561LENS, REAR COMBINATION LAMP, LH
main81561-28480i200703-200812
sub81561-28481
main81561-28511i201204-201210
sub81561-28512
main81561-28512i201210-201306
sub81561-28513
main81561-28513i201306-201605
main81561-28530i200812-201011
sub81561-28531
main81561-28531i201011-201204
sub81561-28532
main81561-28620i201204-201210
sub81561-28621
main81561-28621i201210-201306
sub81561-28622
main81561-28622i201306-201501
sub81561-28623
main81561-28623i201501-201605
main81561-28670i201605
81562GASKET, REAR COMBINATION LAMP LENS, LH
main81562-28400i200606-200812
sub81562-28401
main81562-28500i200812-201011
sub81562-28501
main81562-28501i201011-201210
sub81562-28502
main81562-28502i201210-201605
sub81562-28503
main81562-28660i201605-201908
sub81562-28661
main81562-28661i201908
81562AGASKET, REAR COMBINATION LAMP, LH
main81584-22040i200606-201605
81564GASKET, REAR COMBINATION LAMP BODY, LH
main81564-28500i200812-201204
81581CLENS AND BODY, REAR LAMP, RH
main81581-28240i200606-200812
sub81581-28241
main81581-28262i201204-201605
main81581-28270i200812-201011
sub81581-28271
main81581-28271i201011-201204
sub81581-28272
main81581-28280i201204-201605
main81581-28300i201605
81584AGASKET, REAR LAMP RH
main81584-28220i200606-200812
sub81584-28221
main81584-28260i200812-201011
sub81584-28261
main81584-28261i201011-201605
sub81584-28262
main81584-28300i201605-201908
sub81584-28301
main81584-28301i201908
81585SOCKET & WIRE, REAR LAMP
main81585-28220i200606-200812
main81585-28260i200812-201605
main81585-28300i201605
main81595-28220i200606-200812
main81595-28260i200812-201605
81591BLENS AND BODY, REAR LAMP, LH
main81591-28240i200606-200812
sub81591-28241
main81591-28262i201204-201605
main81591-28270i200812-201011
sub81591-28271
main81591-28271i201011-201204
sub81591-28272
main81591-28280i201204-201605
main81591-28300i201605
81594AGASKET, REAR LAMP LH
main81594-28220i200606-200812
sub81594-28221
main81594-28260i200812-201011
sub81594-28261
main81594-28261i201011-201605
sub81594-28262
main81594-28300i201605-201908
sub81594-28301
main81594-28301i201908
9015960266
main90159-60266
9017605018
main90176-05018
9017905102
main90179-05102
9018906210
main90189-06210

21 parts on this diagram · 2 diagrams in section
