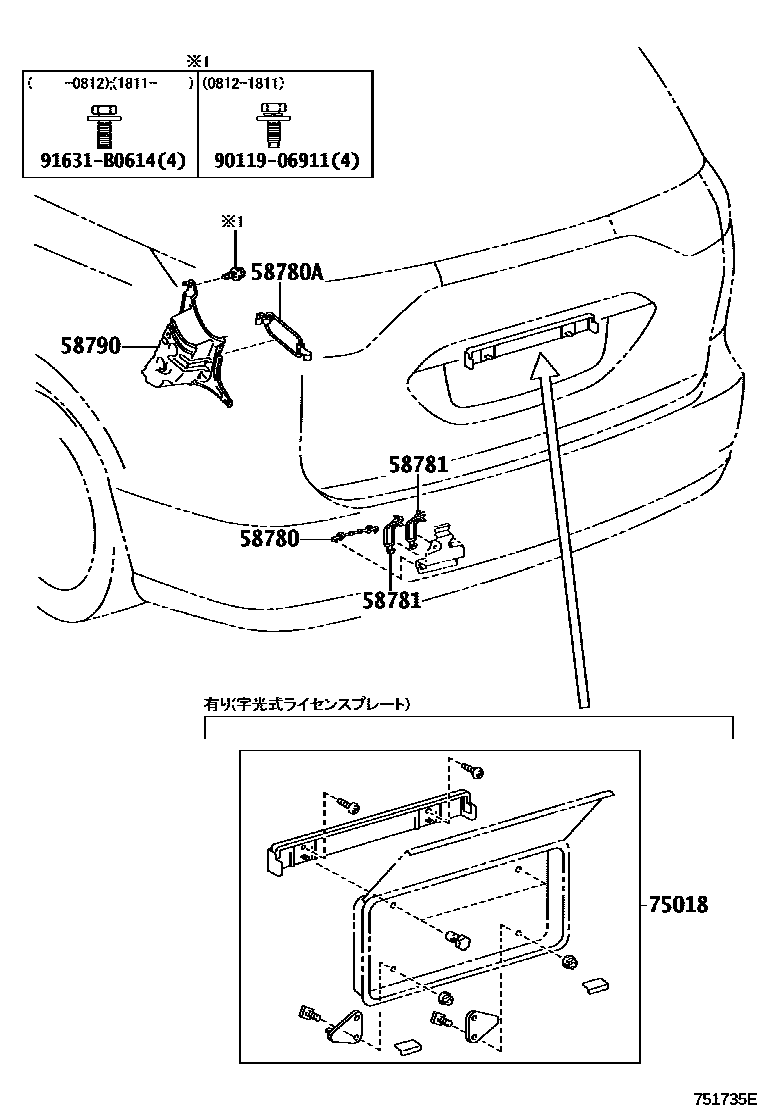

TOOL BOX & LICENSE PLATE BRACKET

58780BAND ASSY, TOOL BOX

main58780-28080iAHR20..CBU200606-201605

58780ABAND ASSY, TOOL BOX

main58780-28060iAHR20..CBU200606-200912

main58780-28070iAHR20..CBU200912-201605

58781BAND, TOOL BAG

main58780-58010iAHR20..CBU200606-200812

main58780-58010iAHR20..CBU200812-201605

58790CARRIER ASSY, JACK

main58790-28040iAHR20..CBU200606-200912

main58790-28041iAHR20..CBU200912-201605

75018FRAME SUB-ASSY, REAR LICENSE PLATE

main75010-44010iAHR20..CBU200606-201605

9011906911

main90119-06911

91631B0614

main91631-B0614

7 parts on this diagram · 1 diagram in section
