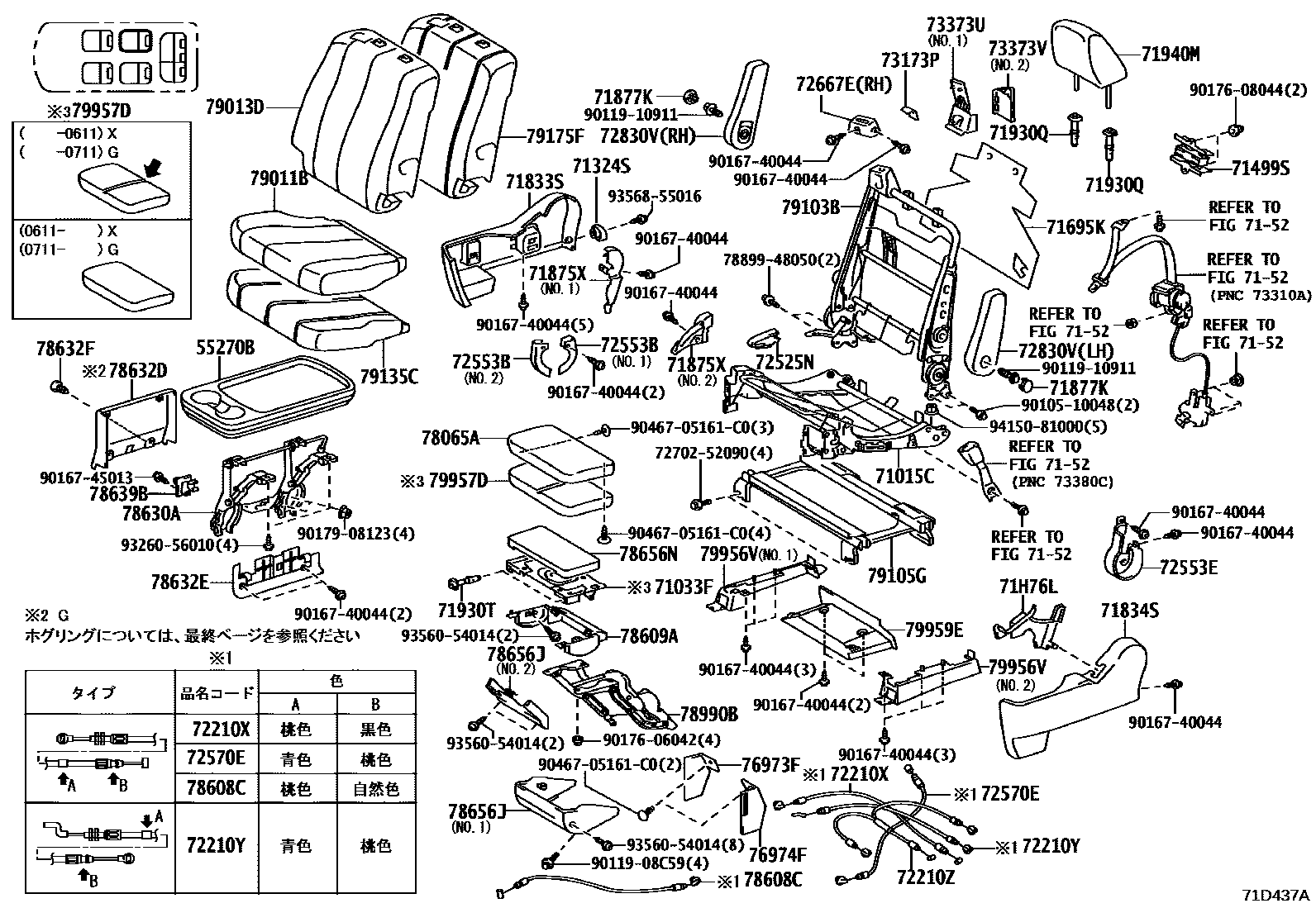

REAR SEAT & SEAT TRACK
55270BTABLE ASSY
GREGE,TRIM4#
GREGE,TRIM4#
SHELL,TRIM0#
DK.GRAY,TRIM2#
SHELL,TRIM0#
GREGE,TRIM4#
71015CFRAME SUB-ASSY, NO.1 SEAT CUSHION, RH
71033FLEG SUB-ASSY, REAR SEAT CUSHION, RH
71324SCUSHION, REAR NO.1 SEAT, RH
71499SDAMPER, SEAT CUSHION SPRING
7152
71695KPROTECTOR, NO.1 SEATBACK, RH
71833SCOVER, REAR SEAT RECLINING, NO.1 RH
71834SCOVER, REAR SEAT RECLINING, NO.1 LH
71875XCOVER, RECLINING ADJUSTER INSIDE, RH
71877KCOVER, REAR SEAT ARMREST HOLE RH
71930QSUPPORT ASSY, REAR SEAT HEADREST
71930TSUPPORT ASSY, REAR SEAT LEGREST
SHELL,TRIM0#
DK.GRAY,TRIM2#
BLACK,TRIM2#,4#
BLACK,TRIM4#
BLACK,TRIM2#
GREGE,TRIM4#
71940MHEADREST ASSY, REAR SEAT
GREGE,TRIM4#
SHELL,TRIM0#
GREGE,TRIM4#
SHELL,TRIM0#
BLACK,TRIM2#
SHELL,TRIM0#
BLACK,TRIM2#
BLACK,TRIM2#
BEIGE,TRIM4#
BURGUNDY,TRIM4#
71H76LCOVER, RECLINING ADJUSTER INSIDE, LH NO.1(FOR RH SEAT)
72210XCABLE ASSY, NO.1 SEAT TRACK CONTROL, RH
72210YCABLE ASSY, NO.1 SEAT TRACK CONTROL, RH NO.1
72210ZCABLE ASSY, NO.1 SEAT TRACK CONTROL, RH NO.2
72525NHANDLE, NO.1 SEAT RECLINING ADJUSTER RELEASE, RH
SHELL,TRIM0#
DK.GRAY,TRIM2#
BLACK,TRIM2#
GREGE,TRIM4#
72553BPROTECTOR, RECLINING COVER, RH
72553EPROTECTOR, RECLINING COVER, RH NO.1
72570ECABLE ASSY, NO.1 SEAT RECLINING ADJUSTING, RH
72667EBEZEL, REAR SEATBACK LOCK, UPPER
72830VARMREST ASSY, REAR NO.1 SEAT, RH
SHELL,TRIM0#
GREGE,TRIM4#
GREGE,TRIM4#
73173PCOVER, REAR SEAT BELT HOLE, RH
73373UCOVER, NO.1 SEAT SHOULDER BELT, RH NO.1
73373VCOVER, NO.1 SEAT SHOULDER BELT, RH NO.2
76973FCOVER, REAR UNDER SIDE, RH
76974FCOVER, REAR UNDER SIDE, LH
78065ACOVER SUB-ASSY, REAR SEAT LEGREST, RH
SHELL,TRIM0#
GREGE,TRIM4#
SHELL,TRIM0#
BLACK,TRIM2#
BLACK,TRIM2#
BEIGE,TRIM4#
BLACK,TRIM2#
BURGUNDY,TRIM4#
78608CCABLE SUB-ASSY, LEGREST LOCK CONTROL(FOR RH SEAT)
78609ACOVER SUB-ASSY, REAR SEAT LEGREST LOCK(FOR RH SEAT)
SHELL,TRIM0#
DK.GRAY,TRIM2#
BLACK,TRIM2#
BLACK,TRIM2#,4#
BLACK,TRIM4#
78630AADJUSTER ASSY, FR0NT SEAT SIDE TABLE
78632DCOVER, REAR SEAT SIDE TABLE, NO.1
78632ECOVER, REAR SEAT SIDE TABLE, NO.2
78632FCLIP, REAR SEAT SIDE TABLE COVER
BLACK,TRIM2#
BLACK,TRIM2#,4#
DK.GRAY,TRIM2#
78639BCLIP, REAR SEAT SIDE TABLE
78656JCOVER, REAR SEAT LEGREST, RH
78656NCOVER, REAR SEAT LEGREST, RH NO.2
SHELL,TRIM0#
sub78656-08070
DK.GRAY,TRIM2#
sub78656-08070
BLACK,TRIM4#
sub78656-08070
78990BADJUSTER ASSY, NO.1 SEAT FOOTREST(FOR RH SEAT)
79011BCOVER SUB-ASSY, NO.1 SEAT CUSHION, RH
GREGE,TRIM4#
SHELL,TRIM0#
GREGE,TRIM4#
BLACK,TRIM2#
BEIGE,TRIM4#
BLACK,TRIM2#
BURGUNDY,TRIM4#
GREGE,TRIM4#
79013DCOVER SUB-ASSY, NO.1 SEATBACK, RH
GREGE,TRIM4#
SHELL,TRIM0#
GREGE,TRIM4#
BLACK,TRIM2#
BEIGE,TRIM4#
BLACK,TRIM2#
BURGUNDY,TRIM4#
SHELL,TRIM0#
GREGE,TRIM4#
GREGE,TRIM4#
GREGE,TRIM4#
SHELL,TRIM0#
BLACK,TRIM2#
79103BFRAME SUB-ASSY, NO.1 SEATBACK, RH
79105GLEG SUB-ASSY, NO.1 SEAT, RH
79135CPAD, NO.1 SEAT CUSHION, RH
79175FPAD, NO.1 SEATBACK, RH
79956VCOVER, REAR SEAT LEG SIDE, RH
79957DPAD, REAR SEAT LEG SIDE
79959ECOVER, NO.1 SEAT LEG, RH
7270252090BRACKET SUB-ASSY, REAR SEATBACK STRIKER
7889948050BOLT, FRONT SEAT
9010510048
9011908C59
9011910911
9016740044
9016745013
9017606042
9017608044
9017908123
9046705161C0
main90467-05161C0
9326056010
9356054014
9356855016
9415081000
64 parts on this diagram · 27 diagrams in section
