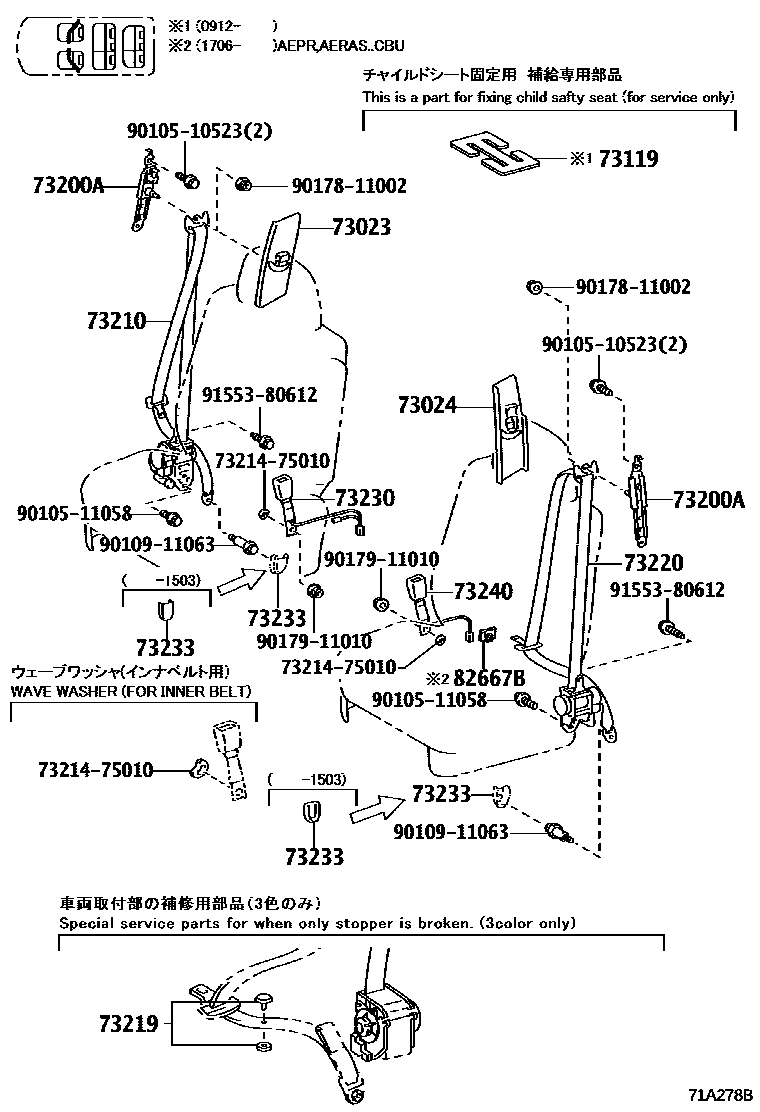

SEAT BELT
73023PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, RH
73024PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, LH
73119PLATE, SEAT BELT WEBBING CLIP
73200AADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR
73210BELT ASSY, FRONT SEAT OUTER, RH
IVORY,TRIM0#
BLACK,TRIM2#
BLACK,TRIM2#,4#
BLACK,TRIM2#
BLACK,TRIM2#
BLACK,TRIM0#,4#
BLACK,TRIM2#,4#
73219STOPPER, TONGUE PLATE
73220BELT ASSY, FRONT SEAT OUTER, LH
IVORY,TRIM0#
BLACK,TRIM2#
BLACK,TRIM2#,4#
BLACK,TRIM2#
BLACK,TRIM0#,4#
BLACK,TRIM2#,4#
BLACK,TRIM2#
73230BELT ASSY, FRONT SEAT INNER, RH
SHELL,TRIM0#
BLACK,TRIM2#
BLACK,TRIM2#,4#
BLACK,TRIM0#,4#
BLACK,TRIM2#,4#
BLACK,TRIM2#
SHELL,TRIM0#
73233COVER, LAP BELT OUTER ANCHOR
SHELL,TRIM0#
BLACK,TRIM0#,4#
BLACK,TRIM2#
BLACK,TRIM2#,4#
BLACK,TRIM2#
BLACK,TRIM0#,4#
BLACK,TRIM2#,4#
73240BELT ASSY, FRONT SEAT INNER, LH
sub73230-28450
SHELL,TRIM0#
BLACK,TRIM0#,4#
BLACK,TRIM2#,4#
SHELL,TRIM0#
BLACK,TRIM2#,4#
BLACK,TRIM2#
BLACK,TRIM2#
BLACK,TRIM2#
82667BHOLDER, CONNECTOR
7321475010PLATE, FRONT SEAT BELT ANCHOR
main73214-75010
9010510523
main90105-10523
9010511058
main90105-11058
9010911063
main90109-11063
9017811002
main90178-11002
9017911010
main90179-11010
9155380612
main91553-80612
18 parts on this diagram · 4 diagrams in section
