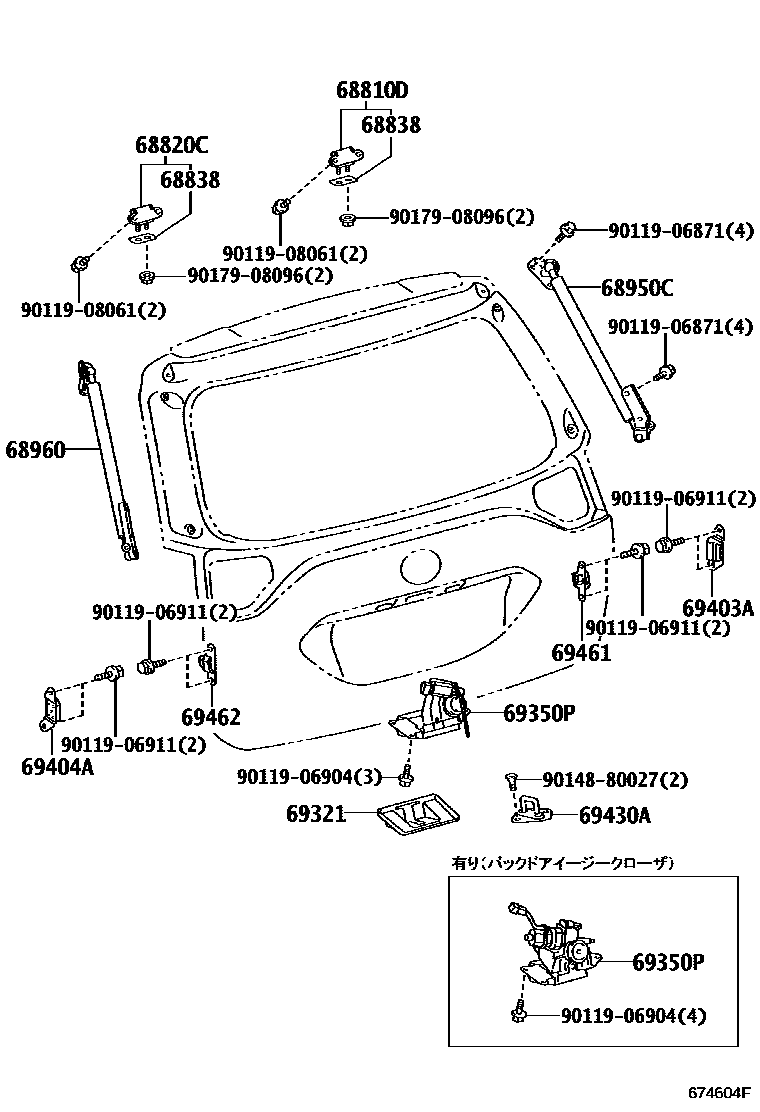

BACK DOOR LOCK & HINGE

0001 1 0002 1��(�����������) 0003 1��(�����������)

68810DHINGE ASSY, BACK DOOR, RH

main68810-21050iAHR20..CBU200606-201512

main68810-21051iAHR20..CBU201601-201605

68820CHINGE ASSY, BACK DOOR, LH

main68810-21050iAHR20..CBU200606-201512

main68810-21051iAHR20..CBU201601-201605

68838PAD, BACK DOOR HINGE, NO.1

main68838-44020iAHR20..CBU200606-201605

68950CSTAY ASSY, BACK DOOR, RH

main68950-28300iAHR20..CBU200606-200610

sub68950-28301

main68950-28301iAHR20..CBU200611-201001

sub68950-28302

main68950-28302iAHR20..CBU201002-201008

sub68950-28303

main68950-28303iAHR20..CBU201009-201111

sub68950-28304

main68950-28304iAHR20..(AERAS,X)..CBU201112-201208

sub68950-28305

main68950-28305iAHR20..(AERAS,X)..CBU201209-201605

main68950-28320iAHR20..G..CBU200606-200610

sub68950-28321

main68950-28321iAHR20..G..CBU200611-201001

sub68950-28322

main68950-28322iAHR20..G..CBU201002-201111

main68950-28323iAHR20..G201204-201208

sub68950-28324

main68950-28323iAHR20..G..CBU201112-201204

sub68950-28324

main68950-28324iAHR20..G201209-201605

main68950-28430iAHR20..(AEPR,AERAS,AESM)..CBU201605

main68950-28440iAHR20..AEPG201605

68960STAY ASSY, BACK DOOR, LH

main68960-28300iAHR20..CBU200606-200610

sub68960-28301

main68960-28301iAHR20..CBU200611-201001

sub68960-28302

main68960-28302iAHR20..CBU201002-201008

sub68960-28303

main68960-28303iAHR20..CBU201009-201111

sub68960-28304

main68960-28304iAHR20..(AERAS,X)..CBU201112-201208

sub68960-28305

main68960-28305iAHR20..(AERAS,X)..CBU201209-201605

main68960-28320iAHR20..G..CBU200606-200610

sub68960-28321

main68960-28321iAHR20..G..CBU200611-201001

sub68960-28322

main68960-28322iAHR20..G..CBU201002-201111

main68960-28323iAHR20..G..CBU201112-201204

sub68960-28324

main68960-28323iAHR20..G201204-201208

sub68960-28324

main68960-28324iAHR20..G201209-201605

main68960-28430iAHR20..(AEPR,AERAS,AESM)..CBU201605

main68960-28440iAHR20..AEPG201605

69321COVER, BACK DOOR LOCK

main69321-28020iAHR20..CBU200606-201605

69350PLOCK ASSY, BACK DOOR, W/COURTESY LAMP SWITCH

main69350-28150iAHR20..(AERAS,X)..CBU200606-201512

sub69350-28151

main69350-28151iAHR20..(AEPR,AERAS,AESM)..CBU201601-201605

main69350-28160iAHR20..G201204-201512

sub69350-28161

main69350-28160iAHR20..G..CBU200606-201204

sub69350-28161

main69350-28161iAHR20..(AEPR,AERAS,AESM)..CBU201601-201605

69403ASTOPPER SUB-ASSY, BACK DOOR SIDE FEMALE, RH

main67293-28030iAHR20..CBU200606-201605

69404ASTOPPER SUB-ASSY, BACK DOOR SIDE FEMALE, LH

main67294-28020iAHR20..CBU200606-201605

69430ASTRIKER ASSY, BACK DOOR LOWER LOCK

main69430-28050iAHR20..CBU200606-201605

69461STOPPER, BACK DOOR SIDE MALE, RH

main67281-28010iAHR20..CBU200606-201605

69462STOPPER, BACK DOOR SIDE MALE, LH

main67282-28010iAHR20..CBU200606-201605

9011906871

main90119-06871

9011906904

main90119-06904

9011906911

main90119-06911

9011908061

main90119-08061

9014880027

main90148-80027

9017908096

main90179-08096

18 parts on this diagram · 3 diagrams in section
