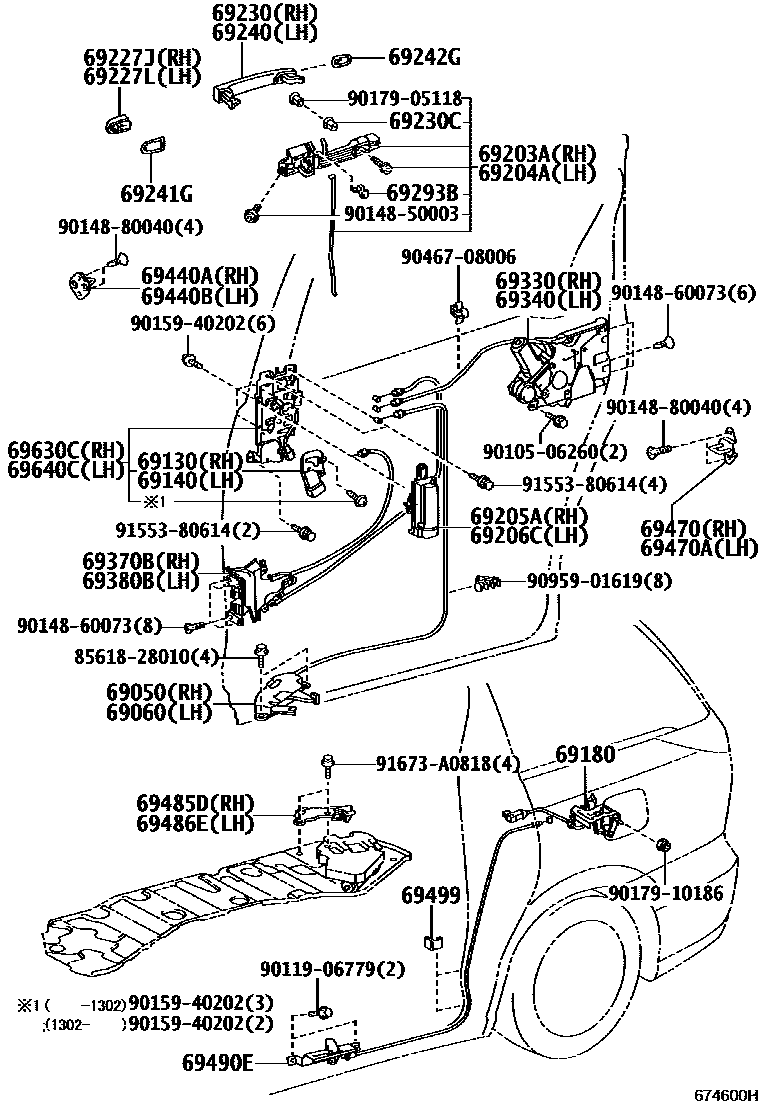

REAR DOOR LOCK & HANDLE
69050LOCK ASSY, SLIDE DOOR FULL OPEN STOP, RH
69060LOCK ASSY, SLIDE DOOR FULL OPEN STOP, LH
69130ACTUATOR ASSY, REAR DOOR LOCK, RH
69140ACTUATOR ASSY, REAR DOOR LOCK, LH
69180CONTROL ASSY, SLIDE DOOR HALF OPEN STOPPER
69203AFRAME SUB-ASSY, REAR DOOR OUTSIDE HANDLE, RH
69204AFRAME SUB-ASSY, REAR DOOR OUTSIDE HANDLE, LH
69227JCOVER, REAR DOOR OUTSIDE HANDLE, RH
WHITE PEARL CS.,070
SILVER ME.,1F7
BLACK,202
LT.PURPLE M.M.,9AE
LT.BLUE M.M.,8S7
WHITE PEARL CS.,070
SILVER ME.,1F7
ICE TITANIUM M.M.,1H4
BLACK,202
SPARKLING BLACK PEARL CS.,220
DEEP RED M.M.,3R9
RED M.M.,2NN ,3R3
DARK SHERRY M.M.,2PM ,4W4
LIGHT BLUE MICA METALLIC,8U8
GRAYISH BLUE M.M.,8V5
LT.PURPLE M.M.,9AE
69227LCOVER, REAR DOOR OUTSIDE HANDLE, LH
WHITE PEARL CS.,070
SILVER ME.,1F7
BLACK,202
LT.PURPLE M.M.,9AE
LT.BLUE M.M.,8S7
WHITE PEARL CS.,070
SILVER ME.,1F7
ICE TITANIUM M.M.,1H4
BLACK,202
SPARKLING BLACK PEARL CS.,220
DEEP RED M.M.,3R9
RED M.M.,2NN ,3R3
DARK SHERRY M.M.,2PM ,4W4
LIGHT BLUE MICA METALLIC,8U8
GRAYISH BLUE M.M.,8V5
LT.PURPLE M.M.,9AE
69230HANDLE ASSY, REAR DOOR OUTSIDE, RH
WHITE PEARL CS.,070
SILVER ME.,1F7
BLACK,202
LT.PURPLE M.M.,9AE
LT.BLUE M.M.,8S7
WHITE PEARL CS.,070
SILVER ME.,1F7
ICE TITANIUM M.M.,1H4 ,2PL
BLACK,202
SPARKLING BLACK PEARL CS.,220
DEEP RED M.M.,3R9
RED M.M.,2NN ,3R3
DARK SHERRY M.M.,2PM ,4W4
LIGHT BLUE MICA METALLIC,8U8
GRAYISH BLUE M.M.,8V5
LT.PURPLE M.M.,9AE
WHITE PEARL CS.,070
SILVER ME.,1F7
BLACK,202
LIGHT BLUE MICA METALLIC,8U8
LT.PURPLE M.M.,9AE
69230CBUSH(FOR REAR DOOR OUTSIDE HANDLE)
69240HANDLE ASSY, REAR DOOR OUTSIDE, LH
WHITE PEARL CS.,070
SILVER ME.,1F7
BLACK,202
LT.PURPLE M.M.,9AE
LT.BLUE M.M.,8S7
WHITE PEARL CS.,070
SILVER ME.,1F7
ICE TITANIUM M.M.,1H4 ,2PL
BLACK,202
SPARKLING BLACK PEARL CS.,220
DEEP RED M.M.,3R9
RED M.M.,2NN ,3R3
DARK SHERRY M.M.,2PM ,4W4
LIGHT BLUE MICA METALLIC,8U8
GRAYISH BLUE M.M.,8V5
LT.PURPLE M.M.,9AE
WHITE PEARL CS.,070
SILVER ME.,1F7
BLACK,202
LIGHT BLUE MICA METALLIC,8U8
LT.PURPLE M.M.,9AE
69241GPAD, REAR DOOR OUTSIDE HANDLE, FRONT
69242GPAD, REAR DOOR OUTSIDE HANDLE, REAR
69293BSNAP, REAR DOOR OUTSIDE HANDLE
69330LOCK ASSY, REAR DOOR, RH
69340LOCK ASSY, REAR DOOR, LH
69370BLOCK ASSY, SLIDE DOOR, FRONT RH
69380BLOCK ASSY, SLIDE DOOR, FRONT LH
69440APLATE ASSY, SLIDE DOOR FRONT LOCK STRIKER
69440BPLATE ASSY, SLIDE DOOR FRONT LOCK STRIKER
69470PLATE ASSY, SLIDE DOOR LOCK STRIKER
69470APLATE ASSY, SLIDE DOOR LOCK STRIKER, LH
69485DSTRIKER, SLIDE DOOR OPEN, RH
69486ESTRIKER, SLIDE DOOR OPEN, LH
69490ESTOPPER ASSY, SLIDE DOOR HALF OPEN
69499CLIP, SLIDE DOOR HALF OPEN STOPPER CABLE
69630CCONTROL ASSY, SLIDE DOOR LOCK REMOTE, RH
69640CCONTROL ASSY, SLIDE DOOR LOCK REMOTE, LH
8561828010SCREW, SLIDE ROOF MOTOR THRUST
main85618-28010
9010506260
main90105-06260
9011906779
main90119-06779
9014850003
main90148-50003
9014860073
main90148-60073
9014880040
main90148-80040
9015940202
main90159-40202
9017905118
main90179-05118
9017910186
main90179-10186
9046708006
main90467-08006
9095901619
main90959-01619
9155380614
main91553-80614
91673A0818
main91673-A0818
44 parts on this diagram · 1 diagram in section
