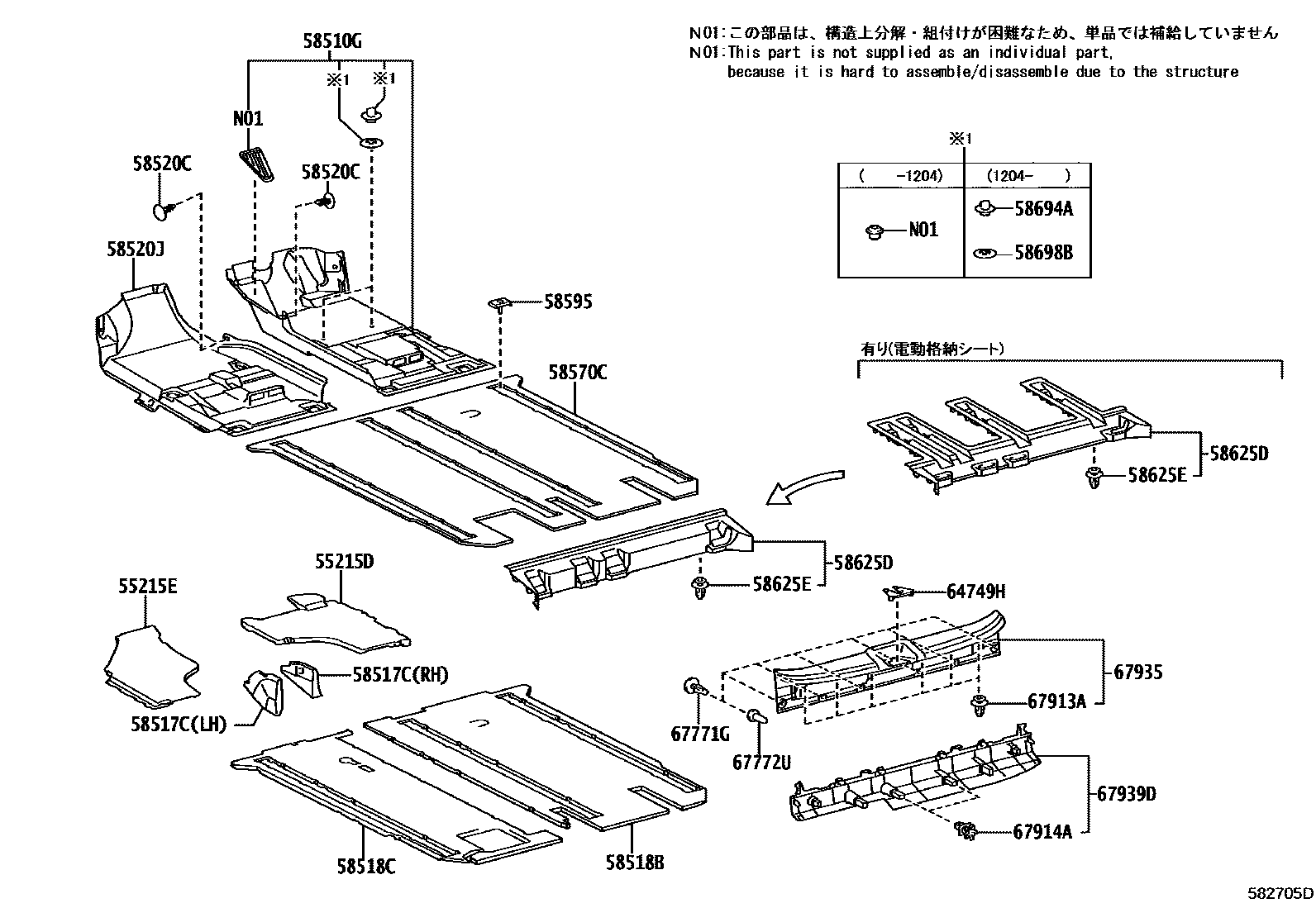

FLOOR MAT & SILENCER PAD

0001 1 0002 1��(��������������)

55215DPAD, DASH PANEL INSULATOR, NO.3

main55215-28060iAHR20..CBU201605

55215EPAD, DASH PANEL INSULATOR, NO.3

main58192-28020supersedes 58192-28040iAHR20..G..CBU200812-201204

main58192-28040iAHR20..CBU201605

58510GCARPET ASSY, FLOOR, FRONT RH

main58510-28E70-E1iAHR20..CBU200812-201204

GREGE,TRIM4#

main58510-28E71-A0iAHR20..CBU201204-201605

SHELL,TRIM0#

main58510-28E71-B0iAHR20..AESM201605

DK. GREY,TRIM0#,4#

58517CPAD, FRONT FLOOR MAT

main58573-28060iAHR20..CBU201605

main58573-28070iAHR20..CBU200812-201204

58518BMAT, REAR FLOOR, NO.2

main58518-28430iAHR20..08S200606-200810

main58518-28C80iAHR20..08S200811-200812

main58518-28D00iAHR20..07S..(AEPR,AERAS,AESM)..CBU201605

main58518-28D10iAHR20..AESM201605

main58518-28450iAHR20..08S..G200606-200810

main58518-28570supersedes 58518-28D10iAHR20..07S..G..CBU200606-200810

main58518-28820supersedes 58518-28D10iAHR20..07S..G..CBU200811-200812

main58518-28830supersedes 58518-28D10iAHR20..07S..G..CBU200811-200812

main58518-28880iAHR20..07S..X200606-200706

main58518-28890supersedes 58518-28D10iAHR20..07S..G..CBU200606-200810

main58518-28C90iAHR20..08S..G200812-201204

main58518-28D60supersedes 58518-28D00iAHR20..07S..(AERAS,X)..CBU201204-201605

main58518-28D70supersedes 58518-28D10iAHR20..07S..G..CBU200812-201204

58518CMAT, REAR FLOOR, NO.2

main58518-28520iAHR20..08S..G200606-200812

main58518-28710supersedes 58518-28440iAHR20..08S201204-201605

main58518-28720iAHR20..08S..G200606-200812

main58518-28740supersedes 58518-28560iAHR20..07S..CBU200606-200812

main58518-28750supersedes 58518-28580iAHR20..07S..AERAS..CBU201204-201605

main58518-28820iAHR20..07S..X200606-200706

main58518-28830supersedes 58518-28580iAHR20..07S..G..CBU200812-201204

main58518-28840supersedes 58518-28580iAHR20..07S..G..CBU200606-200812

main58518-28850supersedes 58518-28580iAHR20..07S..G..CBU200606-200812

main58518-28B10iAHR20..07S..(AEPR,AERAS)..CBU201605

main58518-28B50supersedes 58518-28560iAHR20..07S..(AERAS,X)..CBU201204-201605

main58518-28D60supersedes 58518-28560iAHR20..07S..G..CBU200811-200812

main58518-28D70supersedes 58518-28580iAHR20..07S..G..CBU200811-200812

58520CCLIP(FOR FRONT FLOOR CARPET)

main90467-07080-A2×2iAHR20..CBU201204-201605

SHELL,TRIM0#

main90467-07080-C0×2iAHR20..AESM201605

BLACK,TRIM2#

main90467-07080-E4×2iAHR20..CBU200812-201204

GREGE,TRIM4#

58520JCARPET ASSY, FLOOR, FRONT LH

main58520-28250-E0supersedes 58520-28260-E0iAHR20..X200606-200812

main58520-28260-B0iAHR20..AESM201605

DK. GREY,TRIM0#,4#

main58520-28250-A0supersedes 58520-28270-A0iAHR20..CBU201204-201304

main58520-28250-B0iAHR20..AERAS..CBU201204-201304

main58520-28270-B0supersedes 58520-28260-B0iAHR20..07S..AERAS..CBU201204-201605

main58520-28270-E0iAHR20..X..CBU200812-200912

58570CCARPET ASSY, REAR FLOOR

main58570-28550-A0iAHR20..08S201204-201605

SHELL,TRIM0#

main58570-28550-B2iAHR20..08S..AERAS201204-201605

DK. GREY,TRIM2#

main58570-28550-E0iAHR20..08S200606-200812

GREGE,TRIM4#

main58570-28610-A0iAHR20..07S..AERAS..CBU201204-201605

SHELL,TRIM0#

main58570-28610-B1supersedes 58570-28820-B2iAHR20..AESM201605

main58570-28820-B2iAHR20..07S..AERAS..CBU201204-201605

DK. GREY,TRIM2#,4#

main58570-28610-E0iAHR20..07S..G..CBU200606-200812

main58570-28680-E0iAHR20..08S..G200812-201204

main58570-28790-E0supersedes 58570-28820-E0iAHR20..07S..X200606-200706

main58570-28800-E0iAHR20..07S..G..CBU200812-201204

main58570-28870-A0supersedes 58570-28820-A0iAHR20..07S..(AERAS,X)..CBU201204-201605

main58570-28870-B0supersedes 58570-28820-B2iAHR20..07S..(AEPR,AERAS)..CBU201605

58595MOULDING, FLOOR CARPET, NO.3

main58595-28080-A0×8iAHR20..CBU201204-201605

SHELL,TRIM0#

main58595-28080-B1×8iAHR20..07S..AERAS..CBU201204-201409

main58595-28080-C0×8iAHR20..07S..AERAS..CBU201409-201605

main58595-28080-E0×8iAHR20..CBU200606-200812

58625DPLATE, REAR FLOOR MAT, NO.1

main58625-28040-E0iAHR20..CBU200606-200612

GREGE,TRIM4#

main58625-28080-A0iAHR20..(AERAS,X)..CBU201204-201305

SHELL,TRIM0#

main58625-28080-C0iAHR20..AERAS..CBU201204-201305

BLACK,TRIM2#

main58625-28080-E0iAHR20..CBU200812-201204

GREGE,TRIM4#

main58625-28081-A0iAHR20..(AERAS,X)..CBU201306-201512

SHELL,TRIM0#

main58625-28081-C0iAHR20..07S..AERAS..CBU201306-201512

BLACK,TRIM2#

main58625-28090-A0iAHR20..07S..AERAS..CBU201204-201605

main58625-28090-C0supersedes 58625-28110-C0iAHR20..AESM201605

main58625-28110-A0iAHR20..(AERAS,X)..CBU201601-201605

SHELL,TRIM0#

main58625-28110-C0iAHR20..07S..AERAS..CBU201601-201605

BLACK,TRIM2#

main58625-28050-E0iAHR20..G..CBU200606-200612

main58625-28090-E0iAHR20..G..CBU200812-201204

58625ECLIP(FOR REAR FLOOR MAT PLATE)

main90467-10161×9iAHR20..AESM201605

58694APLATE, MAT SET, UPPER

main58694-76010×2iAHR20..CBU201605

58698BPLATE, MAT SET, LOWER

main58698-76010×2iAHR20..CBU201204-201605

64749HCOVER, BACK DOOR STRIKER

main64749-28010-A0iAHR20..CBU201204-201605

SHELL,TRIM0#

main64749-28010-C0iAHR20..AESM201605

BLACK,TRIM2#

main64749-28010-E0iAHR20..CBU200812-201204

GREGE,TRIM4#

67771GRETAINER, BACK DOOR CENTER GARNISH

main67771-28130-A0×6iAHR20..CBU201204-201605

SHELL,TRIM0#

main67771-28130-C0×6iAHR20..AESM201605

BLACK,TRIM2#

main67771-28130-E0×6iAHR20..CBU200812-201204

GREGE,TRIM4#

67772UCAP, BACK DOOR CENTER GARNISH RETAINER

main67772-20021×6iAHR20..CBU200606-200812

67913ACLIP(FOR SCUFF PLATE)

main90467-10161×6iAHR20..CBU201204-201605

67914ACLIP(FOR SCUFF PLATE)

main67771-28120×4iAHR20..CBU200606-200812

67935PLATE, BACK DOOR SCUFF

main67935-28070-E0iAHR20..CBU200606-200612

GREGE,TRIM4#

main67935-28090-A0iAHR20..CBU201204-201605

SHELL,TRIM0#

main67935-28090-C0iAHR20..AESM201605

BLACK,TRIM2#

main67935-28090-E0iAHR20..CBU200701-200812

GREGE,TRIM4#

67939DGARNISH, BACK DOOR, CENTER

main67939-28010-E0iAHR20..CBU200606-200612

GREGE,TRIM4#

main67939-28040-A0iAHR20..CBU201204-201305

SHELL,TRIM0#

main67939-28040-C0iAHR20..AERAS..CBU201204-201305

BLACK,TRIM2#

main67939-28040-E0iAHR20..CBU200701-200812

GREGE,TRIM4#

main67939-28041-A0iAHR20..CBU201306-201605

SHELL,TRIM0#

main67939-28041-C0iAHR20..07S..AERAS..CBU201306-201605

BLACK,TRIM2#

21 parts on this diagram · 2 diagrams in section
