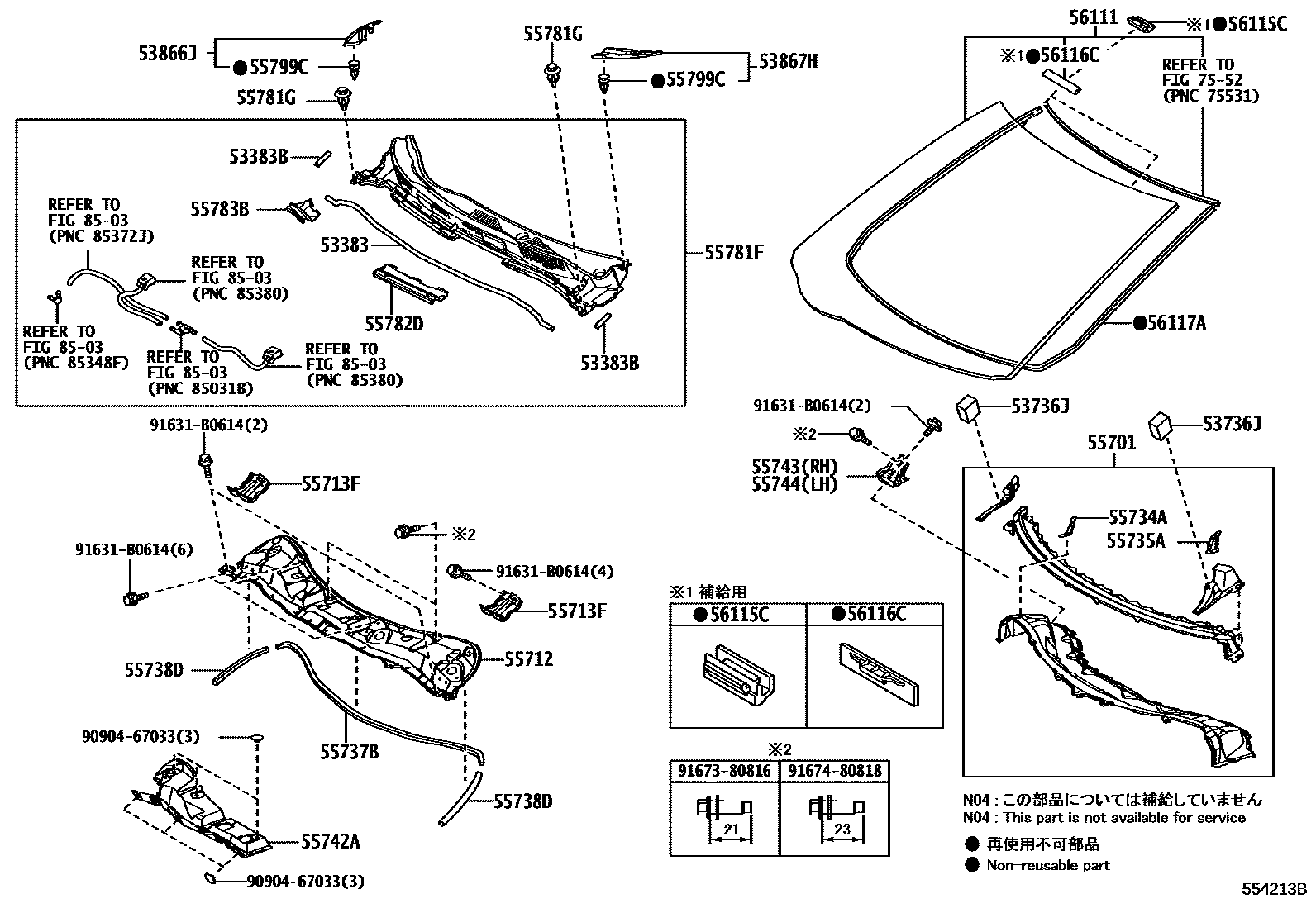

COWL PANEL & WINDSHIELD GLASS
53383SEAL, HOOD TO COWL TOP
53383BSEAL, HOOD TO COWL TOP
53736JSEAL, FENDER APRON
53866JSEAL, FRONT FENDER TO COWL SIDE, RH
53867HSEAL, FRONT FENDER TO COWL SIDE, LH
55701PANEL SUB-ASSY, COWL
55712PANEL, COWL TOP OUTSIDE, FRONT
55713FREINFORCEMENT, COWL TOP SIDE, RH
55734APLATE, WATER GUARD, RH
55735APLATE, WATER GUARD, LH
55737BSEAL, HEATER AIR DUCT SPLASH SHIELD, NO.1
55738DSEAL, HEATER AIR DUCT SPLASH SHIELD, NO.2
55742ASHEET, COWL TOP INSULATOR
55743PANEL, COWL TOP OUTSIDE CORNER, RH
55744PANEL, COWL TOP OUTSIDE CORNER, LH
55781FLOUVER, COWL TOP VENTILATOR
55781GCLIP, COWL TOP VENTILATOR LOUVER
55782DLOUVER, COWL TOP VENTILATOR, LH
55783BLOUVER, COWL TOP VENTILATOR, CENTER NO.1
55799CCLIP, COWL TOP VENTILATOR LOUVER
56111GLASS, WINDSHIELD
56115CSTOPPER, WINDSHIELD GLASS
56116CSTOPPER, WINDSHIELD GLASS, NO.2
56117ADAM, WINDOW GLASS ADHESIVE
7552
8503
9090467033
91631B0614
9167380816
9167480818
30 parts on this diagram · 1 diagram in section
