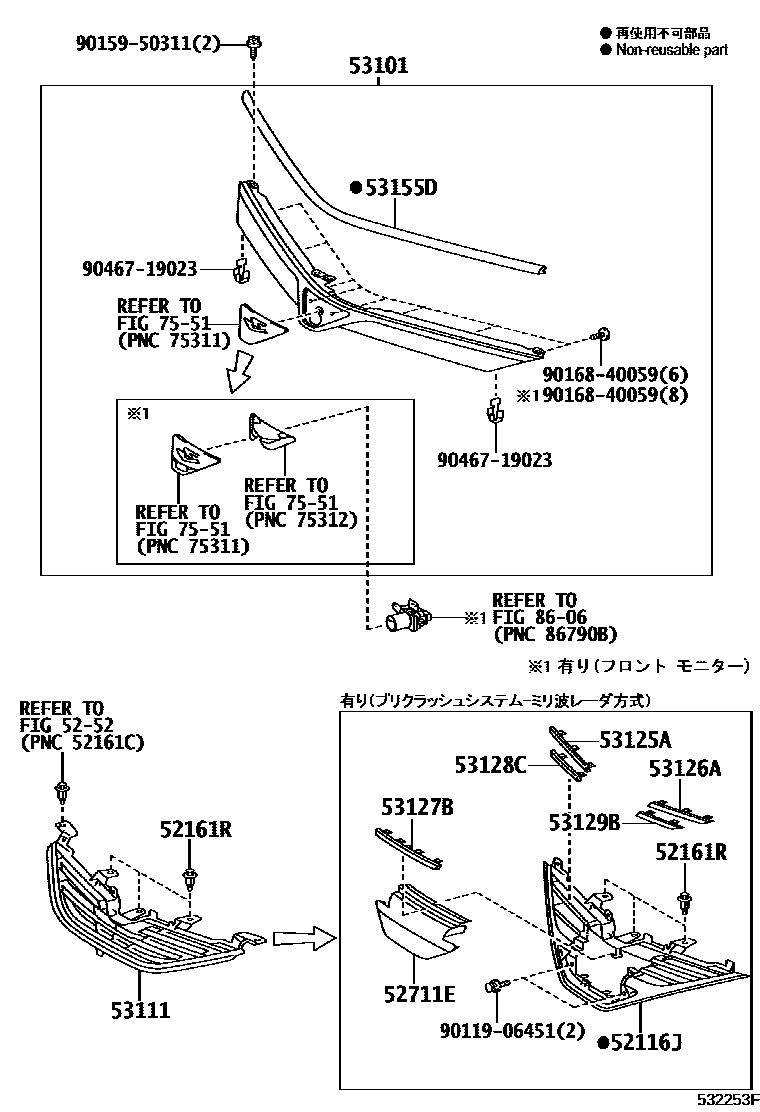

RADIATOR GRILLE
52116JRETAINER, FRONT BUMPER
52161RPIECE, FRONT BUMPER
5252
52711EGARNISH, FRONT BUMPER
53101GRILLE SUB-ASSY, RADIATOR
WHITE PEARL CS.,070
SILVER ME.,1F7
ICE TITANIUM M.M.,1H4
BLACK,202
DEEP RED M.M.,3R9
GRAYISH BLUE M.M.,8V5
WHITE PEARL CS.,070
SILVER ME.,1F7
BLACK,202
LIGHT BLUE MICA METALLIC,8U8
LT.PURPLE M.M.,9AE
WHITE PEARL CS.,070
SILVER ME.,1F7
ICE TITANIUM M.M.,1H4
BLACK,202
DEEP RED M.M.,3R9
LIGHT BLUE MICA METALLIC,8U8
LT.PURPLE M.M.,9AE
WHITE PEARL CS.,070
SILVER ME.,1F7
ICE TITANIUM M.M.,1H4
BLACK,202
DEEP RED M.M.,3R9
53111GRILLE, RADIATOR
53125AMOULDING, RADIATOR GRILLE, CENTER RH
53126AMOULDING, RADIATOR GRILLE, CENTER LH
53127BMOULDING, RADIATOR GRILLE, NO.7
53128CMOULDING, RADIATOR GRILLE, NO.8
53129BMOULDING, RADIATOR GRILLE, NO.9
53155DSEAL, RADIATOR GRILLE, NO.1
7551
8606
9011906451
main90119-06451
9015950311
main90159-50311
9016840059
main90168-40059
9046719023
main90467-19023
18 parts on this diagram · 4 diagrams in section
