E
EPC Data

FRONT BUMPER & BUMPER STAY

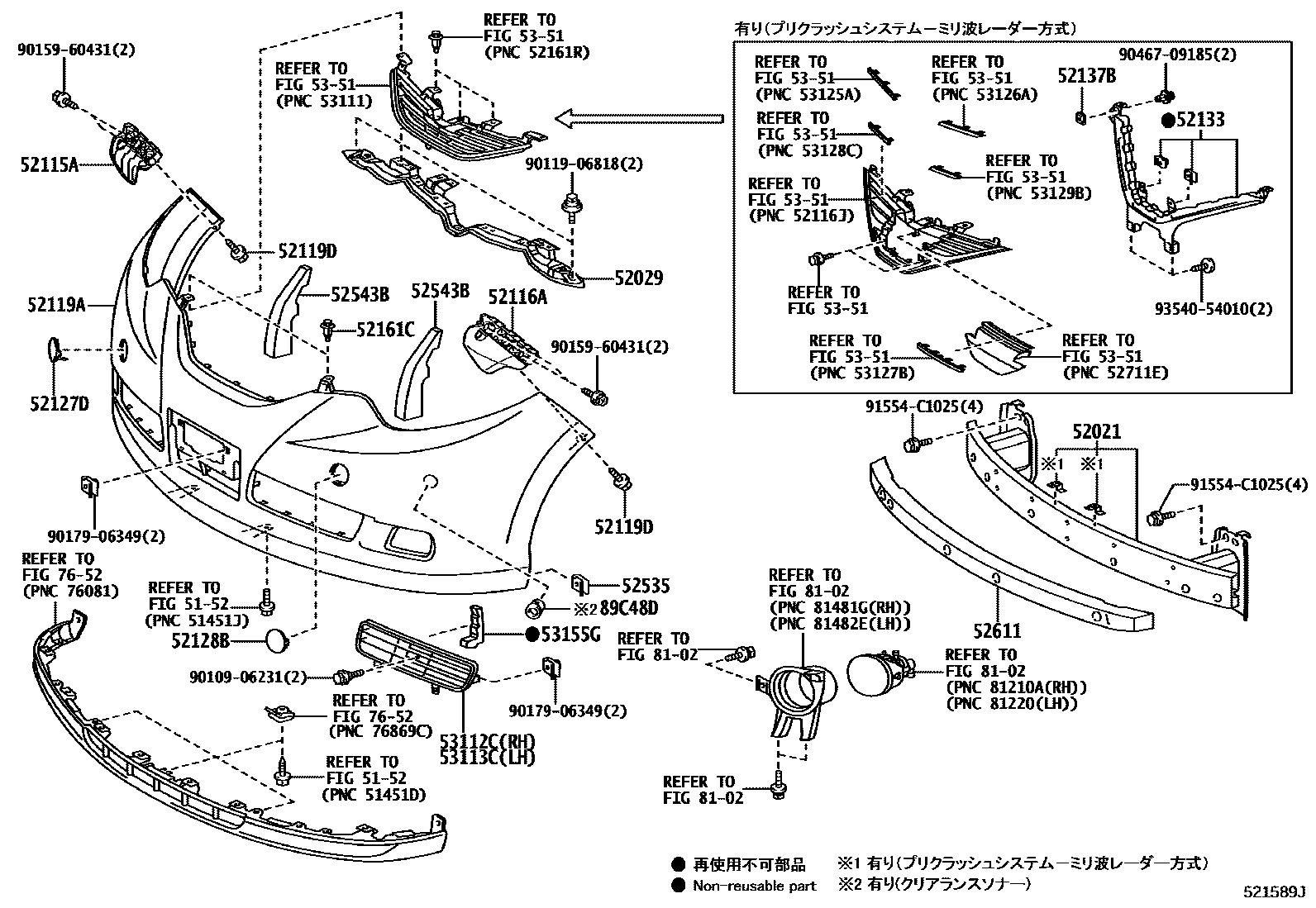

Parts diagram
5152
52021REINFORCEMENT SUB-ASSY, FRONT BUMPER
main52021-28210i200606-200812
main52021-28211i200812-201605
main52021-28220i200606-200812
main52021-28221i200812-201605
main52021-28230i201204-201605
main52021-28280i201605
main52029-28060i201304-201605
main52029-28080i201605
52029REINFORCEMENT SUB-ASSY, FRONT BUMPER, UPPER
main52029-28050i200606-200812
main52029-28070i200606-200812
main52029-28070i200606-200812
52115ASUPPORT, FRONT BUMPER SIDE, RH
main52115-28120i200606-200812
main52115-28170i200812-201605
main52115-28260i201605
52116ASUPPORT, FRONT BUMPER SIDE, LH
main52116-28060i200606-200812
main52116-28170i200812-201605
main52116-28260i201605
52119ACOVER, FRONT BUMPER
main52119-28C40-A0i200606-200812
WHITE PEARL CS.,070
sub52119-28995
main52119-28C40-B0i200606-200812
SILVER ME.,1F7
sub52119-28995
main52119-28C40-C0i200606-200812
BLACK,202
sub52119-28995
main52119-28C40-J0i200606-200812
LT.BLUE M.M.,8S7
sub52119-28995
main52119-28C40-K0i200606-200812
LT.PURPLE M.M.,9AE
sub52119-28995
main52119-28C50-A0i200606-200812
sub52119-28996
main52119-28C50-B0i200606-200812
sub52119-28996
main52119-28C50-C0i200606-200812
sub52119-28996
main52119-28C50-J0i200606-200812
sub52119-28996
main52119-28C50-K0i200606-200812
sub52119-28996
main52119-28C60-A0i200606-200812
sub52119-28997
main52119-28C60-B0i200606-200812
sub52119-28997
main52119-28C60-C0i200606-200812
sub52119-28997
main52119-28C60-J0i200606-200812
sub52119-28997
main52119-28C60-K0i200606-200812
sub52119-28997
main52119-28C70-A0i200606-200812
sub52119-28998
main52119-28C70-B0i200606-200812
sub52119-28998
main52119-28C70-C0i200606-200812
sub52119-28998
main52119-28C70-J0i200606-200812
sub52119-28998
main52119-28C70-K0i200606-200812
sub52119-28998
main52119-28F40-A0i200812-201605
WHITE PEARL CS.,070
sub52119-2J948
main52119-28F40-B0i200812-201605
SILVER ME.,1F7
sub52119-2J948
main52119-28F40-B1i201204-201605
ICE TITANIUM M.M.,1H4
sub52119-2J948
main52119-28F40-C0i200812-201605
BLACK,202
sub52119-2J948
main52119-28F40-D0i201204-201605
BORDEAUX M.M,3R9
sub52119-2J948
main52119-28F40-J0i200812-201204
LIGHT BLUE MICA METALLIC,8U8
sub52119-2J948
main52119-28F40-K0i200812-201204
LT.PURPLE M.M.,9AE
sub52119-2J948
main52119-28F50-A0i200812-201204
WHITE PEARL CS.,070
sub52119-2J996
main52119-28F50-A0i200812-201204
sub52119-2J996
main52119-28F50-A0i201204-201304
sub52119-2J996
main52119-28F50-B0i200812-201204
SILVER ME.,1F7
sub52119-2J996
main52119-28F50-B0i200812-201204
sub52119-2J996
main52119-28F50-B0i201204-201304
sub52119-2J996
main52119-28F50-B1i201204-201304
sub52119-2J996
main52119-28F50-C0i200812-201204
BLACK,202
sub52119-2J996
main52119-28F50-C0i200812-201204
sub52119-2J996
main52119-28F50-C0i201204-201304
sub52119-2J996
main52119-28F50-D0i201204-201304
sub52119-2J996
main52119-28F50-J0i200812-201204
LIGHT BLUE MICA METALLIC,8U8
sub52119-2J996
main52119-28F50-J0i200812-201204
sub52119-2J996
main52119-28F50-K0i200812-201204
LT.PURPLE M.M.,9AE
sub52119-2J996
main52119-28F50-K0i200812-201204
sub52119-2J996
main52119-28F60-A0i201204-201304
sub52119-2J997
main52119-28F60-A0i200812-201204
sub52119-2J997
main52119-28F60-B0i200812-201204
sub52119-2J997
main52119-28F60-B0i201204-201304
sub52119-2J997
main52119-28F60-B1i201204-201304
sub52119-2J997
main52119-28F60-C0i201204-201304
sub52119-2J997
main52119-28F60-C0i200812-201204
sub52119-2J997
main52119-28F60-D0i201204-201304
sub52119-2J997
main52119-28F60-J0i200812-201204
sub52119-2J997
main52119-28F60-K0i200812-201204
sub52119-2J997
main52119-28G00-A0i201409-201605
main52119-28G00-A0i201204-201605
WHITE PEARL CS.,070
main52119-28G00-B0i201204-201605
SILVER ME.,1F7
main52119-28G00-B1i201204-201605
ICE TITANIUM M.M.,1H4
main52119-28G00-C0i201409-201605
main52119-28G00-C0i201204-201605
BLACK,202
main52119-28G00-D0i201204-201605
BORDEAUX M.M,3R9
main52119-28G00-J0i201204-201605
GRAYISH BLUE M.M.,8V5
main52119-28G10-A0i201204-201304
sub52119-2J999
main52119-28G10-B0i201204-201304
sub52119-2J999
main52119-28G10-B1i201204-201304
sub52119-2J999
main52119-28G10-C0i201204-201304
sub52119-2J999
main52119-28G10-D0i201204-201304
sub52119-2J999
main52119-28G10-J0i201204-201304
sub52119-2J999
main52119-28G20-A0i201204-201605
sub52119-2A916
main52119-28G20-B0i201204-201605
sub52119-2A916
main52119-28G20-B1i201204-201605
sub52119-2A916
main52119-28G20-C0i201204-201605
sub52119-2A916
main52119-28G20-D0i201204-201605
sub52119-2A916
main52119-28J40-A0i201304-201605
sub52119-2J949
main52119-28J40-A0i201409-201605
sub52119-2J949
main52119-28J40-B0i201304-201605
sub52119-2J949
main52119-28J40-B1i201304-201605
sub52119-2J949
main52119-28J40-C0i201304-201605
sub52119-2J949
main52119-28J40-C0i201409-201605
sub52119-2J949
main52119-28J40-D0i201304-201605
sub52119-2J949
main52119-28J40-J0i201304-201605
sub52119-2J949
main52119-28J50-A0i201304-201605
sub52119-2J950
main52119-28J50-B0i201304-201605
sub52119-2J950
main52119-28J50-B1i201304-201605
sub52119-2J950
main52119-28J50-C0i201304-201605
sub52119-2J950
main52119-28J50-D0i201304-201605
sub52119-2J950
main52119-28J60-A0i201304-201605
sub52119-2A917
main52119-28J60-B0i201304-201605
sub52119-2A917
main52119-28J60-B1i201304-201605
sub52119-2A917
main52119-28J60-C0i201304-201605
sub52119-2A917
main52119-28J60-D0i201304-201605
sub52119-2A917
main52119-28K30-A0i201605-201910
WHITE PEARL CS.,070
sub52119-2R904
main52119-28K30-B0i201605-201910
SILVER ME.,1F7
sub52119-2R904
main52119-28K30-B1i201605-201910
ICE TITANIUM M.M.,1H4 ,2PL
sub52119-2R904
main52119-28K30-C0i201605-201910
BLACK,202
sub52119-2R904
main52119-28K30-C1i201605-201910
SPARKLING BLACK PEARL CS.,220
sub52119-2R904
main52119-28K30-D0i201605-201910
RED M.M.,2NN ,3R3
sub52119-2R904
main52119-28K30-E0i201605-201910
DARK SHERRY M.M.,2PM ,4W4
sub52119-2R904
main52119-28K40-A0i201605-201910
sub52119-2R905
main52119-28K40-B0i201605-201910
sub52119-2R905
main52119-28K40-B1i201605-201910
sub52119-2R905
main52119-28K40-C0i201605-201910
sub52119-2R905
main52119-28K40-C1i201605-201910
sub52119-2R905
main52119-28K40-D0i201605-201910
sub52119-2R905
main52119-28K40-E0i201605-201910
sub52119-2R905
52119DSCREW, NO.1
main90159-50353i200812-201910
main90159-60217i200606-200812
52127DCOVER, FRONT BUMPER HOLE, RH
main52127-28220-A0i200606-200812
WHITE PEARL CS.,070
sub52127-28912
main52127-28220-B0i200606-200812
SILVER ME.,1F7
sub52127-28912
main52127-28220-C0i200606-200812
BLACK,202
sub52127-28912
main52127-28220-J0i200606-200812
LT.BLUE M.M.,8S7
sub52127-28912
main52127-28220-K0i200606-200812
LT.PURPLE M.M.,9AE
sub52127-28912
main52127-28320-A0i200812-201605
WHITE PEARL CS.,070
sub52127-28913
main52127-28320-B0i200812-201605
SILVER ME.,1F7
sub52127-28913
main52127-28320-B1i201204-201605
ICE TITANIUM M.M.,1H4
sub52127-28913
main52127-28320-C0i200812-201605
BLACK,202
sub52127-28913
main52127-28320-D0i201204-201605
BORDEAUX M.M,3R9
sub52127-28913
main52127-28320-J0i200812-201204
LIGHT BLUE MICA METALLIC,8U8
sub52127-28913
main52127-28320-K0i200812-201204
LT.PURPLE M.M.,9AE
sub52127-28913
main52127-28430-A0i201204-201605
WHITE PEARL CS.,070
sub52127-28902
main52127-28430-B0i201204-201605
SILVER ME.,1F7
sub52127-28902
main52127-28430-B1i201204-201605
ICE TITANIUM M.M.,1H4
sub52127-28902
main52127-28430-C0i201204-201605
BLACK,202
sub52127-28902
main52127-28430-D0i201204-201605
BORDEAUX M.M,3R9
sub52127-28902
main52127-28430-J0i201204-201605
GRAYISH BLUE M.M.,8V5
sub52127-28902
52128BCOVER, FRONT BUMPER HOLE, LH
main52127-28220-A0i200606-200812
WHITE PEARL CS.,070
sub52127-28912
main52127-28220-B0i200606-200812
SILVER ME.,1F7
sub52127-28912
main52127-28220-C0i200606-200812
BLACK,202
sub52127-28912
main52127-28220-J0i200606-200812
LT.BLUE M.M.,8S7
sub52127-28912
main52127-28220-K0i200606-200812
LT.PURPLE M.M.,9AE
sub52127-28912
main52128-28430-A0i201204-201605
WHITE PEARL CS.,070
sub52128-28902
main52128-28430-B0i201204-201605
SILVER ME.,1F7
sub52128-28902
main52128-28430-B1i201204-201605
ICE TITANIUM M.M.,1H4
sub52128-28902
main52128-28430-C0i201204-201605
BLACK,202
sub52128-28902
main52128-28430-D0i201204-201605
BORDEAUX M.M,3R9
sub52128-28902
main52128-28430-J0i201204-201605
GRAYISH BLUE M.M.,8V5
sub52128-28902
52133REINFORCEMENT, FRONT BUMPER
main52133-28100i200606-200812
main52133-28100i200606-200812
main52133-28170i200812-201605
main52133-28170i201204-201304
main52133-28170i201304-201605
52137BPLATE, FRONT BUMPER BRACKET, NO.1
main52137-26020i200606-200812
main52137-26020i200606-200812
52161CPIECE, FRONT BUMPER
main52161-16010i200606-200812
main52161-16010i200812-201605
main52161-16010i201204-201304
main52161-16010i201304-201605
52535RETAINER, FRONT BUMPER SIDE, RH
main52535-28030i200606-200812
52543SEAL, FRONT BUMPER SIDE, RH
main52545-28070i201204-201605
main52545-28090i201605
52543BSEAL, FRONT BUMPER
main52543-28080i200606-200812
main52543-28130i200812-201204
52611ABSORBER, FRONT BUMPER ENERGY
main52611-28080i200606-201301
sub52611-28081
main52611-28081i201302-201605
main52611-28130i201605
53112CGRILLE, RADIATOR, LOWER RH
main53112-28040i200606-200812
53113CGRILLE, RADIATOR, LOWER LH
main53113-28040i200606-200812
53155GSEAL, RADIATOR GRILLE
main53155-28040i200606-200812
main53155-28050i200812-201111
sub53155-28051
main53155-28051i201112-201605
5351
7652
8102
89C48DRETAINER, ULTRASONIC SENSOR, FRONT CORNER
main89348-12010-A1i200812-201204
WHITE PEARL CS.,070
sub89348-33040
sub89348-12010
main89348-12010-A1i201204-201304
sub89348-33040
sub89348-12010
main89348-12010-A1i200812-201204
sub89348-33040
sub89348-12010
main89348-12010-B0i200812-201204
sub89348-33040
sub89348-12010
main89348-12010-B0i200812-201204
SILVER ME.,1F7
sub89348-33040
sub89348-12010
main89348-12010-B0i201204-201304
sub89348-33040
sub89348-12010
main89348-12010-C1i200812-201204
sub89348-33040
sub89348-12010
main89348-12010-C1i200812-201204
BLACK,202
sub89348-33040
sub89348-12010
main89348-12010-C1i201204-201304
sub89348-33040
sub89348-12010
main89348-12010-D5i201204-201304
sub89348-33040
sub89348-12010
main89348-12010-J2i200812-201204
LIGHT BLUE MICA METALLIC,8U8
sub89348-33040
sub89348-12010
main89348-12010-J2i200812-201204
sub89348-33040
sub89348-12010
main89348-12010-J9i201204-201304
sub89348-33040
sub89348-12010
main89348-12010-K2i200812-201204
LT.PURPLE M.M.,9AE
sub89348-33040
sub89348-12010
main89348-12010-K2i200812-201204
sub89348-33040
sub89348-12010
main89348-12010-P0i201204-201304
sub89348-33040
sub89348-12010
main89348-28100-A1i200606-200812
sub89348-28100
main89348-28100-B0i200606-200812
sub89348-28100
main89348-28100-C0i200606-200812
sub89348-28100
main89348-28100-J1i200606-200812
sub89348-28100
main89348-28100-K0i200606-200812
sub89348-28100
main89348-33100-A1i201304-201605
sub89348-33100
main89348-33100-B0i201304-201605
sub89348-33100
main89348-33100-B9i201304-201605
sub89348-33100
main89348-33100-C4i201304-201605
sub89348-33100
main89348-33100-D5i201304-201605
sub89348-33100
main89348-33100-J9i201304-201605
sub89348-33100
9010906231
main90109-06231
9011906818
main90119-06818
9015960431
main90159-60431
9017906349
main90179-06349
9046709185
main90467-09185
91554C1025
main91554-C1025
9354054010
main93540-54010

30 parts on this diagram · 5 diagrams in section

FRONT BUMPER & BUMPER STAY — Toyota Parts Diagram with OEM Numbers & Prices | EPC Data
