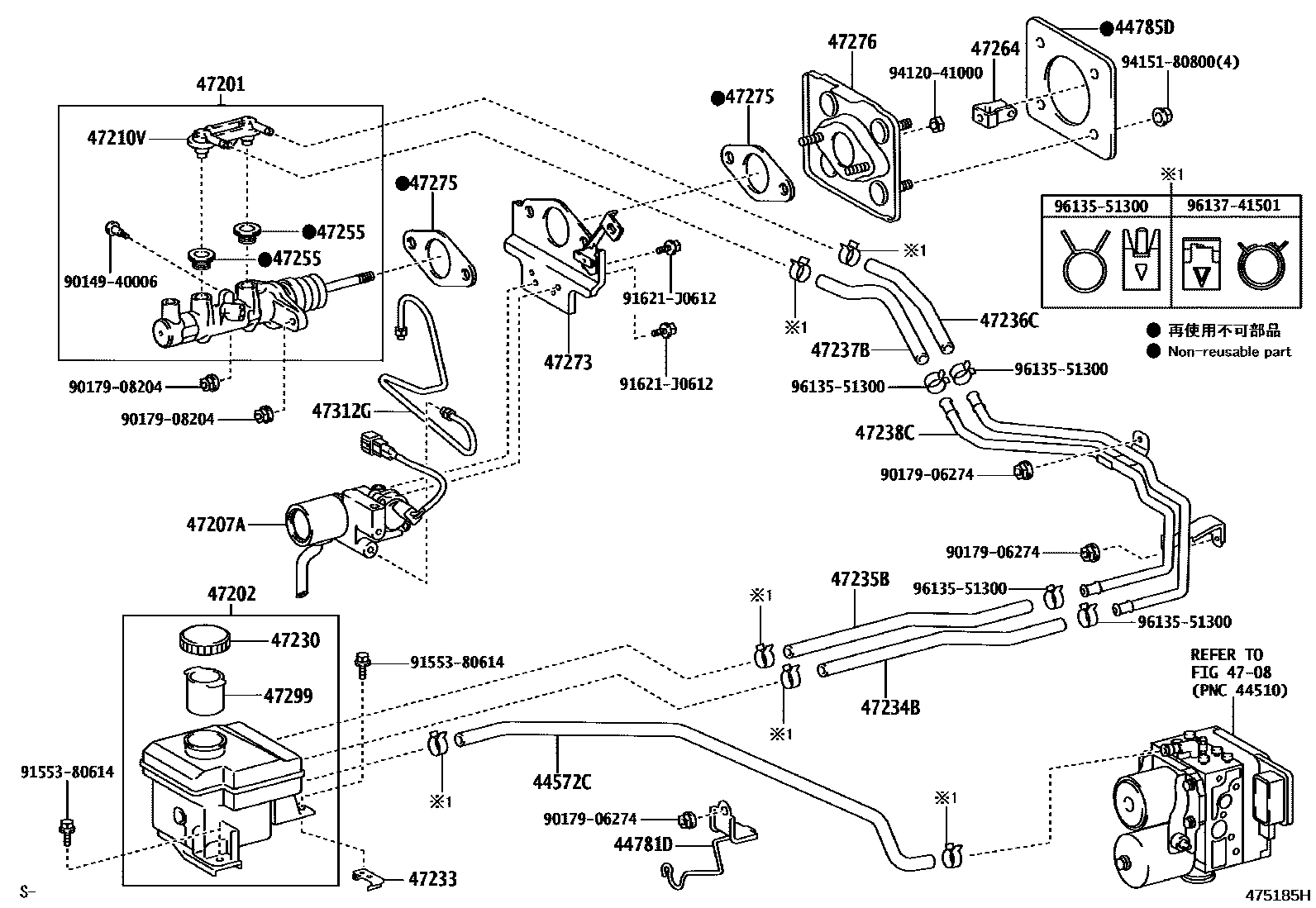

BRAKE MASTER CYLINDER
44572CHOSE, BRAKE ACTUATOR, NO.2
44781DBRACKET, RESERVOIR HOSE
44785DGASKET, BRAKE MASTER CYLINDER
4708
47201CYLINDER SUB-ASSY, BRAKE MASTER
47207ACYLINDER SUB-ASSY, BRAKE STROKE SIMULATOR
47210VUNION(FOR BRAKE MASTER CYLINDER)
47233BRACKET, RESERVOIR
47234BTUBE, RESERVOIR, NO.1
47235BTUBE, BRAKE MASTER CYRINDER RESERVOIR, NO.2
47236CHOSE, RESERVOIR TUBE
47237BHOSE, RESERVIOR TUBE
47238CTUBE, RESERVOIR
47255GROMMET, MASTER CYLINDER RESERVOIR
47264CLEVIS, MASTER CYLINDER PUSH ROD
47273BRACKET, BRAKE STROKE SIMULATOR
47275GASKET, BRAKE MASTER CYLINDER
47276BRACKET, BRAKE MASTER CYLINDER
47299STRAINER, BRAKE MASTER CYLINDER RESERVOIR
47312GTUBE, BRAKE STROKE SIMULATOR
9014940006
main90149-40006
9017906274
main90179-06274
9017908204
main90179-08204
9155380614
main91553-80614
91621J0612
main91621-J0612
9412041000
main94120-41000
9415180800
main94151-80800
9613551300
main96135-51300
9613741501
main96137-41501
31 parts on this diagram · 2 diagrams in section
