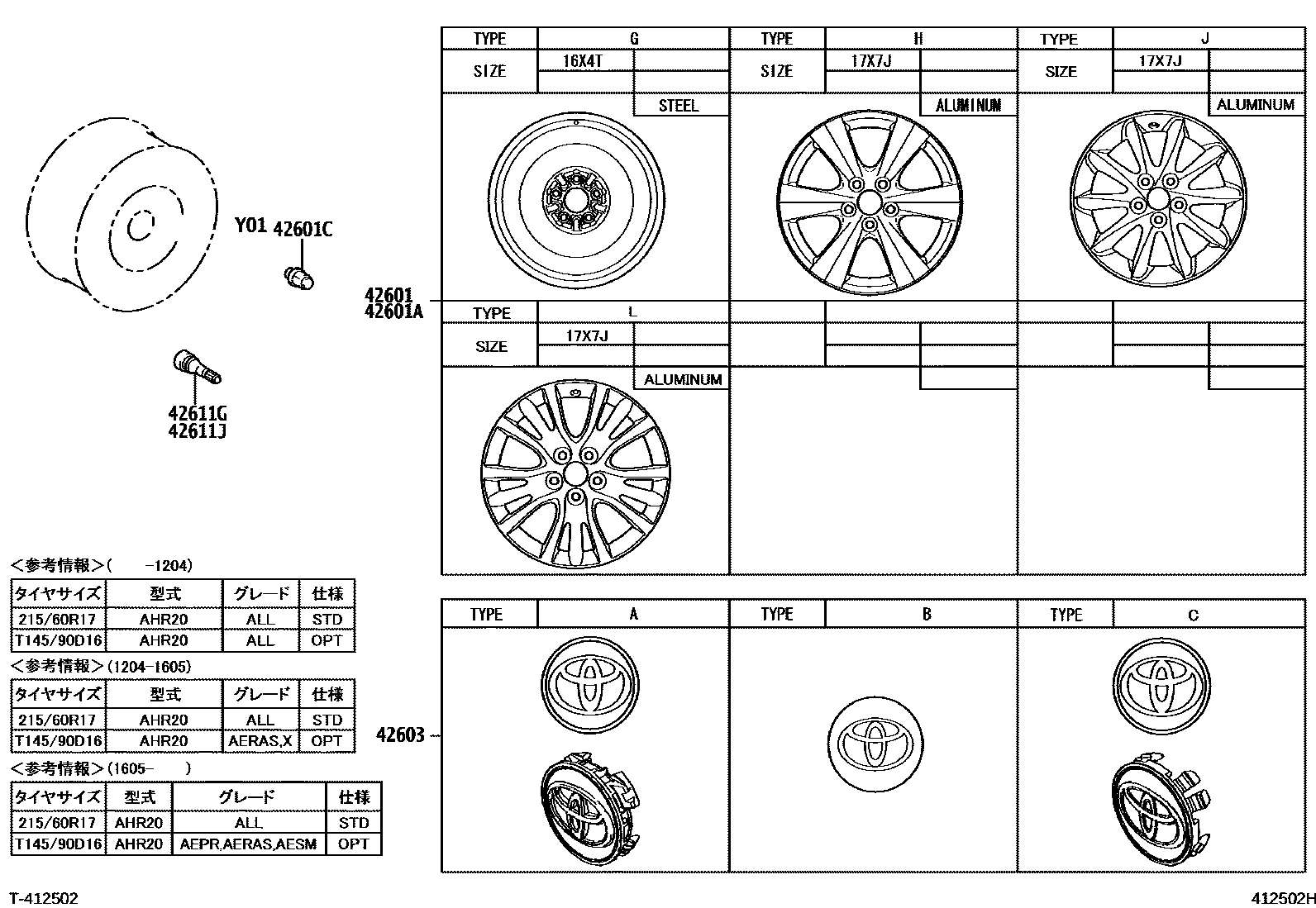

DISC WHEEL & WHEEL CAP

0001 1��������� & ������������� 0002 1���������

42601WHEEL, DISC

main42611-28700iAHR20..CBU200606-201204

sub42611-28890

main42611-28770iAHR20..(G,X)..CBU201204-201306

sub42611-28771

main42611-28771iAHR20..(G,X)..CBU201307-201512

sub42611-28772

main42611-28772iAHR20..(G,X)..CBU201601-201605

main42611-28830iAHR20..AERAS..CBU201204-201605

main42611-28A20iAHR20..CBU201605

42601AWHEEL, DISC (FOR SPARE)

42601CNUT, HUB (FOR AXLE)

main90942-01033iAHR20..CBU201605

main90942-01033iAHR20..CBU200606-201605

42603ORNAMENT SUB-ASSY, WHEEL HUB

main42603-12730iAHR20..(G,X)..CBU201204-201605

main42603-42110iAHR20..CBU200606-201204

main42603-42130iAHR20..CBU201812

main42603-48130iAHR20..AERAS..CBU201204-201605

main42603-48140iAHR20..CBU201605-201812

42611GVALVE (FOR TUBELESS TIRE)

main90942-05009iAHR20..CBU200606-201605

42611JVALVE (FOR TUBELESS TIRE SPARE)

6 parts on this diagram · 2 diagrams in section
