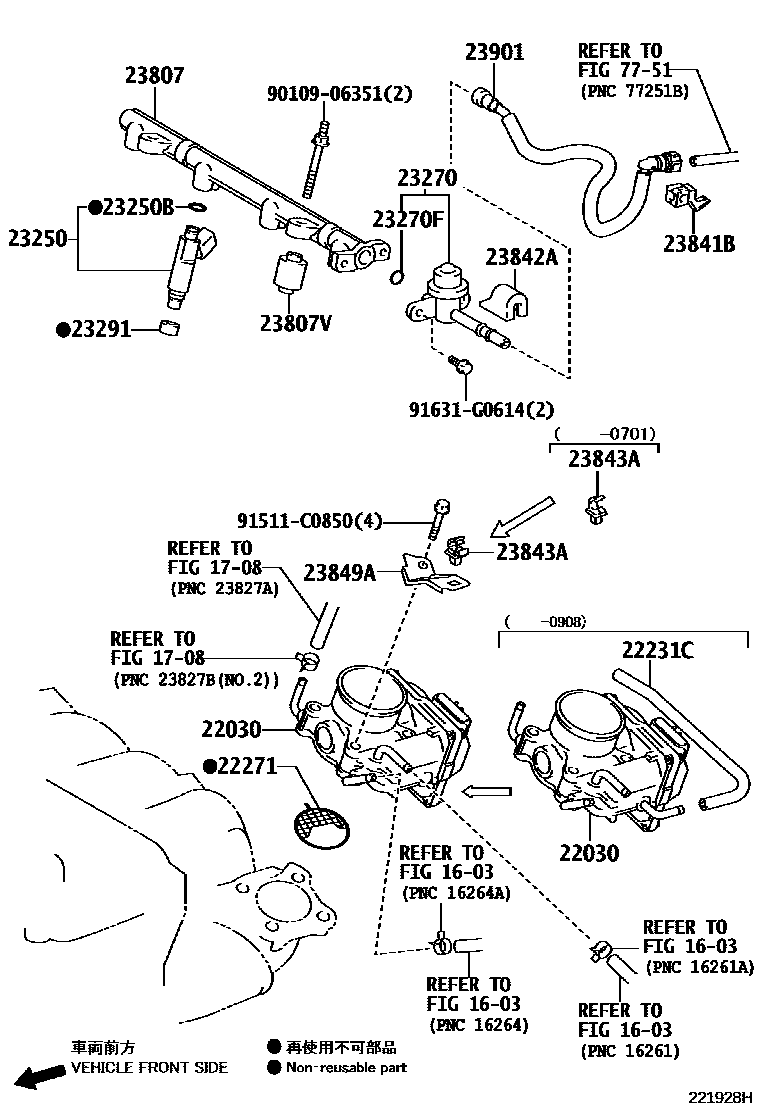

FUEL INJECTION SYSTEM

1603

1708

22030BODY ASSY, THROTTLE W/THROTTLE POSITION SENSOR

main22030-28070i2AZFXE..AHR20..CBU200812-200908

main22030-28071i2AZFXE..AHR20..CBU201605

22231CHOSE, THROTTLE BODY, NO.1

main22231-28060i2AZFXE..AHR20..CBU200606-200812

22271GASKET, THROTTLE BODY

main22271-75031i2AZFXE..AHR20..CBU200606-200812

23250INJECTOR ASSY, FUEL

main23209-28060×4i2AZFXE..AHR20..CBU200606-200812

23250BRING, O(FOR FUEL INJECTOR)

main90301-07024×4i2AZFXE..AHR20..CBU200606-200607

main90301-07037×4i2AZFXE..AHR20..CBU200607-200812

23270DAMPER ASSY, FUEL PRESSURE PULSATION

main23270-28050i2AZFXE..AHR20..CBU200606-200702

main23270-28051i2AZFXE..AHR20..CBU200702-200801

main23270-28052i2AZFXE..AHR20..CBU200801-200812

main23270-28070i2AZFXE..AHR20..CBU201412-201605

23270FRING, O(FOR PULSATION DAMPER)

main90301-07037i2AZFXE..AHR20..CBU200606-200812

23291INSULATOR, INJECTOR VIBRATION

main23291-28020×4i2AZFXE..AHR20..CBU201204-201605

23807PIPE SUB-ASSY, FUEL DELIVERY

main23814-28031i2AZFXE..AHR20..CBU200812-201204

main23814-28060i2AZFXE..AHR20..CBU201412-201605

23807VSPACER, NO.1(FOR DELIVERY PIPE)

main90561-08053×2i2AZFXE..AHR20..CBU200606-200812

23841BCLAMP, FUEL PIPE, NO.1(FOR EFI)

main23841-28030i2AZFXE..AHR20..CBU200606-200812

23842ACLAMP, FUEL PIPE, NO.2(FOR EFI)

main23842-22020i2AZFXE..AHR20..CBU200606-200706

main23842-28010i2AZFXE..AHR20..CBU200812-201204

23843ACLAMP,FUEL PIPE, NO.3(FOR EFI)

main23847-28010i2AZFXE..AHR20..CBU200701-200812

main90469-12012i2AZFXE..AHR20..CBU200606-200701

23849ASUPPORT, FUEL PIPE

main23849-28050i2AZFXE..AHR20..CBU200812-201204

23901TUBE SUB-ASSY, FUEL

main23901-28380i2AZFXE..AHR20..CBU200606-200812

7751

9010906351

main90109-06351

91511C0850

main91511-C0850

91631G0614

main91631-G0614

21 parts on this diagram · 1 diagram in section
