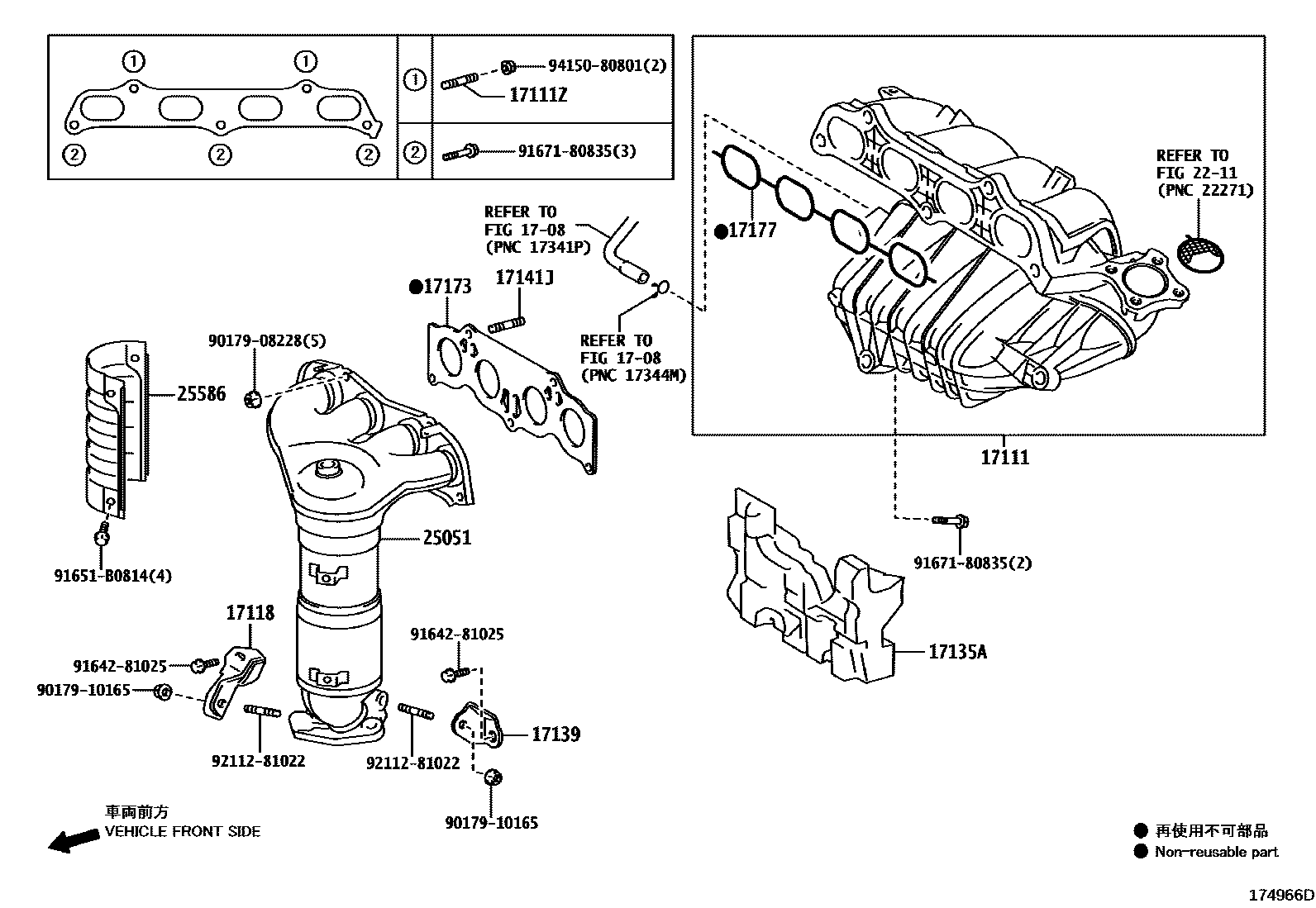

MANIFOLD

1708

17111MANIFOLD, INTAKE

main17120-28170i2AZFXE..AHR20..CBU200606-201112

sub17120-28171

main17120-28171i2AZFXE..AHR20..CBU201201-201605

17111ZBOLT, STUD(FOR INTAKE MANIFOLD TO CYLINDER HEAD)

main90126-08026i2AZFXE..AHR20..CBU200606-201605

17118STAY, MANIFOLD

main17118-28020i2AZFXE..AHR20..CBU200606-201605

17135AINSULATOR, INTAKE MANIFOLD, NO.1

main17135-28011i2AZFXE..AHR20..CBU200606-201605

17139STAY, MANIFOLD, NO.2

main17139-28050i2AZFXE..AHR20..CBU200606-201605

17141JBOLT, STUD(FOR EXHAUST MANIFOLD, RH)

main90126-08037i2AZFXE..AHR20..CBU200606-201605

17173GASKET, EXHAUST MANIFOLD TO HEAD

main17173-28010i2AZFXE..AHR20..CBU200606-201605

17177GASKET, INTAKE MANIFOLD TO HEAD, NO.1

main17177-28010i2AZFXE..AHR20..CBU200606-201112

sub17177-28031

main17177-28031i2AZFXE..AHR20..CBU201201-201605

2211

25051CONVERTER SUB-ASSY, EXHAUST MANIFOLD

main25051-28320i2AZFXE..AHR20..CBU200606-201605

25586INSULATOR, MANIFOLD CONVERTER, NO.1

main25586-28110i2AZFXE..AHR20..CBU200606-201605

9017908228

main90179-08228

9017910165

main90179-10165

9164281025

main91642-81025

91651B0814

main91651-B0814

9167180835

main91671-80835

9211281022

main92112-81022

9415080801

main94150-80801

19 parts on this diagram · 1 diagram in section
