STANDARD TOOL

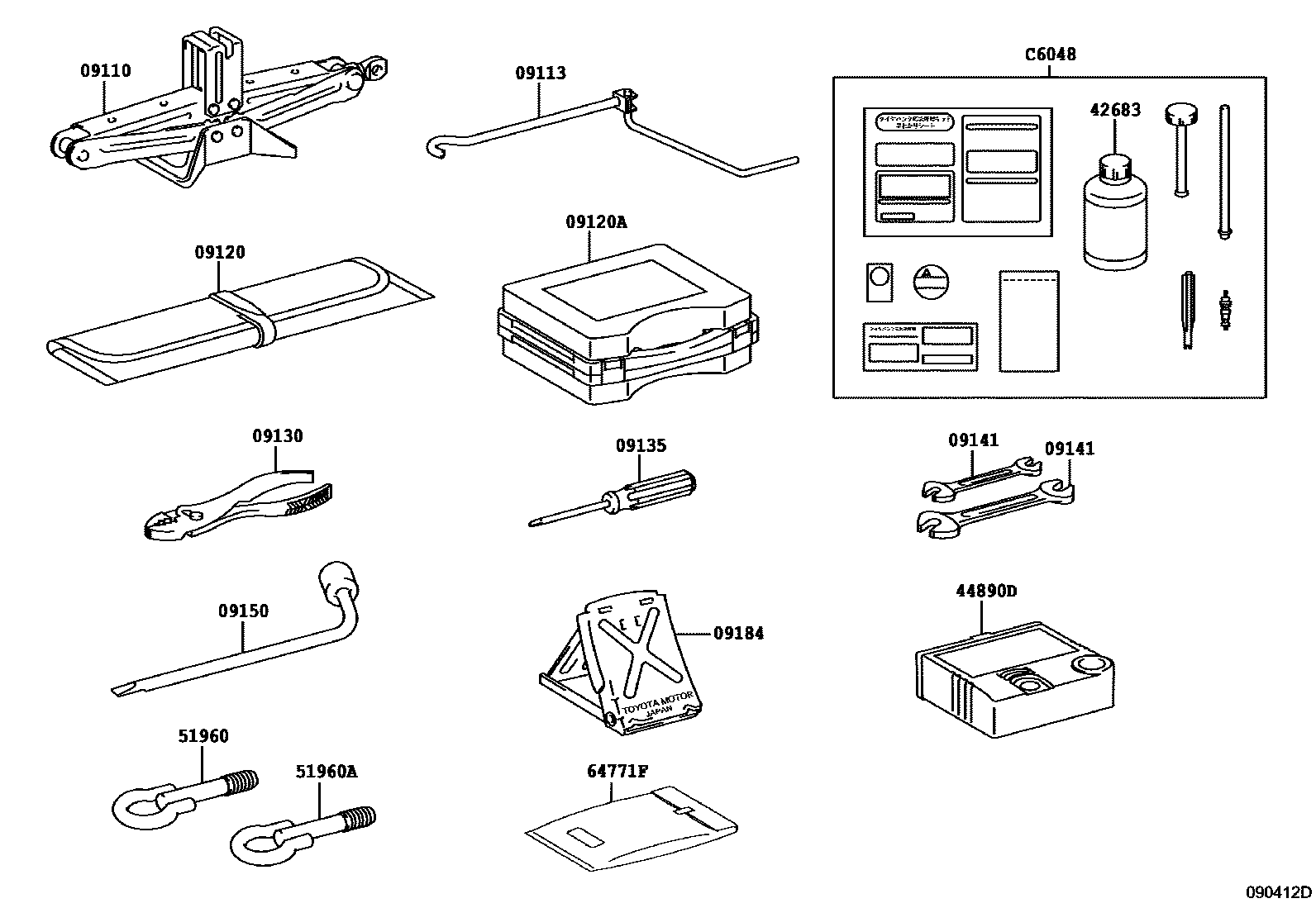

Parts diagram

09110JACK ASSY

main09110-28180i200606-200812

main09110-28180i200812-201103

main09111-28160i201601-201605

main09111-28190i201204-201512

main09111-28190i201103-201204

09113HANDLE, JACK

main09113-44010i200606-200706

main09113-44010i200606-200706

main09113-44010i200606-201605

09120BAG, TOOL

main09120-12011i200606-201003

main09120-28090i201004-201605

09120ACASE, TOOL

main09120-28060i200606-200912

09130PLIERS

main99913-11500i200812-201605

main99913-11500i200812-201605

main99913-11500i200812-201605

main99913-11500i200812-201605

main99913-11500i200606-200812

09135DRIVER, SCREW

main99915-10700i200812-201605

main99915-10700i200606-201605

main99915-10700i200606-201605

main99915-10700i200606-201605

main99915-10700i200606-200812

09141SPANNER

main99914-10810i200606-201605

main99914-10810i200606-201605

main99914-10810i200606-200812

main99914-10810i200606-201605

main99914-10810i200812-201605

main99914-11214i200606-201605

main99914-11214i200606-201605

main99914-11214i200606-200812

main99914-11214i200606-201605

main99914-11214i200812-201605

09150WRENCH, HUB NUT BOX

main09150-40010i200606-201605

09184STOPPER, WHEEL

main09184-00010i200606-200812

main09184-00010i200812-201605

42683SEAL, TIRE REPAIR

main42683-28010i200606-200812

main42683-28010i200812-200912

main42683-50010i200912-201208

main42683-50011i201208-201605

44890DCOMPRESSOR ASSY, AIR

main44890-52010i200606-200912

51960HOOK ASSY, FRONT

main51960-28030i200606-200706

main51960-28031i200707-201802

main51960-28050i201803

51960AHOOK ASSY, REAR

main51960-28030i200606-200706

main51960-28031i200707-201802

main51960-28050i201803

64771FCOVER, SPARE WHEEL

main64771-44010i201605

main64771-44010i200606-200812

main64771-44010i200812-201605

C6048REPAIR SET, TIRE

mainC604828020i200606-200912

mainC604850010i200912-201208

mainC604850011i201208-201605

15 parts on this diagram · 2 diagrams in section
