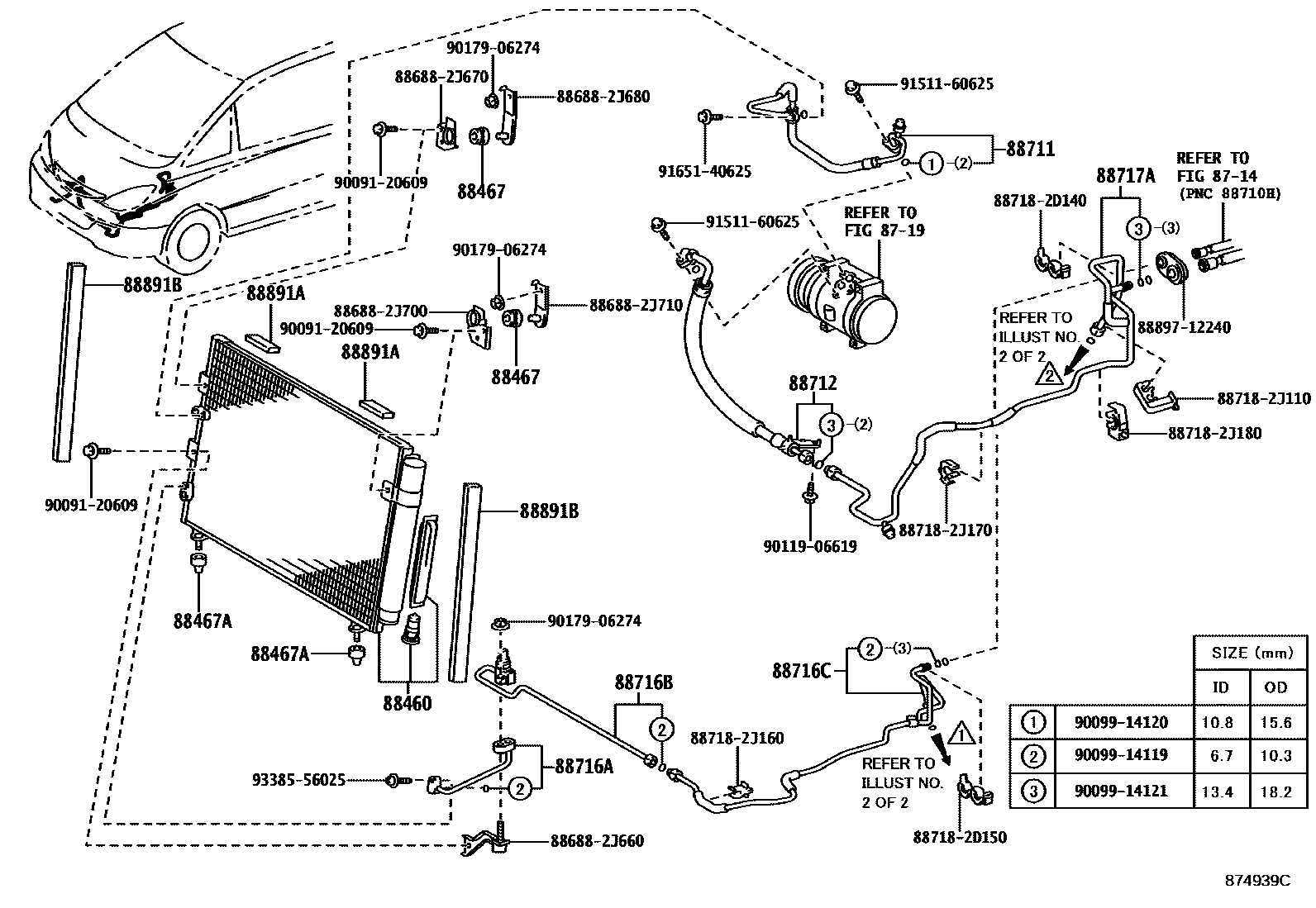

HEATING & AIR CONDITIONING - COOLER PIPING
8714
8719
88467CUSHION, COOLER CONDENSER, NO.1
88467ACUSHION, COOLER CONDENSER, NO.2
88711HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88712HOSE, COOLER REFRIGERANT SUCTION, NO.1
88716APIPE, COOLER REFRIGERANT LIQUID, A
88716BPIPE, COOLER REFRIGERANT LIQUID, B
88716CPIPE, COOLER REFRIGERANT LIQUID, C
88717APIPE, COOLER REFRIGERANT SUCTION, A
88891APACKING A (FOR COOLER)
88891BPACKING B (FOR COOLER)
886882J660BRACKET, COOLER DIAPHRAGM
main88688-2J660
886882J670BRACKET, COOLER DIAPHRAGM
main88688-2J670
886882J680BRACKET, COOLER DIAPHRAGM
main88688-2J680
886882J700BRACKET, COOLER DIAPHRAGM
main88688-2J700
886882J710BRACKET, COOLER DIAPHRAGM
main88688-2J710
887182D140PIPE, COOLER REFRIGERANT SUCTION, NO.2
main88718-2D140
887182D150PIPE, COOLER REFRIGERANT SUCTION, NO.2
main88718-2D150
887182J110PIPE, COOLER REFRIGERANT SUCTION, NO.2
main88718-2J110
887182J160PIPE, COOLER REFRIGERANT SUCTION, NO.2
main88718-2J160
887182J170PIPE, COOLER REFRIGERANT SUCTION, NO.2
main88718-2J170
887182J180PIPE, COOLER REFRIGERANT SUCTION, NO.2
main88718-2J180
8889712240VALVE, COOLER MAGNET
main88897-12240
9009120609
main90091-20609
9009914119
main90099-14119
9009914120
main90099-14120
9009914121
main90099-14121
9011906619
main90119-06619
9017906274
main90179-06274
9151160625
main91511-60625
9165140625
main91651-40625
9338556025
main93385-56025
34 parts on this diagram · 4 diagrams in section
