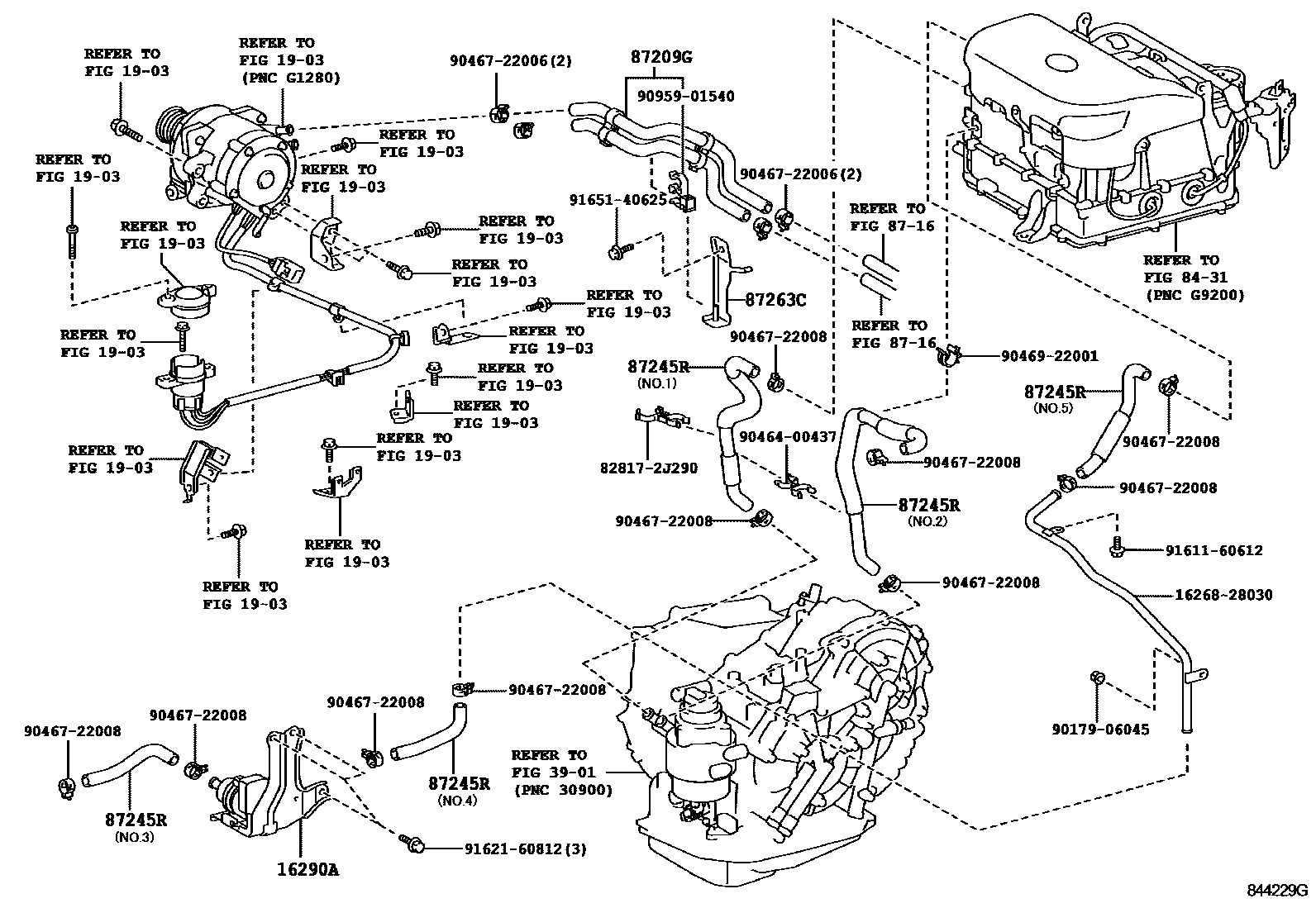

INVERTER COOLING

0001 1 0002 1

16290APUMP ASSY, WATER W/MOTOR & BRACKET

mainG902028010i2AZFXE..AHR10200105-200308

subG9020-28011

mainG902028020i2AZFXE..AHR10200308-200601

subG9020-28021

1903

3901

8431

8716

87209GHOSE SUB-ASSY, WATER, NO.1

main87209-28650iAHR10200105-200308

87245RHOSE, WATER

main87245-2J670iAHR10200105-200308

main87245-2J680iAHR10200105-200112

main87245-2J681iAHR10200112-200308

main87245-2J690iAHR10200105-200308

main87245-2J700iAHR10200105-200308

main87245-2J710iAHR10200105-200308

main87245-58110iAHR10200308

main87245-58130iAHR10200308

87263CBRACKET, WATER HOSE

main87263-28040iAHR10200105-200308

1626828030PIPE, WATER BY-PASS, NO.1

main16268-28030

828172J290PROTECTOR, WIRING HARNESS, NO.1

main82817-2J290

9017906045

main90179-06045

9046400437

main90464-00437

9046722006

main90467-22006

9046722008

main90467-22008

9046922001

main90469-22001

9095901540

main90959-01540

9161160612

main91611-60612

9162160812

main91621-60812

9165140625

main91651-40625

19 parts on this diagram · 2 diagrams in section
