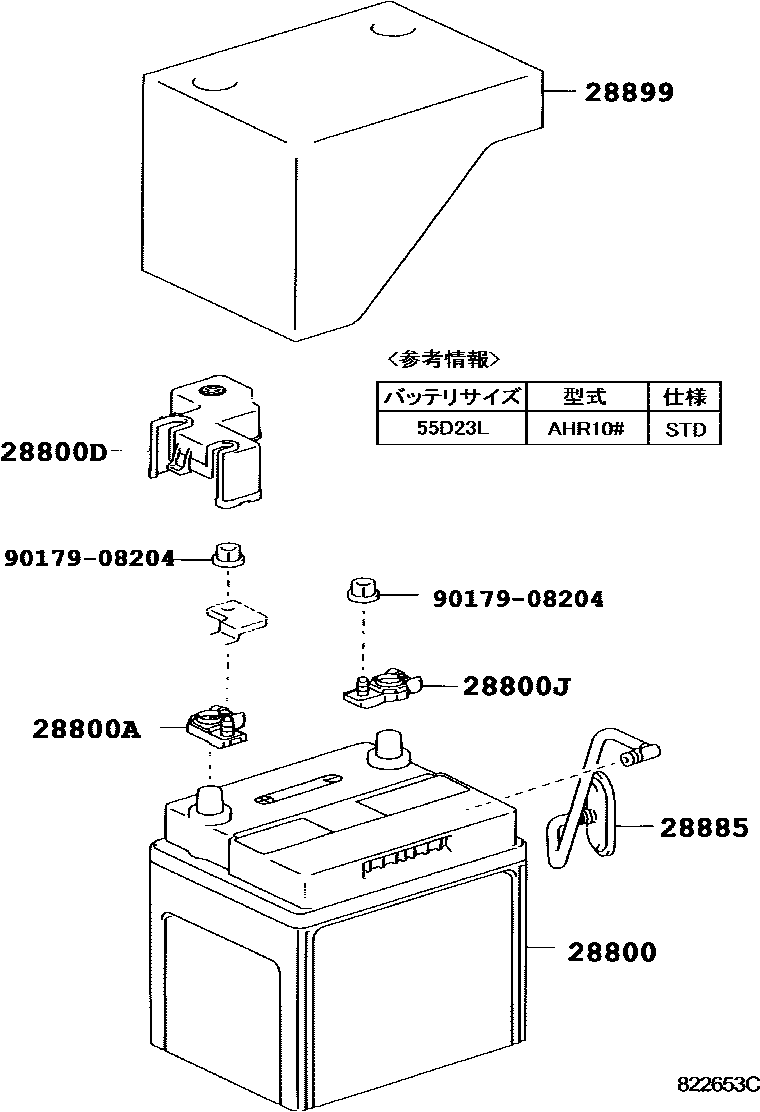

BATTERY & BATTERY CABLE

0001 112V �����- 0002 1HV �����- 0003 1HV �����- 0004 1HV �����- 0005 1HV �����- 0006 1HV �����-(����) 0007 1HV �����-(����)

28800BATTERY

main28800-28041i2AZFXE..AHR10200105-200305

sub28800-28042

main28800-28042i2AZFXE..AHR10200305-200306

sub28800-28043

main28800-28043i2AZFXE..AHR10200306-200601

sub28800-28070

28800ATERMINAL, BATTERY POSITIVE

main90982-05044i2AZFXE..AHR10¥1,390200105-200308

main90982-05058i2AZFXE..AHR10¥860200308

28800DCOVER, CONNECTOR(FOR BATTERY TERMINAL)

main82821-28180i2AZFXE..AHR10¥1,200200105-200308

28800JTERMINAL, BATTERY NEGATIVE

main90982-06024i2AZFXE..AHR10¥440200105-200308

28885HOSE, BATTERY ROOM VENTILATION

main28885-28021i2AZFXE..AHR10¥1,490200105-200308

28899INSULATOR, BATTERY

main28899-28010i2AZFXE..AHR10¥2,550200105-200308

9017908204

main90179-08204¥140

7 parts on this diagram · 7 diagrams in section
