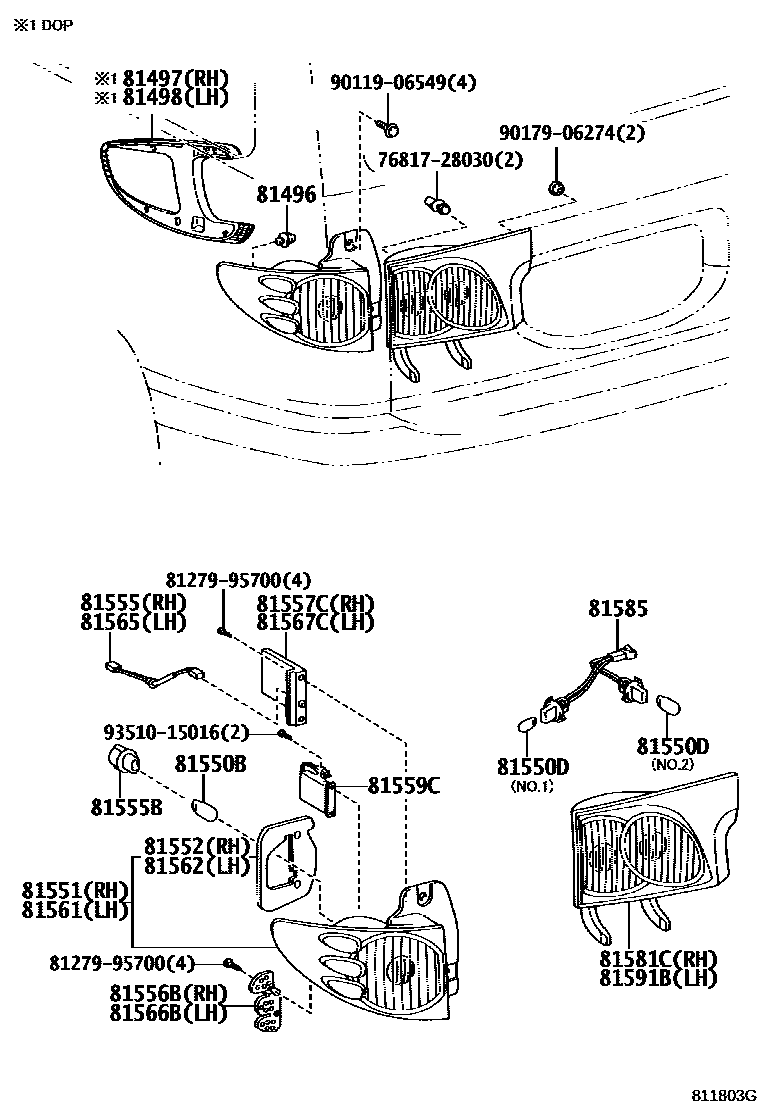

REAR COMBINATION LAMP
81496GUIDE, REAR COMBINATION LAMP
81497COVER, REAR COMBINATION LAMP, RH
WHITE PEARL CS.,062
WHITE PM.,042
SILVER ME.,1C0
ROSE ME.OP.,3P3
LT.GREEN ME.,6S0
BLUE ME.,8N0
DARK BLUE MC.,8P8
PALE BLUE M.M.,8R0
81498COVER, REAR COMBINATION LAMP, LH
WHITE PEARL CS.,062
WHITE PM.,042
SILVER ME.,1C0
ROSE ME.OP.,3P3
LT.GREEN ME.,6S0
BLUE ME.,8N0
DARK BLUE MC.,8P8
PALE BLUE M.M.,8R0
81550DBULB(FOR REAR COMBINATION LAMP)
81552GASKET, REAR COMBINATION LAMP LENS, RH
81555SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH
81555BSOCKET PLUG, NO.1
81559CINDICATOR, REAR COMBINATION LAMP OUTAGE
81562GASKET, REAR COMBINATION LAMP LENS, LH
81565SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH
81581CLENS AND BODY, REAR LAMP, RH
81585SOCKET & WIRE, REAR LAMP
81591BLENS AND BODY, REAR LAMP, LH
7681728030CLIP, BACK DOOR OUTSIDE GARNISH
main76817-28030
8127995700WASHER, SIDE TURN SIGNAL LAMP
main81279-95700
9011906549
main90119-06549
9017906274
main90179-06274
9351015016
main93510-15016
25 parts on this diagram · 3 diagrams in section
