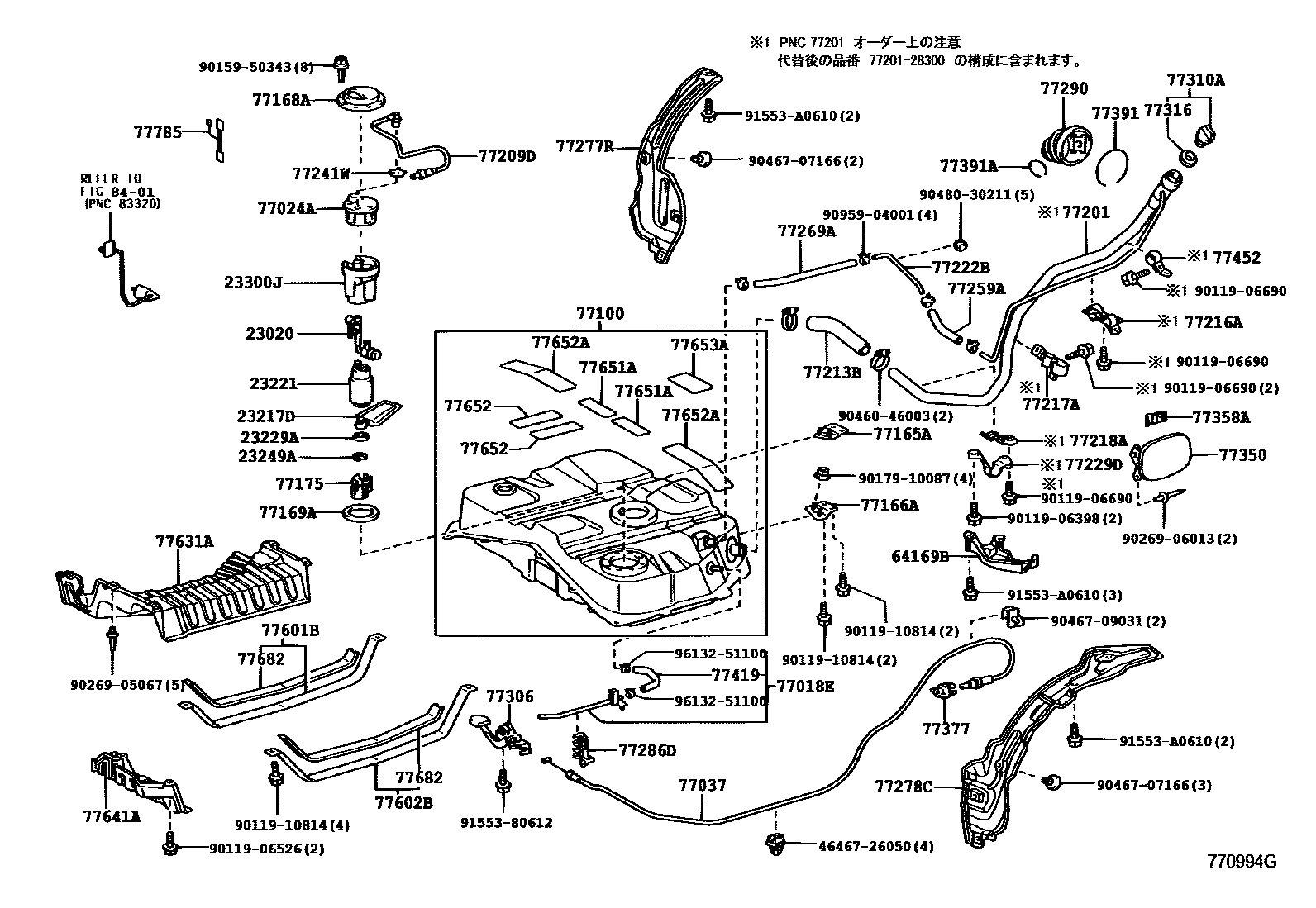

FUEL TANK & TUBE
23020REGULATOR ASSY, FUEL PRESSURE W/JET PUMP
23217DFILTER, FUEL PUMP
sub23217-46090
23221PUMP, FUEL
sub23221-20040
23229ACLIP(FOR FUEL PUMP FILTER)
23249ARUBBER, CUSHION(FOR FUEL PUMP)
23300JFILTER ASSY, FUEL
64169BPROTECTOR, FUEL INLET
77018ETUBE SUB-ASSY, FUEL TANK EVAPORATION VENT
77024APLATE SUB-ASSY, FUEL SUCTION
77165ABRACKET, FUEL TANK MOUNTING, REAR NO.2 RH
77166ABRACKET, FUEL TANK MOUNTING, REAR NO.2 LH
77168APLATE, FUEL TANK VENT TUBE SET
77169AGASKET, FUEL SUCTION TUBE SET
77175SUPPORT, FUEL SUCTION, NO.2
77201PIPE SUB-ASSY, FUEL TANK INLET
sub77201-28300
77209DTUBE SUB-ASSY, FUEL TANK MAIN
77213BHOSE, FUEL TANK TO FILLER PIPE
77216ASUPPORT, FUEL TANK FILLER PIPE, NO.1
77217ASUPPORT, FUEL TANK FILLER PIPE, NO.2
77218ASUPPORT, FUEL TANK FILLER PIPE, NO.3
77222BTUBE, FUEL TANK BREATHER, NO.2
77229DSUPPORT, FUEL TANK FILLER PIPE, NO.4
77241WCLIP, TUBE JOINT
77259AHOSE, FUEL(FOR BREATHER TUBE)
77269AHOSE, FUEL TANK BREATHER
77277RPROTECTOR, FUEL TANK FILLER PIPE
77278CPROTECTOR, FUEL TANK FILLER PIPE, NO.2
77286DCLAMP, FUEL TUBE, NO.2
77290SHIELD ASSY, FUEL TANK FILLER PIPE
77306LEVER SUB-ASSY, FUEL LID LOCK OPEN
77310ACAP ASSY, FUEL TANK
77316GASKET, FUEL TANK CAP
77350LID ASSY, FUEL FILLER OPENING
77358ASTOPPER, FUEL FILLER OPENING LID
77377RETAINER, FUEL FILLER OPENING LID LOCK
77391RING, FUEL INLET BOX
77391ARING, FUEL INLET BOX
77419HOSE, FUEL, NO.3
77452SUPPORT, FUEL INLET HOSE PROTECTOR, NO.1
77601BBAND SUB-ASSY, FUEL TANK, NO.1 RH
77602BBAND SUB-ASSY, FUEL TANK, NO.1 LH
77631APROTECTOR, FUEL TANK, LOWER CENTER
77641APROTECTOR, FUEL TANK, NO.1
77651ACUSHION, FUEL TANK, NO.1
77652CUSHION, FUEL TANK, NO.1
77652ACUSHION, FUEL TANK, NO.2
77653ACUSHION, FUEL TANK, NO.3
77682SEAT, FUEL TANK BAND, LH
77785HARNESS, FUEL PUMP
8401
4646726050CLAMP, CABLE
main46467-26050
9011906398
main90119-06398
9011906526
main90119-06526
9011906690
main90119-06690
9011910814
main90119-10814
9015950343
main90159-50343
9017910087
main90179-10087
9026905067
main90269-05067
9026906013
main90269-06013
9046046003
main90460-46003
9046707166
main90467-07166
9046709031
main90467-09031
9048030211
main90480-30211
9095904001
main90959-04001
9155380612
main91553-80612
91553A0610
main91553-A0610
9613251100
main96132-51100
69 parts on this diagram · 2 diagrams in section
