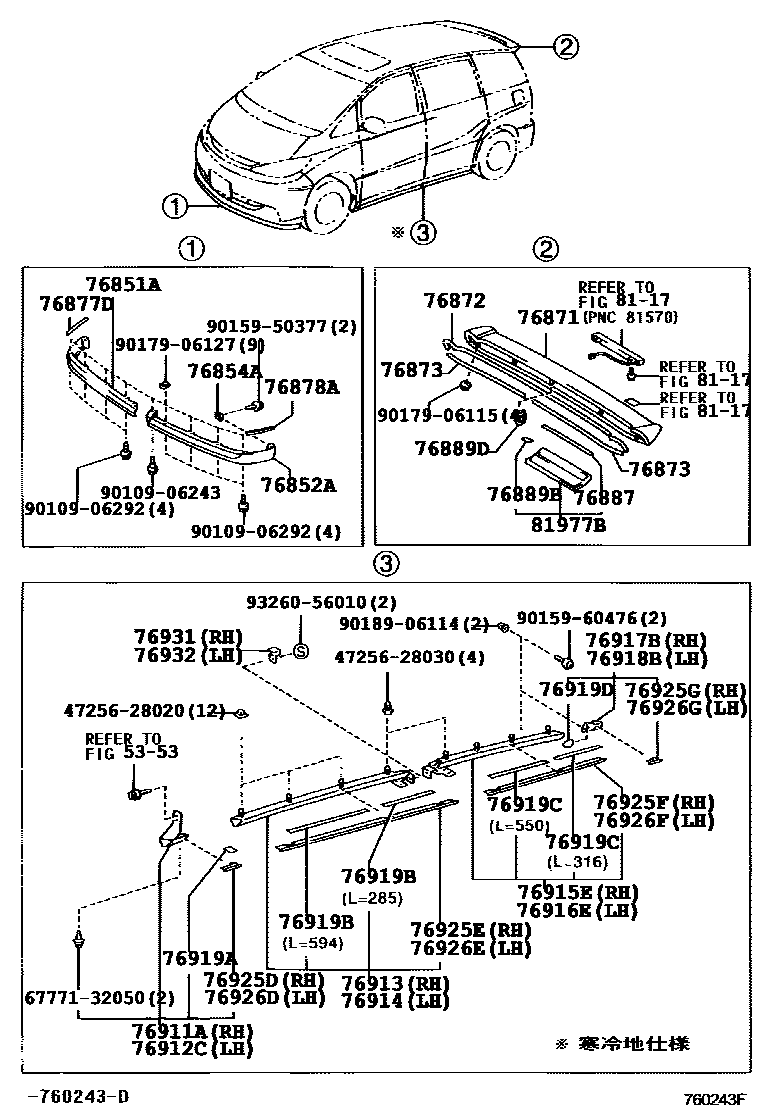

SPOILER & SIDE MUDGUARD
5353
76854ARETAINER, FRONT SPOILER, NO.2
76872PROTECTOR, REAR SPOILER, NO.1
76873PROTECTOR, REAR SPOILER, NO.2
76877DPROTECTOR, FRONT SPOILER SIDE, RH
76878APROTECTOR, FRONT SPOILER SIDE, LH
76887SEAL, REAR SPOILER
76889BSEAL, REAR SPOILER, NO.1
76889DCLIP, REAR SPOILER, NO.2
76911AMUDGUARD, FENDER PANEL, RH
76912CMUDGUARD, FENDER PANEL, LH
76913MUDGUARD, FRONT DOOR, RH
76914MUDGUARD, FRONT DOOR, LH
76915EMUDGUARD, SLIDE DOOR, RH
76916EMUDGUARD, SLIDE DOOR, LH
76917BMUDGUARD, QUARTER PANEL, RH
76918BMUDGUARD, QUARTER PANEL, LH
76919APAD, SIDE MUDGUARD
76919DPAD, SIDE MUDGUARD
76925DPROTECTOR, SIDE MUDGUARD, RH
76925EPROTECTOR, SIDE MUDGUARD, FRONT RH
76925FPROTECTOR, SIDE MUDGUARD, RH
76925GPROTECTOR, SIDE MUDGUARD, RH
76926DPROTECTOR, SIDE MUDGUARD, LH
76926EPROTECTOR, SIDE MUDGUARD, FRONT LH
76926FPROTECTOR, SIDE MUDGUARD, LH
76926GPROTECTOR, SIDE MUDGUARD, LH
76931RETAINER, SIDE MUDGUARD, NO.3
76932RETAINER, SIDE MUDGUARD, NO.4
8117
4725628020GROMMET, CAP
main47256-28020
4725628030GROMMET, CAP
main47256-28030
6777132050WEATHERSTRIP, BACK DOOR TRIM, RH
main67771-32050
9010906243
main90109-06243
9010906292
main90109-06292
9015950377
main90159-50377
9015960476
main90159-60476
9017906115
main90179-06115
9017906127
main90179-06127
9018906114
main90189-06114
9326056010
main93260-56010
47 parts on this diagram · 2 diagrams in section
