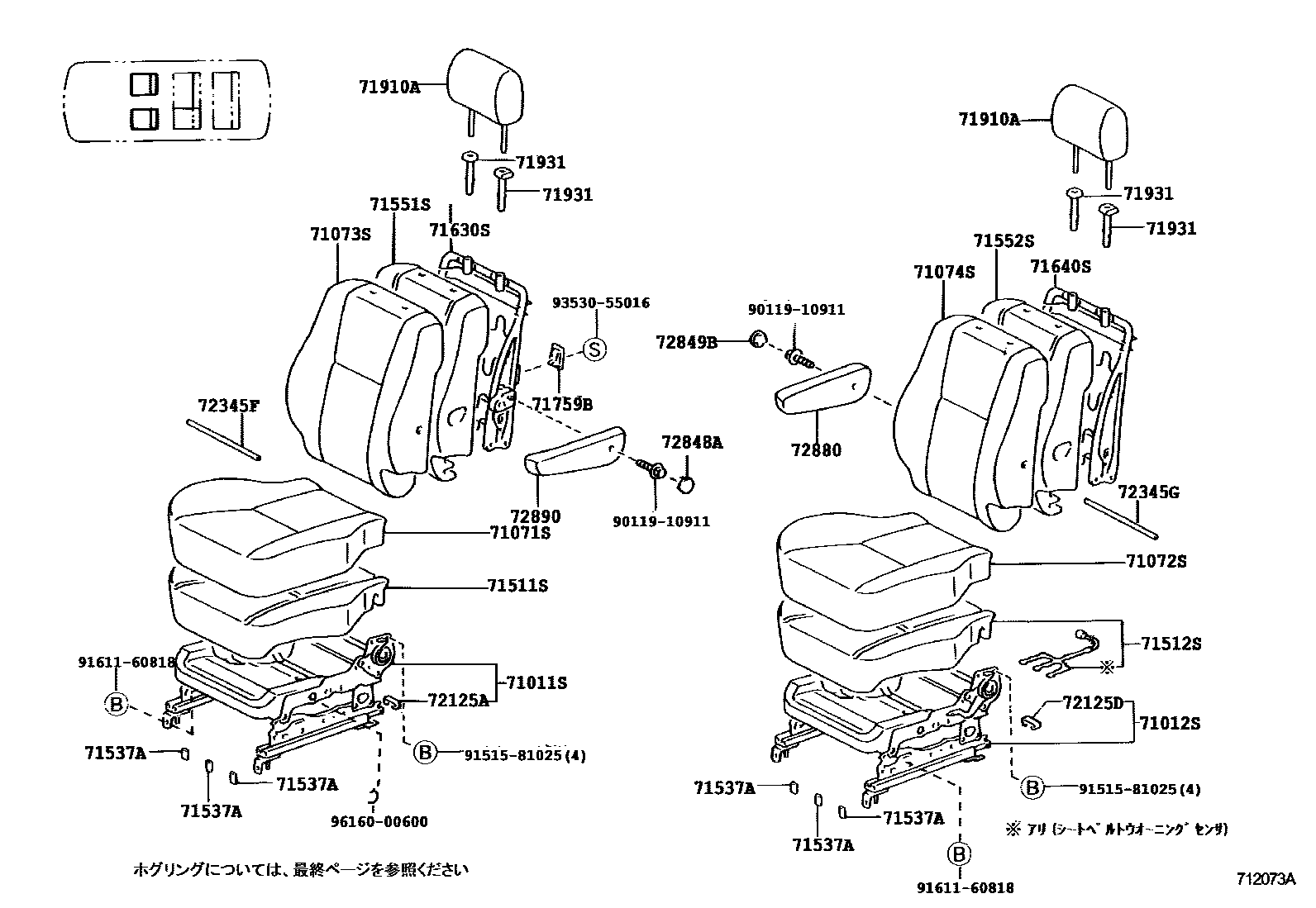

SEAT & SEAT TRACK
71011SFRAME SUB-ASSY, FRONT SEAT CUSHION, RH
71012SFRAME SUB-ASSY, FRONT SEAT CUSHION, LH
71071SCOVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
IVORY,TRIM0#
MEDIUM GRAY,TRIM1#
71072SCOVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)
IVORY,TRIM0#
MEDIUM GRAY,TRIM1#
71073SCOVER, FRONT SEATBACK, RH(FOR SEPARATE TYPE)
IVORY,TRIM0#
MEDIUM GRAY,TRIM1#
71074SCOVER, FRONT SEATBACK, LH(FOR SEPARATE TYPE)
IVORY,TRIM0#
MEDIUM GRAY,TRIM1#
71511SPAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
71512SPAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)
71537APROTECTOR, FRONT SEAT CUSHION
71551SPAD, FRONT SEATBACK, RH(FOR SEPARATE TYPE)
71552SPAD, FRONT SEATBACK, LH(FOR SEPARATE TYPE)
71630SSPRING ASSY, FRONT SEATBACK, RH(FOR SEPARATE TYPE)
71640SSPRING ASSY, FRONT SEATBACK, LH(FOR SEPARATE TYPE)
71759BHOOK, FRONT SEATBACK
71910AHEADREST ASSY, FRONT SEAT
IVORY,TRIM0#
MEDIUM GRAY,TRIM1#
71931SUPPORT, FRONT SEAT HEADREST
72125ACOVER, SEAT TRACK, UPPER REAR
72125DCOVER, SEAT TRACK, UPPER REAR NO.2
72345FPIPE, RECLINING CONNECTING, RH
72345GPIPE, RECLINING CONNECTING, LH
72848ACAP, SEAT ARMREST, NO.1
72849BCAP, SEAT ARMREST, NO.1
72880ARMREST ASSY, SEAT, C RH
MEDIUM GRAY,TRIM1#
IVORY,TRIM0#
72890ARMREST ASSY, SEAT, C LH
MEDIUM GRAY,TRIM1#
IVORY,TRIM0#
9011910911
9151581025
9161160818
9353055016
9616000600
29 parts on this diagram · 10 diagrams in section
